05이동 중 배경 격자에 달라붙는 스냅

<main class="stage">
<div class="scene is-demo" id="scene">
  <div class="gridBg" aria-hidden="true"></div>
  <div class="frame" id="frame">
    <div class="guideDot" id="guideDot" aria-hidden="true"></div>
    <div class="draggable" id="draggable" tabindex="0" aria-label="드래그하면 배경 격자 교차점에 달라붙는 오브젝트"></div>
  </div>
  <div class="readout" id="readout" aria-hidden="true"><span id="rs">free</span></div>
</div>
</main>

@use "../../../../site/static/demo-tokens" as *;

// 변수 3개
$duration: $dur-enter;
$easing: $ease-out;
$color: $subject-mint;

// 계산 겹: index.html 의 nearestGrid()/applyPosition() 이 오브젝트 모서리 좌표를 CELL_PX 배수로
// 반올림해 거리를 재고, CORNER_SNAP_RADIUS_PX 안이면 스냅 좌표를, 아니면 원 좌표를 matrix() 로 굳힌다.
@include stage($stage-ink);

.scene {
  position: relative;
  width: 320px;
  height: 180px;
  border-radius: $r-card;
  overflow: hidden;
  box-shadow: $shadow-raised;
  background: linear-gradient(160deg, #201c2c, $stage-ink 70%);
}

.gridBg {
  position: absolute;
  inset: 0;
  background-image: radial-gradient(rgba($subject-cream, .16) 1.2px, transparent 1.2px);
  background-size: 20px 20px;
}

.frame {
  position: absolute;
  left: 50%;
  top: 50%;
  width: 184px;
  height: 108px;
  margin-left: -92px;
  margin-top: -54px;
}

.draggable {
  position: absolute;
  width: 44px;
  height: 32px;
  border-radius: $r-sm;
  background: linear-gradient(135deg, $subject-mint, $subject-sky);
  box-shadow: $shadow-press;
  cursor: grab;
  touch-action: none;
  will-change: transform;

  &:active, &.isSnapped { cursor: grabbing; }
  &.isSnapped { box-shadow: 0 0 0 2px $color, $shadow-press; }
  &:focus-visible { outline: 2px solid $color; outline-offset: 3px; }
}

.guideDot {
  position: absolute;
  width: 8px;
  height: 8px;
  margin: -4px;
  border-radius: $r-pill;
  background: $color;
  opacity: 0;
  will-change: transform;

  &.isActive { opacity: .85; }
}

.readout {
  position: absolute;
  left: $sp-3;
  bottom: $sp-3;
  padding: $sp-1 $sp-2;
  border-radius: $r-pill;
  background: rgba(#050409, .5);
  color: rgba($subject-cream, .82);
  font-size: 10px;
  text-transform: uppercase;
  letter-spacing: .04em;
}

@media (max-width: 340px) {
  .scene { width: 220px; height: 124px; }
  .frame { width: 128px; height: 76px; margin-left: -64px; margin-top: -38px; }
  .draggable { width: 34px; height: 24px; }
  .readout { font-size: 9px; }
}

@media (prefers-reduced-motion: reduce) {
  // 실사용 경로 적용 — 드래그·키보드는 index.html 이 트윈 없이 즉시 반영한다.
  // scss 만: 스냅 표시(box-shadow)·아웃라인 전환만 꺼서 잔여 트랜지션을 없앤다.
  .draggable, .guideDot { transition: none; }
}

html, body {
  margin: 0;
  overflow: hidden;
}

.stage {
  box-sizing: border-box;
  min-height: 100vh;
  display: grid;
  place-items: center;
  margin: 0;
  background: #17141a;
  font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
  padding: clamp(8px, 4vw, 24px);
}

.scene {
  position: relative;
  width: 320px;
  height: 180px;
  border-radius: 16px;
  overflow: hidden;
  box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
  background: linear-gradient(160deg, #201c2c, #17141a 70%);
}

.gridBg {
  position: absolute;
  inset: 0;
  background-image: radial-gradient(rgba(255, 247, 230, 0.16) 1.2px, transparent 1.2px);
  background-size: 20px 20px;
}

.frame {
  position: absolute;
  left: 50%;
  top: 50%;
  width: 184px;
  height: 108px;
  margin-left: -92px;
  margin-top: -54px;
}

.draggable {
  position: absolute;
  width: 44px;
  height: 32px;
  border-radius: 8px;
  background: linear-gradient(135deg, #4cd4a6, #6ec8ff);
  box-shadow: 0 6px 12px rgba(23, 20, 26, 0.32);
  cursor: grab;
  touch-action: none;
  will-change: transform;
}
.draggable:active, .draggable.isSnapped {
  cursor: grabbing;
}
.draggable.isSnapped {
  box-shadow: 0 0 0 2px #4cd4a6, 0 6px 12px rgba(23, 20, 26, 0.32);
}
.draggable:focus-visible {
  outline: 2px solid #4cd4a6;
  outline-offset: 3px;
}

.guideDot {
  position: absolute;
  width: 8px;
  height: 8px;
  margin: -4px;
  border-radius: 999px;
  background: #4cd4a6;
  opacity: 0;
  will-change: transform;
}
.guideDot.isActive {
  opacity: 0.85;
}

.readout {
  position: absolute;
  left: 12px;
  bottom: 12px;
  padding: 4px 8px;
  border-radius: 999px;
  background: rgba(5, 4, 9, 0.5);
  color: rgba(255, 247, 230, 0.82);
  font-size: 10px;
  text-transform: uppercase;
  letter-spacing: 0.04em;
}

@media (max-width: 340px) {
  .scene {
    width: 220px;
    height: 124px;
  }
  .frame {
    width: 128px;
    height: 76px;
    margin-left: -64px;
    margin-top: -38px;
  }
  .draggable {
    width: 34px;
    height: 24px;
  }
  .readout {
    font-size: 9px;
  }
}
@media (prefers-reduced-motion: reduce) {
  .draggable, .guideDot {
    transition: none;
  }
}

(function () {
  var CELL_PX = 20;
  var CORNER_SNAP_RADIUS_PX = 6; // 변형 05 가 16 으로 넓힌다 — 오브젝트 모서리가 격자 교차점에 붙는 자석 반경
  var WAYPOINTS = [
    { x: 20, y: 20 }, { x: 140, y: 60 }, { x: 63, y: 96 }, { x: 20, y: 20 }
  ];
  var HOP_MS = 560;
  var HOLD_MS = 320;

  var scene = document.getElementById('scene');
  var frame = document.getElementById('frame');
  var draggable = document.getElementById('draggable');
  var guideDot = document.getElementById('guideDot');
  var rs = document.getElementById('rs');
  var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;

  var frameW = 184, frameH = 108;
  var tx = 20, ty = 20;
  var dragging = false;
  var startX = 0, startY = 0, originTx = 0, originTy = 0;
  var timers = [];

  function clamp(v, lo, hi) { return Math.min(hi, Math.max(lo, v)); }
  function easeOutCubic(t) { return 1 - Math.pow(1 - t, 3); }

  // 오브젝트 모서리(좌상단)를 가장 가까운 격자 교차점(CELL_PX 배수)과 비교해, 그 거리가
  // CORNER_SNAP_RADIUS_PX 안이면 손을 놓기 전에도 교차점으로 스냅한다 — 다른 오브젝트가 아니라
  // 고정된 배경 격자 한 가지에만 붙는다(250 의 panel-snap-guides 와 다른 시연).
  function nearestGrid(v) { return Math.round(v / CELL_PX) * CELL_PX; }

  function applyPosition(rawX, rawY) {
    var nx = nearestGrid(rawX);
    var ny = nearestGrid(rawY);
    var d = Math.hypot(rawX - nx, rawY - ny);
    var snapped = d <= CORNER_SNAP_RADIUS_PX;
    tx = clamp(snapped ? nx : rawX, 0, frameW - 44);
    ty = clamp(snapped ? ny : rawY, 0, frameH - 32);
    draggable.style.transform = 'matrix(1,0,0,1,' + tx.toFixed(1) + ',' + ty.toFixed(1) + ')';
    if (snapped) {
      guideDot.style.transform = 'matrix(1,0,0,1,' + nx.toFixed(1) + ',' + ny.toFixed(1) + ')';
      guideDot.classList.add('isActive');
    } else {
      guideDot.classList.remove('isActive');
    }
    rs.textContent = snapped ? 'snap' : 'free';
    draggable.classList.toggle('isSnapped', snapped);
  }

  function human() {
    if (scene.classList.contains('is-demo')) {
      scene.classList.remove('is-demo');
      timers.forEach(function (t) { clearTimeout(t); clearInterval(t); });
      timers = [];
    }
  }

  draggable.addEventListener('pointerdown', function (e) {
    human();
    dragging = true;
    draggable.setPointerCapture(e.pointerId);
    startX = e.clientX; startY = e.clientY;
    originTx = tx; originTy = ty;
  });
  draggable.addEventListener('pointermove', function (e) {
    if (!dragging) return;
    applyPosition(originTx + (e.clientX - startX), originTy + (e.clientY - startY));
  });
  function end(e) {
    if (!dragging) return;
    dragging = false;
    try { draggable.releasePointerCapture(e.pointerId); } catch (err) {}
  }
  draggable.addEventListener('pointerup', end);
  draggable.addEventListener('pointercancel', end);
  draggable.addEventListener('keydown', function (e) {
    var step = CELL_PX;
    if (e.key === 'ArrowLeft') { human(); applyPosition(tx - step, ty); e.preventDefault(); }
    else if (e.key === 'ArrowRight') { human(); applyPosition(tx + step, ty); e.preventDefault(); }
    else if (e.key === 'ArrowUp') { human(); applyPosition(tx, ty - step); e.preventDefault(); }
    else if (e.key === 'ArrowDown') { human(); applyPosition(tx, ty + step); e.preventDefault(); }
  });

  // reduce: 실사용 경로 적용 — 드래그·키보드는 위에서 같은 applyPosition() 으로 즉시 반영한다.
  // 아래 hopTo()·cycle() 은 시연 게이트만 — reduce 에서는 돌지 않는다.
  function hopTo(target, onDone) {
    var fromX = tx, fromY = ty;
    var start = performance.now();
    function frame2(now) {
      if (!scene.classList.contains('is-demo')) return;
      var p = clamp((now - start) / HOP_MS, 0, 1);
      var e = easeOutCubic(p);
      applyPosition(fromX + (target.x - fromX) * e, fromY + (target.y - fromY) * e);
      if (p < 1) requestAnimationFrame(frame2);
      else if (onDone) onDone();
    }
    requestAnimationFrame(frame2);
  }

  function cycle(i) {
    if (!scene.classList.contains('is-demo')) return;
    var target = WAYPOINTS[i % WAYPOINTS.length];
    hopTo(target, function () {
      timers.push(setTimeout(function () { cycle(i + 1); }, HOLD_MS));
    });
  }

  applyPosition(tx, ty);
  if (!reduce) {
    cycle(1);
  }
})();

import { useEffect, useRef } from 'react';
import styles from './XfGridSnap.module.scss';

const CELL_PX = 20;
const CORNER_SNAP_RADIUS_PX = 6; // 변형 05 가 16 으로 넓힌다 — 오브젝트 모서리가 격자 교차점에 붙는 자석 반경
const WAYPOINTS = [
  { x: 20, y: 20 }, { x: 140, y: 60 }, { x: 63, y: 96 }, { x: 20, y: 20 }
];
const HOP_MS = 560;
const HOLD_MS = 320;

export default function XfGridSnap() {
  const sceneRef = useRef<HTMLDivElement>(null);

  useEffect(() => {
    const scene0 = sceneRef.current;
    if (!scene0) return undefined;
    const scene = scene0;
    const draggable0 = scene.querySelector<HTMLDivElement>('.' + styles.draggable);
    const guideDot0 = scene.querySelector<HTMLDivElement>('.' + styles.guideDot);
    const rs0 = scene.querySelector<HTMLSpanElement>('#rs');
    if (!draggable0 || !guideDot0 || !rs0) return undefined;
    const draggable = draggable0;
    const guideDot = guideDot0;
    const rs = rs0;

    const reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;

    const frameW = 184, frameH = 108;
    let tx = 20, ty = 20;
    let dragging = false;
    let startX = 0, startY = 0, originTx = 0, originTy = 0;
    let rafId = 0;
    let timers: number[] = [];

    function clamp(v: number, lo: number, hi: number) { return Math.min(hi, Math.max(lo, v)); }
    function easeOutCubic(t: number) { return 1 - Math.pow(1 - t, 3); }

    // 오브젝트 모서리(좌상단)를 가장 가까운 격자 교차점(CELL_PX 배수)과 비교해, 그 거리가
    // CORNER_SNAP_RADIUS_PX 안이면 손을 놓기 전에도 교차점으로 스냅한다 — 다른 오브젝트가 아니라
    // 고정된 배경 격자 한 가지에만 붙는다(250 의 panel-snap-guides 와 다른 시연).
    function nearestGrid(v: number) { return Math.round(v / CELL_PX) * CELL_PX; }

    function applyPosition(rawX: number, rawY: number) {
      const nx = nearestGrid(rawX);
      const ny = nearestGrid(rawY);
      const d = Math.hypot(rawX - nx, rawY - ny);
      const snapped = d <= CORNER_SNAP_RADIUS_PX;
      tx = clamp(snapped ? nx : rawX, 0, frameW - 44);
      ty = clamp(snapped ? ny : rawY, 0, frameH - 32);
      draggable.style.transform = 'matrix(1,0,0,1,' + tx.toFixed(1) + ',' + ty.toFixed(1) + ')';
      if (snapped) {
        guideDot.style.transform = 'matrix(1,0,0,1,' + nx.toFixed(1) + ',' + ny.toFixed(1) + ')';
        guideDot.classList.add(styles.isActive);
      } else {
        guideDot.classList.remove(styles.isActive);
      }
      rs.textContent = snapped ? 'snap' : 'free';
      draggable.classList.toggle(styles.isSnapped, snapped);
    }

    function human() {
      if (scene.classList.contains(styles['is-demo'])) {
        scene.classList.remove(styles['is-demo']);
        timers.forEach((t) => window.clearTimeout(t));
        timers = [];
      }
    }

    function onPointerDown(e: PointerEvent) {
      human();
      dragging = true;
      draggable.setPointerCapture(e.pointerId);
      startX = e.clientX; startY = e.clientY;
      originTx = tx; originTy = ty;
    }
    function onPointerMove(e: PointerEvent) {
      if (!dragging) return;
      applyPosition(originTx + (e.clientX - startX), originTy + (e.clientY - startY));
    }
    function endDrag(e: PointerEvent) {
      if (!dragging) return;
      dragging = false;
      try { draggable.releasePointerCapture(e.pointerId); } catch { /* 캡처가 이미 풀린 경우 */ }
    }
    function onKeyDown(e: KeyboardEvent) {
      const step = CELL_PX;
      if (e.key === 'ArrowLeft') { human(); applyPosition(tx - step, ty); e.preventDefault(); }
      else if (e.key === 'ArrowRight') { human(); applyPosition(tx + step, ty); e.preventDefault(); }
      else if (e.key === 'ArrowUp') { human(); applyPosition(tx, ty - step); e.preventDefault(); }
      else if (e.key === 'ArrowDown') { human(); applyPosition(tx, ty + step); e.preventDefault(); }
    }

    draggable.addEventListener('pointerdown', onPointerDown);
    draggable.addEventListener('pointermove', onPointerMove);
    draggable.addEventListener('pointerup', endDrag);
    draggable.addEventListener('pointercancel', endDrag);
    draggable.addEventListener('keydown', onKeyDown);

    // reduce: 실사용 경로 적용 — 드래그·키보드는 위에서 같은 applyPosition() 으로 즉시 반영한다.
    // 아래 hopTo()·cycle() 은 시연 게이트만 — reduce 에서는 돌지 않는다.
    function hopTo(target: { x: number; y: number }, onDone: () => void) {
      const fromX = tx, fromY = ty;
      const start = performance.now();
      function frame(now: number) {
        if (!scene.classList.contains(styles['is-demo'])) return;
        const p = clamp((now - start) / HOP_MS, 0, 1);
        const e = easeOutCubic(p);
        applyPosition(fromX + (target.x - fromX) * e, fromY + (target.y - fromY) * e);
        if (p < 1) rafId = requestAnimationFrame(frame);
        else onDone();
      }
      rafId = requestAnimationFrame(frame);
    }

    function cycle(i: number) {
      if (!scene.classList.contains(styles['is-demo'])) return;
      const target = WAYPOINTS[i % WAYPOINTS.length];
      hopTo(target, () => {
        timers.push(window.setTimeout(() => cycle(i + 1), HOLD_MS));
      });
    }

    applyPosition(tx, ty);
    if (!reduce) {
      cycle(1);
    }

    return () => {
      draggable.removeEventListener('pointerdown', onPointerDown);
      draggable.removeEventListener('pointermove', onPointerMove);
      draggable.removeEventListener('pointerup', endDrag);
      draggable.removeEventListener('pointercancel', endDrag);
      draggable.removeEventListener('keydown', onKeyDown);
      timers.forEach((t) => window.clearTimeout(t));
      cancelAnimationFrame(rafId);
    };
  }, []);

  return (
    <main className={styles.stage}>
      <div className={styles.scene + ' ' + styles['is-demo']} ref={sceneRef}>
        <div className={styles.gridBg} aria-hidden="true"></div>
        <div className={styles.frame}>
          <div className={styles.guideDot} aria-hidden="true"></div>
          <div
            className={styles.draggable}
            tabIndex={0}

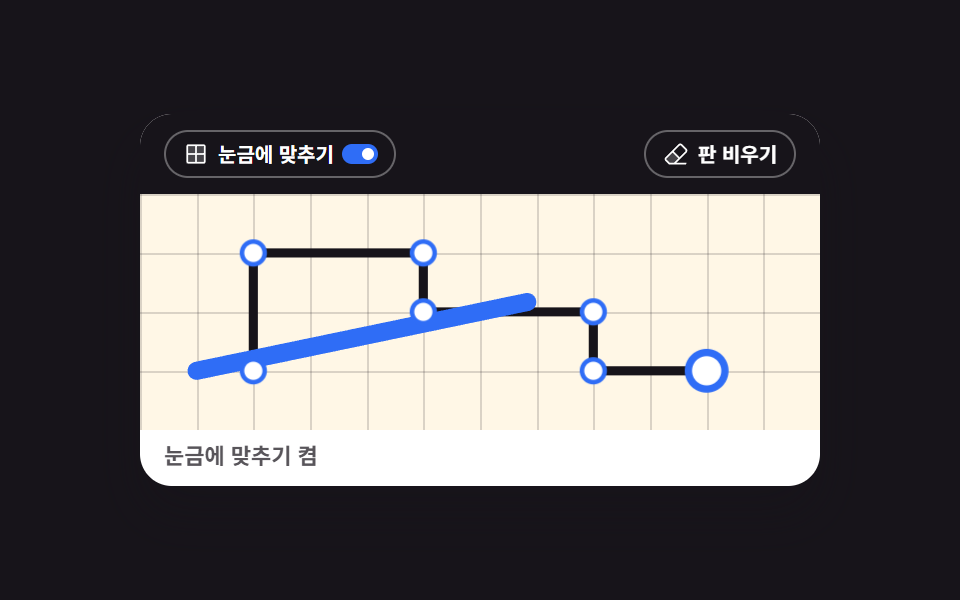

            aria-label="드래그하면 배경 격자 교차점에 달라붙는 오브젝트"
          ></div>
        </div>
        <div className={styles.readout} aria-hidden="true"><span id="rs">free</span></div>
      </div>
    </main>
  );
}
