03위상 물결 마커 — 항목마다 위상 값을 밀어 불릿이 물결치는 방식
불릿의 오르내림이 항목 번호만큼 위상 값을 밀어 계산되어, 목록이 한 줄의 물결로 흐릅니다.
쓰임음원 트랙 목록, 강조 섹션 리스트
Math.sintranslateY$subject-blue-deep

<main class="stage">
<div class="wrap is-demo" id="wrap">
<ul class="wave-list" id="list">
<li style="--i:0">트랙 01 · 새벽 산책</li>
<li style="--i:1">트랙 02 · 창가 자리</li>
<li style="--i:2">트랙 03 · 늦은 우산</li>
<li style="--i:3">트랙 04 · 첫눈</li>
<li style="--i:4">트랙 05 · 정거장</li>
</ul>
<button class="speed" id="speed" type="button">물결 속도 전환</button>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 계산 겹은 index.html 의 사인 함수 위상 이동(sin(t*speed + i*phase)) 에 있다 — 여기는 불릿 모양·판만 맡는다.
// ::marker 는 transform(translateY) 을 지원하지 않아 물결을 만들 수 없다 — list-style:none 으로 지우고
// ::before 로 대체한 불릿에 커스텀 프로퍼티 --y 를 실어 세로로 흔든다.
@include stage($stage-orange);
.wave-list {
list-style: none;
margin: 0;
padding: 0;
display: flex;
flex-direction: column;
gap: $sp-3;
width: 240px;
}
.wave-list li {
position: relative;
padding-left: 28px;
min-height: 20px;
display: flex;
align-items: center;
color: $subject-ink;
font-size: 12px;
font-weight: 600;
}
.wave-list li::before {
content: '';
position: absolute;
left: 0;
top: 50%;
width: 12px;
height: 12px;
margin-top: -6px;
border-radius: 50%;
background: $subject-blue-deep;
transform: translateY(var(--y, 0px));
}
.speed {
appearance: none;
border: none;
margin-top: $sp-4;
padding: $sp-2 $sp-4;
border-radius: $r-control;
background: $subject-ink;
color: $subject-cream;
font-size: 12px;
font-weight: 600;
cursor: pointer;
transition: transform $dur-instant $ease-out;
&:hover { transform: translateY(-1px); }
&:active { transform: scale(.96); }
&:focus-visible { outline: 2px solid $subject-blue-light; outline-offset: 2px; }
}
@media (max-width: 340px) {
.wave-list { width: 190px; gap: $sp-1; }
.wave-list li { font-size: 11px; min-height: 16px; padding-left: 20px; }
.wave-list li::before { width: 10px; height: 10px; margin-top: -5px; }
.speed { margin-top: $sp-2; padding: $sp-1 $sp-3; }
}
@media (prefers-reduced-motion: reduce) {
.wave-list li::before { transition: none; }
.speed { transition: none; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #ff4d1f;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.wave-list {
list-style: none;
margin: 0;
padding: 0;
display: flex;
flex-direction: column;
gap: 12px;
width: 240px;
}
.wave-list li {
position: relative;
padding-left: 28px;
min-height: 20px;
display: flex;
align-items: center;
color: #17141a;
font-size: 12px;
font-weight: 600;
}
.wave-list li::before {
content: "";
position: absolute;
left: 0;
top: 50%;
width: 12px;
height: 12px;
margin-top: -6px;
border-radius: 50%;
background: #0a4fe8;
transform: translateY(var(--y, 0px));
}
.speed {
appearance: none;
border: none;
margin-top: 16px;
padding: 8px 16px;
border-radius: 12px;
background: #17141a;
color: #fff7e6;
font-size: 12px;
font-weight: 600;
cursor: pointer;
transition: transform 140ms ease-out;
}
.speed:hover {
transform: translateY(-1px);
}
.speed:active {
transform: scale(0.96);
}
.speed:focus-visible {
outline: 2px solid #5b8cf8;
outline-offset: 2px;
}
@media (max-width: 340px) {
.wave-list {
width: 190px;
gap: 4px;
}
.wave-list li {
font-size: 11px;
min-height: 16px;
padding-left: 20px;
}
.wave-list li::before {
width: 10px;
height: 10px;
margin-top: -5px;
}
.speed {
margin-top: 8px;
padding: 4px 12px;
}
}
@media (prefers-reduced-motion: reduce) {
.wave-list li::before {
transition: none;
}
.speed {
transition: none;
}
}(function () {
var WAVE_PHASE_DEG = 40; // 항목 사이 위상차 — 변형 03 목표: 40 → 80
var AMPLITUDE_PX = 6;
var SPEEDS = [1, 2, 0.5]; // 배속 프리셋
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var wrap = document.getElementById('wrap');
var list = document.getElementById('list');
var items = Array.prototype.slice.call(list.querySelectorAll('li'));
var button = document.getElementById('speed');
var isDemo = true;
var speedIdx = 0;
var PHASE_RAD = WAVE_PHASE_DEG * Math.PI / 180;
// 계산 겹: 각 불릿의 세로 위치는 사인 함수에 항목 번호만큼 위상을 밀어 넣은 값이다.
// t(공통 시간) 는 흐르되 위상이 다르면 같은 순간에도 서로 다른 높이가 된다 — 이것이 "물결"의 원리다.
function apply(t) {
var speed = SPEEDS[speedIdx];
items.forEach(function (el, i) {
var phase = i * PHASE_RAD;
var y = AMPLITUDE_PX * Math.sin(t * speed + phase);
el.style.setProperty('--y', y.toFixed(2) + 'px');
});
}
function human() { if (isDemo) { wrap.classList.remove('is-demo'); isDemo = false; } }
button.addEventListener('click', function () {
human();
speedIdx = (speedIdx + 1) % SPEEDS.length;
});
var start = 0;
function loop(ts) {
if (!start) start = ts;
if (isDemo) {
if (reduce) {
apply(Math.PI / 2); // 계산은 유지, 시간 축소 대신 파고 정점 위상으로 즉시 고정
} else {
apply((ts - start) / 260);
}
}
requestAnimationFrame(loop);
}
requestAnimationFrame(loop);
apply(0);
})();// PhaseWaveMarker — vanilla 판(run/373/demo/03-list-style-marker-wave-phase/index.html) 의 React 포트.
// ::marker 는 transform(translateY) 을 지원하지 않아 물결을 만들 수 없다 — list-style:none 으로 지우고
// ::before 로 대체한 불릿에 커스텀 프로퍼티 --y 를 실어 사인 위상차로 세로로 흔든다.
import { useEffect, useRef } from "react";
import styles from "./PhaseWaveMarker.module.scss";
type Box<T> = { current: T };
const WAVE_PHASE_DEG = 40; // 인접 항목 사이 위상 간격 — 변형 03 목표: 40 → 80
const AMPLITUDE_PX = 6; // 물결 진폭 상한(px)
const SPEEDS = [1, 2, 0.5]; // 속도 프리셋 — 버튼으로 순환한다 (Math.random 금지, 결정적 배열)
const TRACKS = ["트랙 01 · 새벽 산책", "트랙 02 · 창가 자리", "트랙 03 · 늦은 우산", "트랙 04 · 첫눈", "트랙 05 · 정거장"];
export default function PhaseWaveMarker() {
const rootRef = useRef(null) as unknown as Box<HTMLDivElement>;
const listRef = useRef(null) as unknown as Box<HTMLUListElement>;
const rafRef = useRef(0) as unknown as Box<number>;
useEffect(() => {
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
const root = rootRef.current;
const list = listRef.current;
if (!root || !list) return;
const items = Array.prototype.slice.call(list.querySelectorAll("li"));
const PHASE_RAD = (WAVE_PHASE_DEG * Math.PI) / 180;
let speedIdx = 0;
let isDemo = true;
// 계산 겹: 항목 i 의 불릿 위치는 sin(t * speed + i * phase) 로 계산한다 — 같은 시각에 항목마다 위상이 달라
// 줄 전체가 하나의 파동으로 보인다. CSS transition 이 아니라 프레임마다 계산되는 값이다.
function apply(t: number) {
items.forEach(function (el: HTMLElement, i: number) {
const y = AMPLITUDE_PX * Math.sin(t * SPEEDS[speedIdx] + i * PHASE_RAD);
el.style.setProperty("--y", y.toFixed(2) + "px");
});
}
function human() { if (isDemo) { root!.classList.remove(styles.isDemo); isDemo = false; } }
function onClick() {
human();
speedIdx = (speedIdx + 1) % SPEEDS.length;
}
root!.addEventListener("click", onClick);
let last = 0;
function loop(ts: number) {
if (!last) last = ts;
if (isDemo && !reduce) apply((ts - last) / 1000);
else if (reduce) apply(1.57); // 계산은 유지, 시간 축소 대신 파도 꼭대기 위상(π/2) 으로 즉시 고정
rafRef.current = requestAnimationFrame(loop);
}
rafRef.current = requestAnimationFrame(loop);
return () => {
root!.removeEventListener("click", onClick);
cancelAnimationFrame(rafRef.current);
};
}, []);
return (
<main className={styles.stage}>
<div className={styles.wrap + " " + styles.isDemo} ref={rootRef}>
<ul className={styles.waveList} ref={listRef}>
{TRACKS.map(function (t) { return <li key={t}>{t}</li>; })}
</ul>
<button className={styles.speed} type="button">물결 속도 전환</button>
</div>
</main>
);
}03 위상 물결 마커 — 항목마다 위상 값을 밀어 불릿이 물결치는 방식 — 측정 누적면적 0.931% · 움직인 프레임 23/23GODRICH 원작 · zip 에 SCSS·React 포함 · css 리스트 디자인 9종 — 마커가 계산으로 움직이는 목록 꾸미기
이 데모가 속한 글

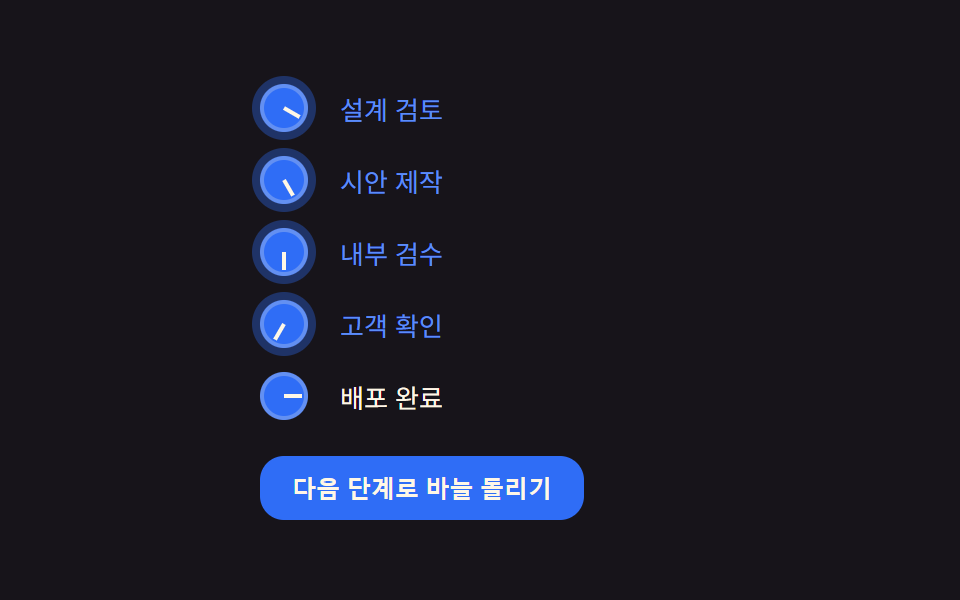

css 리스트 디자인 9종 — 마커가 계산으로 움직이는 목록 꾸미기아홉 가지 리스트 마커 중 하나는 다이얼 각도 값이 항목마다 쌓이며 불릿이 시계처럼 돌고, 하나는 카운터 값이 자릿수별로 분해되어 숫자가 주행계처럼 굴러가고, 하나는 소수 판정 값에 따라 그 번호의 마커만 글로우가 이 글의 데모 전부 보기
