04필 광택 — 채워진 구간을 값 비율로 자르고 하이라이트를 흘리는 sweep

<main class="stage">
<div class="fg" id="fg">
  <p class="fg__hint">채움을 값 비율로 자르고 그 안에서만 사선 하이라이트가 흐르게 background-clip 으로 가둡니다</p>
  <div class="fg__track" id="fgTrack" role="img" aria-label="채움 끝을 따라 광택이 흐르는 필 슬라이더 장면">
    <div class="fg__fill" id="fgFill"><div class="fg__gloss"></div></div>
    <div class="fg__thumb" id="fgThumb"></div>
    <input class="fg__range" id="fgRange" type="range" min="0" max="100" step="1" value="50" aria-label="값 슬라이더">
  </div>
  <p class="fg__meta"><b class="fg__tag" id="fgPct">50%</b><span class="fg__unit">채움 · 광택은 채움 안에서만</span></p>
</div>
</main>

@use "../../../../site/static/demo-tokens" as *;

// 필 광택(04, 아이디어형) — 네이티브 input 은 투명 오버레이로 조작만 받고, 채움·광택은
// 아래 div 가 그린다. background-clip 대신 overflow:hidden 트랙에 폭(--pct)만큼 자란
// .fg__fill 로 가둔다 — 안의 sweep 은 그 폭 밖으로 못 나간다.

$duration: $dur-loop;
$easing: $ease-out;
$color: $subject-blue-deep;

@include stage($stage-paper);

$track-h: 8px;
$thumb-d: 20px;

.fg {
  display: flex; flex-direction: column; align-items: center; gap: $sp-3;
  width: 100%; max-width: 360px;
}

.fg__hint {
  margin: 0; font-weight: 700; font-size: clamp(10px, 2.8vw, 12px); line-height: 1.35;
  color: $subject-ink; text-align: center;
}

.fg__track {
  position: relative; width: 100%; height: 40px;
  display: flex; align-items: center;
  --pct: 50; --sweep: 0;
}

.fg__track::before {
  content: ""; position: absolute; left: 0; right: 0; top: 50%;
  height: $track-h; margin-top: -($track-h / 2);
  border-radius: $r-pill; background: rgba($subject-ink, .12);
}

.fg__fill {
  position: absolute; left: 0; top: 50%; height: $track-h; margin-top: -($track-h / 2);
  width: calc(var(--pct) * 1%);
  border-radius: $r-pill; background: $color;
  overflow: hidden;
}

.fg__gloss {
  position: absolute; top: 0; left: 0; width: 100%; height: 100%;
  background: linear-gradient(115deg, transparent 40%, rgba($subject-cream, .65) 50%, transparent 60%);
  background-size: 260% 100%;
  background-position: calc(var(--sweep) * 1% - 80%) 0;
}

.fg__thumb {
  position: absolute; top: 50%;
  // 썸을 값 위치에 중심 정렬한다 — 가운데 정렬 트랜스폼 대신 자기 반지름만큼
  // 왼쪽으로 당겨 같은 결과를 낸다(마퀴 트랙이 아니라 점 정렬이라 BD15 대상이 아니다).
  left: calc(var(--pct) * 1% - #{$thumb-d} / 2);
  width: $thumb-d; height: $thumb-d; margin-top: -($thumb-d / 2);
  border-radius: 50%; background: $subject-ink; box-shadow: $shadow-press;
}

.fg__range {
  position: absolute; inset: 0; width: 100%; height: 100%;
  margin: 0; appearance: none; -webkit-appearance: none;
  background: transparent; opacity: 0; cursor: pointer;
}
.fg__range:focus-visible { outline: 2px solid $subject-blue-deep; outline-offset: 2px; border-radius: $r-pill; }
.fg__range::-webkit-slider-thumb { appearance: none; -webkit-appearance: none; width: $thumb-d; height: $thumb-d; }
.fg__range::-moz-range-thumb { width: $thumb-d; height: $thumb-d; border: 0; background: transparent; }

.fg__meta { margin: 0; font-size: clamp(9px, 2.4vw, 11px); color: rgba($subject-ink, .82); }
.fg__tag { font-weight: 700; color: $color; font-variant-numeric: tabular-nums; margin-right: $sp-1; }
.fg__unit { color: rgba($subject-ink, .72); }

@media (max-width: 340px) {
  .fg { gap: $sp-2; max-width: 280px; }
  .fg__hint { font-size: 8px; }
  .fg__meta { font-size: 7px; }
}

@media (prefers-reduced-motion: reduce) {
  .fg__gloss { background-position: -80% 0; }
}

html, body {
  margin: 0;
  overflow: hidden;
}

.stage {
  box-sizing: border-box;
  min-height: 100vh;
  display: grid;
  place-items: center;
  margin: 0;
  background: #ffffff;
  font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
  padding: clamp(8px, 4vw, 24px);
}

.fg {
  display: flex;
  flex-direction: column;
  align-items: center;
  gap: 12px;
  width: 100%;
  max-width: 360px;
}

.fg__hint {
  margin: 0;
  font-weight: 700;
  font-size: clamp(10px, 2.8vw, 12px);
  line-height: 1.35;
  color: #17141a;
  text-align: center;
}

.fg__track {
  position: relative;
  width: 100%;
  height: 40px;
  display: flex;
  align-items: center;
  --pct: 50;
  --sweep: 0;
}

.fg__track::before {
  content: "";
  position: absolute;
  left: 0;
  right: 0;
  top: 50%;
  height: 8px;
  margin-top: -4px;
  border-radius: 999px;
  background: rgba(23, 20, 26, 0.12);
}

.fg__fill {
  position: absolute;
  left: 0;
  top: 50%;
  height: 8px;
  margin-top: -4px;
  width: calc(var(--pct) * 1%);
  border-radius: 999px;
  background: #0a4fe8;
  overflow: hidden;
}

.fg__gloss {
  position: absolute;
  top: 0;
  left: 0;
  width: 100%;
  height: 100%;
  background: linear-gradient(115deg, transparent 40%, rgba(255, 247, 230, 0.65) 50%, transparent 60%);
  background-size: 260% 100%;
  background-position: calc(var(--sweep) * 1% - 80%) 0;
}

.fg__thumb {
  position: absolute;
  top: 50%;
  left: calc(var(--pct) * 1% - 20px / 2);
  width: 20px;
  height: 20px;
  margin-top: -10px;
  border-radius: 50%;
  background: #17141a;
  box-shadow: 0 6px 12px rgba(23, 20, 26, 0.32);
}

.fg__range {
  position: absolute;
  inset: 0;
  width: 100%;
  height: 100%;
  margin: 0;
  appearance: none;
  -webkit-appearance: none;
  background: transparent;
  opacity: 0;
  cursor: pointer;
}

.fg__range:focus-visible {
  outline: 2px solid #0a4fe8;
  outline-offset: 2px;
  border-radius: 999px;
}

.fg__range::-webkit-slider-thumb {
  appearance: none;
  -webkit-appearance: none;
  width: 20px;
  height: 20px;
}

.fg__range::-moz-range-thumb {
  width: 20px;
  height: 20px;
  border: 0;
  background: transparent;
}

.fg__meta {
  margin: 0;
  font-size: clamp(9px, 2.4vw, 11px);
  color: rgba(23, 20, 26, 0.82);
}

.fg__tag {
  font-weight: 700;
  color: #0a4fe8;
  font-variant-numeric: tabular-nums;
  margin-right: 4px;
}

.fg__unit {
  color: rgba(23, 20, 26, 0.72);
}

@media (max-width: 340px) {
  .fg {
    gap: 8px;
    max-width: 280px;
  }
  .fg__hint {
    font-size: 8px;
  }
  .fg__meta {
    font-size: 7px;
  }
}
@media (prefers-reduced-motion: reduce) {
  .fg__gloss {
    background-position: -80% 0;
  }
}

// 필 광택(04) — 네이티브 input 은 투명하게 겹쳐 실제 조작만 받고, 시각은 아래 채움
// div 가 맡는다(트랙·썸 anatomy 의 경계 — pseudo-element 만으로는 background-clip 가둠과
// 사선 sweep 을 함께 표현하기 어렵다). 채움 폭은 --pct, 광택 위치는 --sweep 로 매 프레임
// 다시 계산해 background-position 에 대입한다. CSS @keyframes 는 없다.
(function () {
  var root = document.getElementById('fg');
  var track = document.getElementById('fgTrack');
  var fill = document.getElementById('fgFill');
  var thumb = document.getElementById('fgThumb');
  var range = document.getElementById('fgRange');
  var pctEl = document.getElementById('fgPct');
  if (!root || !track || !fill || !thumb || !range || !pctEl) return;

  var MIN = 0, MAX = 100;
  var TAU = 0.14;
  var SWEEP_PERIOD = 1.1; // 초 — 광택이 채움 안을 한 번 가로지르는 주기

  function paint(v, sweepPhase) {
    var pct = (v - MIN) / (MAX - MIN) * 100;
    track.style.setProperty('--pct', pct.toFixed(2));
    track.style.setProperty('--sweep', (sweepPhase * 100).toFixed(2));
    pctEl.textContent = Math.round(pct) + '%';
    range.setAttribute('aria-valuenow', String(Math.round(v)));
  }

  var current = 50;
  paint(current, 0);

  var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;

  var playing = true;
  function stop() { playing = false; }
  range.addEventListener('pointerdown', stop);
  range.addEventListener('keydown', stop);
  range.addEventListener('input', function () {
    current = Number(range.value);
  });

  var targets = [50, 22, 78, 40, 90, 50];
  var seg = 0, segFrom = current;
  var SEG_MS = 400;
  var segStart = performance.now();
  var start = segStart;

  if (reduce) {
    current = targets[0];
    range.value = String(current);
    paint(current, 0);
  } else {
    (function step(now) {
      if (playing) {
        var elapsed = now - segStart;
        if (elapsed >= SEG_MS) {
          seg = (seg + 1) % targets.length;
          segStart = now; elapsed = 0; segFrom = current;
        }
        var target = targets[seg];
        var t = elapsed / 1000;
        var k = 1 - Math.exp(-t / TAU);
        current = segFrom + (target - segFrom) * k;
        range.value = String(Math.round(current));
      }
      var sweepT = ((now - start) / 1000) % SWEEP_PERIOD / SWEEP_PERIOD;
      paint(current, sweepT);
      requestAnimationFrame(step);
    })(start);
  }
})();

// RangeSliderFillGlossSweep — vanilla 판(run/334/demo/04-range-slider-fill-gloss-sweep/index.html)
// 의 React 포트. 네이티브 input 은 투명 오버레이로 조작만 받고, 채움·광택은 아래 div 가
// 그린다. 채움 폭은 --pct, 광택 위치는 --sweep 로 매 프레임 다시 계산해 background-position
// 에 대입한다. CSS @keyframes 는 없다.
import { useEffect, useRef } from "react";
import type { CSSProperties } from "react";
import styles from "./RangeSliderFillGlossSweep.module.scss";

export type RangeSliderFillGlossSweepProps = {
  duration?: string;
  easing?: string;
  color?: string;
};

type Vars = CSSProperties & { "--duration"?: string; "--easing"?: string; "--color"?: string };
type Box<T> = { current: T };

const HINT = "채움을 값 비율로 자르고 그 안에서만 사선 하이라이트가 흐르게 background-clip 으로 가둡니다";
const ARIA_SCENE = "채움 끝을 따라 광택이 흐르는 필 슬라이더 장면";
const RANGE_LABEL = "값 슬라이더";
const UNIT = "채움 · 광택은 채움 안에서만";

const MIN = 0, MAX = 100;
const TAU = 0.14;
const SWEEP_PERIOD = 1.1; // 초 — 광택이 채움 안을 한 번 가로지르는 주기
const TARGETS = [50, 22, 78, 40, 90, 50];
const SEG_MS = 400;

export default function RangeSliderFillGlossSweep({
  duration = "2s",
  easing = "ease-out",
  color = "#0a4fe8"
}: RangeSliderFillGlossSweepProps) {
  const trackRef = useRef<HTMLDivElement | null>(null);
  const rangeRef = useRef<HTMLInputElement | null>(null);
  const pctRef = useRef<HTMLElement | null>(null);
  const rafRef = useRef(0) as Box<number>;

  useEffect(() => {
    const track = trackRef.current;
    const range = rangeRef.current;
    const pctEl = pctRef.current;
    if (!track || !range || !pctEl) return;

    function paint(v: number, sweepPhase: number): void {
      const pct = ((v - MIN) / (MAX - MIN)) * 100;
      track!.style.setProperty("--pct", pct.toFixed(2));
      track!.style.setProperty("--sweep", (sweepPhase * 100).toFixed(2));
      pctEl!.textContent = Math.round(pct) + "%";
      range!.setAttribute("aria-valuenow", String(Math.round(v)));
    }

    let current = 50;
    paint(current, 0);

    const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;

    let playing = true;
    function stop(): void { playing = false; }
    const onInput = (): void => { current = Number(range!.value); };
    range.addEventListener("pointerdown", stop);
    range.addEventListener("keydown", stop);
    range.addEventListener("input", onInput);

    let seg = 0, segFrom = current;
    let segStart = performance.now();
    const start = segStart;

    if (reduce) {
      current = TARGETS[0];
      range.value = String(current);
      paint(current, 0);
    } else {
      const step = (now: number): void => {
        if (playing) {
          let elapsed = now - segStart;
          if (elapsed >= SEG_MS) {
            seg = (seg + 1) % TARGETS.length;
            segStart = now; elapsed = 0; segFrom = current;
          }
          const target = TARGETS[seg];
          const t = elapsed / 1000;
          const k = 1 - Math.exp(-t / TAU);
          current = segFrom + (target - segFrom) * k;
          range!.value = String(Math.round(current));
        }
        const sweepT = (((now - start) / 1000) % SWEEP_PERIOD) / SWEEP_PERIOD;
        paint(current, sweepT);
        rafRef.current = requestAnimationFrame(step);
      };
      rafRef.current = requestAnimationFrame(step);
    }

    return () => {
      cancelAnimationFrame(rafRef.current);
      range.removeEventListener("pointerdown", stop);
      range.removeEventListener("keydown", stop);
      range.removeEventListener("input", onInput);
    };
    // eslint-disable-next-line react-hooks/exhaustive-deps
  }, []);

  return (
    <main className={styles.stage}>
      <div
        className={styles.fg}
        style={{ "--duration": duration, "--easing": easing, "--color": color } as Vars}
      >
        <p className={styles.hint}>{HINT}</p>
        <div className={styles.track} ref={trackRef} role="img" aria-label={ARIA_SCENE}>
          <div className={styles.fill}>
            <div className={styles.gloss}></div>
          </div>
          <div className={styles.thumb}></div>
          <input
            className={styles.range}

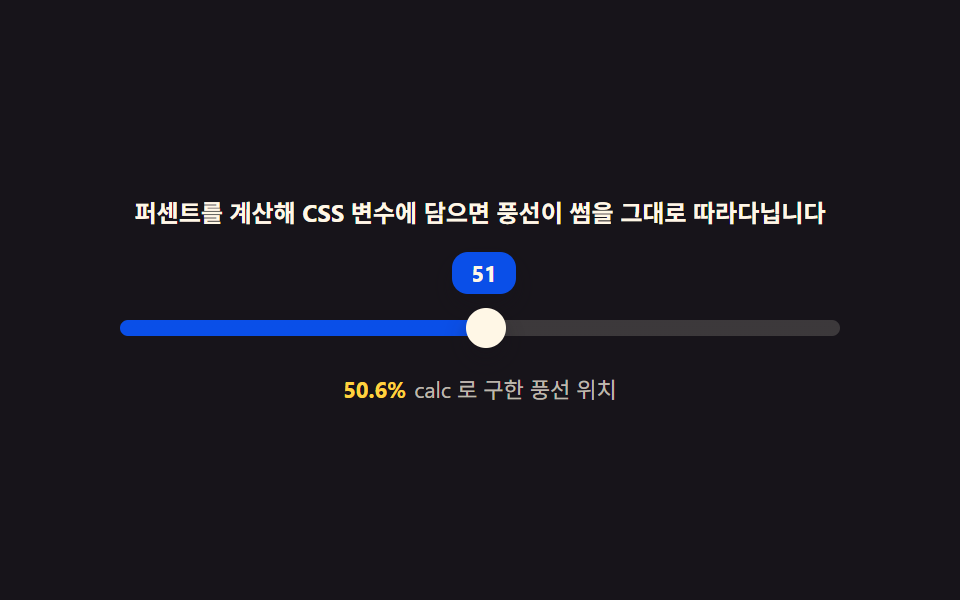

            ref={rangeRef}
            type="range"
            min={0}
            max={100}
            step={1}
            defaultValue={50}
            aria-label={RANGE_LABEL}
          />
        </div>
        <p className={styles.meta}>
          <b className={styles.tag} ref={pctRef}>50%</b>
          <span className={styles.unit}>{UNIT}</span>
        </p>
      </div>
    </main>
  );
}
