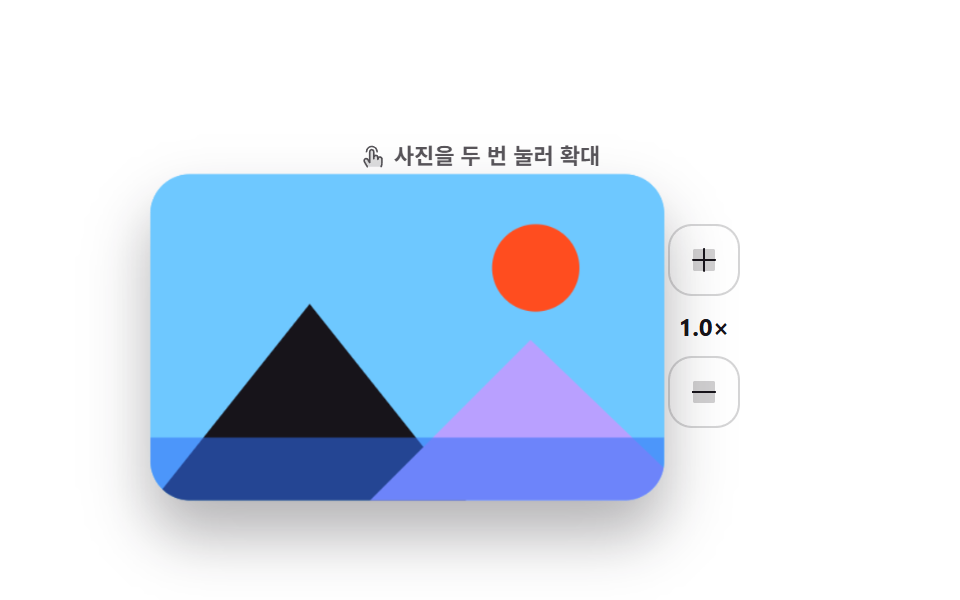

01더블탭 줌
사진을 두 번 연속 누르면 두 번째로 닿은 자리를 중심으로 확대와 축소가 번갈아 일어나고, 옆의 더하기·빼기 버튼을 눌러도 같은 단계로 움직입니다.
쓰임상품 사진이나 후기 갤러리처럼 한 손가락으로 빠르게 확대해 자세히 보게 하고 싶을 때
dblclicktransform-originaria-live
<main class="stage">
<div class="dz is-demo">
<div class="dz__main">
<div class="dz__photo" id="dz-photo">
<svg viewBox="0 0 200 130" preserveAspectRatio="xMidYMid slice" aria-hidden="true">
<rect class="dz__sky" width="200" height="130"/>
<circle class="dz__sun" cx="150" cy="38" r="17"/>
<polygon class="dz__m1" points="0,130 62,52 124,130"/>
<polygon class="dz__m2" points="84,130 148,66 200,116 200,130"/>
<rect class="dz__lake" y="104" width="200" height="26"/>
</svg>
<span class="dz__ring" id="dz-ring" aria-hidden="true"></span>
</div>
<div class="dz__side">
<button class="dz__btn" type="button" id="dz-in" aria-label="한 단계 확대">
<svg viewBox="0 0 256 256" width="16" height="16"><g fill="currentColor"><path d="M216 56v144a16 16 0 0 1-16 16H56a16 16 0 0 1-16-16V56a16 16 0 0 1 16-16h144a16 16 0 0 1 16 16" opacity=".2"/><path d="M224 128a8 8 0 0 1-8 8h-80v80a8 8 0 0 1-16 0v-80H40a8 8 0 0 1 0-16h80V40a8 8 0 0 1 16 0v80h80a8 8 0 0 1 8 8"/></g></svg>
</button>
<span class="dz__level" id="dz-level" aria-live="polite">1.0×</span>
<button class="dz__btn" type="button" id="dz-out" aria-label="한 단계 축소">
<svg viewBox="0 0 256 256" width="16" height="16"><g fill="currentColor"><path d="M216 56v144a16 16 0 0 1-16 16H56a16 16 0 0 1-16-16V56a16 16 0 0 1 16-16h144a16 16 0 0 1 16 16" opacity=".2"/><path d="M224 128a8 8 0 0 1-8 8H40a8 8 0 0 1 0-16h176a8 8 0 0 1 8 8"/></g></svg>
</button>
</div>
</div>
<p class="dz__hint" id="dz-hint"><svg viewBox="0 0 256 256" width="13" height="13"><g fill="currentColor"><path d="M216 148v36c0 24-8 40-8 40H72l-29.32-50a20 20 0 0 1 34.64-20L96 184V76a20 20 0 0 1 40 0v56a20 20 0 0 1 40 0v16a20 20 0 0 1 40 0" opacity=".2"/><path d="M56 76a60 60 0 0 1 120 0a8 8 0 0 1-16 0a44 44 0 0 0-88 0a8 8 0 1 1-16 0m140 44a27.9 27.9 0 0 0-13.36 3.39A28 28 0 0 0 144 106.7V76a28 28 0 0 0-56 0v80l-3.82-6.13a28 28 0 0 0-48.41 28.17l29.32 50a8 8 0 1 0 13.8-8.04L49.6 170a12 12 0 1 1 20.78-12l.14.23l18.68 30A8 8 0 0 0 104 184V76a12 12 0 0 1 24 0v68a8 8 0 1 0 16 0v-12a12 12 0 0 1 24 0v20a8 8 0 0 0 16 0v-4a12 12 0 0 1 24 0v36c0 21.61-7.1 36.3-7.16 36.42a8 8 0 0 0 3.58 10.73a7.9 7.9 0 0 0 3.58.85a8 8 0 0 0 7.16-4.42c.37-.73 8.85-18 8.85-43.58v-36A28 28 0 0 0 196 120"/></g></svg> 사진을 두 번 눌러 확대</p>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
$duration: $dur-enter;
$easing: $ease-spring;
$color: $subject-blue;
@include stage($stage-paper);
.dz {
display: flex;
flex-direction: column-reverse; // 힌트를 위로 — 확대된 사진이 힌트를 덮지 않게
align-items: center;
user-select: none;
-webkit-user-select: none;
}
.dz__main { display: flex; align-items: center; gap: $sp-4; }
.dz__photo {
position: relative;
width: 208px;
height: 132px;
border-radius: $r-card;
overflow: hidden;
box-shadow: $shadow-raised;
background: $subject-sky;
transform: scale(1);
transition: transform $duration $easing;
cursor: zoom-in;
touch-action: manipulation;
}
.dz__photo svg { display: block; width: 100%; height: 100%; }
.dz__sky { fill: $subject-sky; }
.dz__sun { fill: $stage-orange; }
.dz__m1 { fill: $subject-ink; }
.dz__m2 { fill: $subject-lilac; }
.dz__lake { fill: $subject-blue; opacity: .55; }
.dz__ring {
position: absolute;
width: 36px; height: 36px;
margin: -18px 0 0 -18px;
border: 2px solid #fff;
border-radius: 50%;
opacity: 0;
pointer-events: none;
}
.dz__ring.is-pulse { animation: dz-pulse $dur-quick $ease-out; }
@keyframes dz-pulse {
0% { opacity: .9; transform: scale(.4); }
100% { opacity: 0; transform: scale(1.15); }
}
.dz__side { display: flex; flex-direction: column; align-items: center; gap: $sp-2; }
.dz__btn {
display: inline-flex; align-items: center; justify-content: center;
width: 36px; height: 36px;
border: 1px solid rgba(23, 20, 26, .18);
background: #fff;
border-radius: $r-control;
color: $subject-ink;
cursor: pointer;
transition: background $dur-quick $easing, color $dur-quick $easing;
}
.dz__btn:hover { background: $color; color: #fff; }
.dz__btn:focus-visible { outline: 2px solid $color; outline-offset: 2px; }
.dz__level {
font-size: 12px; line-height: 14px; font-weight: 700;
color: $subject-ink;
font-variant-numeric: tabular-nums;
}
.dz__hint {
position: relative;
z-index: 1;
display: flex; align-items: center; gap: $sp-1;
margin: 0 0 $sp-3;
font-size: 11px; line-height: 14px; font-weight: 600;
color: rgba(23, 20, 26, .72);
}
.dz__hint svg { flex: none; color: rgba(23, 20, 26, .72); }
// ── 자동 루프: 탭 두 번 → 확대 → 유지 → 복귀. 복귀는 90% 안에 끝난다 ──
.dz.is-demo .dz__photo {
transform-origin: 148px 42px; // 규칙8: 탭 좌표(148,42) 줌 앵커
animation: dz-zoom $dur-loop $easing infinite;
}
@keyframes dz-zoom {
0%, 100% { transform: scale(1); }
30% { transform: scale(1); }
44% { transform: scale(2.1); }
76% { transform: scale(2.1); }
88% { transform: scale(1); }
}
.dz.is-demo .dz__ring {
left: 148px; top: 42px;
animation: dz-taps $dur-loop $ease-out infinite;
}
@keyframes dz-taps {
0%, 8% { opacity: 0; transform: scale(.4); }
13% { opacity: .95; transform: scale(.85); }
19% { opacity: 0; transform: scale(1.15); }
21% { opacity: 0; transform: scale(.4); }
26% { opacity: .95; transform: scale(.85); }
32% { opacity: 0; transform: scale(1.15); }
100% { opacity: 0; transform: scale(1.15); }
}
@media (prefers-reduced-motion: reduce) {
.dz.is-demo .dz__photo,
.dz.is-demo .dz__ring,
.dz.is-demo .dz__level { animation: none !important; }
.dz__photo, .dz__btn { transition: none; }
.dz__photo { transform: none; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #ffffff;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.dz {
display: flex;
flex-direction: column-reverse;
align-items: center;
user-select: none;
-webkit-user-select: none;
}
.dz__main {
display: flex;
align-items: center;
gap: 16px;
}
.dz__photo {
position: relative;
width: 208px;
height: 132px;
border-radius: 16px;
overflow: hidden;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
background: #6ec8ff;
transform: scale(1);
transition: transform 600ms cubic-bezier(0.2, 0.8, 0.2, 1);
cursor: zoom-in;
touch-action: manipulation;
}
.dz__photo svg {
display: block;
width: 100%;
height: 100%;
}
.dz__sky {
fill: #6ec8ff;
}
.dz__sun {
fill: #ff4d1f;
}
.dz__m1 {
fill: #17141a;
}
.dz__m2 {
fill: #b9a0ff;
}
.dz__lake {
fill: #2f6df6;
opacity: 0.55;
}
.dz__ring {
position: absolute;
width: 36px;
height: 36px;
margin: -18px 0 0 -18px;
border: 2px solid #fff;
border-radius: 50%;
opacity: 0;
pointer-events: none;
}
.dz__ring.is-pulse {
animation: dz-pulse 220ms ease-out;
}
@keyframes dz-pulse {
0% {
opacity: 0.9;
transform: scale(0.4);
}
100% {
opacity: 0;
transform: scale(1.15);
}
}
.dz__side {
display: flex;
flex-direction: column;
align-items: center;
gap: 8px;
}
.dz__btn {
display: inline-flex;
align-items: center;
justify-content: center;
width: 36px;
height: 36px;
border: 1px solid rgba(23, 20, 26, 0.18);
background: #fff;
border-radius: 12px;
color: #17141a;
cursor: pointer;
transition: background 220ms cubic-bezier(0.2, 0.8, 0.2, 1), color 220ms cubic-bezier(0.2, 0.8, 0.2, 1);
}
.dz__btn:hover {
background: #2f6df6;
color: #fff;
}
.dz__btn:focus-visible {
outline: 2px solid #2f6df6;
outline-offset: 2px;
}
.dz__level {
font-size: 12px;
line-height: 14px;
font-weight: 700;
color: #17141a;
font-variant-numeric: tabular-nums;
}
.dz__hint {
position: relative;
z-index: 1;
display: flex;
align-items: center;
gap: 4px;
margin: 0 0 12px;
font-size: 11px;
line-height: 14px;
font-weight: 600;
color: rgba(23, 20, 26, 0.72);
}
.dz__hint svg {
flex: none;
color: rgba(23, 20, 26, 0.72);
}
.dz.is-demo .dz__photo {
transform-origin: 148px 42px;
animation: dz-zoom 2s cubic-bezier(0.2, 0.8, 0.2, 1) infinite;
}
@keyframes dz-zoom {
0%, 100% {
transform: scale(1);
}
30% {
transform: scale(1);
}
44% {
transform: scale(2.1);
}
76% {
transform: scale(2.1);
}
88% {
transform: scale(1);
}
}
.dz.is-demo .dz__ring {
left: 148px;
top: 42px;
animation: dz-taps 2s ease-out infinite;
}
@keyframes dz-taps {
0%, 8% {
opacity: 0;
transform: scale(0.4);
}
13% {
opacity: 0.95;
transform: scale(0.85);
}
19% {
opacity: 0;
transform: scale(1.15);
}
21% {
opacity: 0;
transform: scale(0.4);
}
26% {
opacity: 0.95;
transform: scale(0.85);
}
32% {
opacity: 0;
transform: scale(1.15);
}
100% {
opacity: 0;
transform: scale(1.15);
}
}
@media (prefers-reduced-motion: reduce) {
.dz.is-demo .dz__photo,
.dz.is-demo .dz__ring,
.dz.is-demo .dz__level {
animation: none !important;
}
.dz__photo, .dz__btn {
transition: none;
}
.dz__photo {
transform: none;
}
}// 실제 동작: 두 번 누르면 그 지점 중심으로 확대/축소, 버튼은 같은 단계를 밟는다.
var root = document.querySelector('.dz');
var photo = document.getElementById('dz-photo');
var ring = document.getElementById('dz-ring');
var level = document.getElementById('dz-level');
var STEPS = [1, 1.55, 2.1];
var at = 0, lastTap = 0;
function go(i, ox, oy) {
at = Math.max(0, Math.min(i, STEPS.length - 1));
if (ox !== undefined) photo.style.transformOrigin = ox + 'px ' + oy + 'px';
photo.style.transform = 'scale(' + STEPS[at] + ')';
level.textContent = STEPS[at].toFixed(1) + '×';
}
function pulse(x, y) {
ring.style.left = x + 'px';
ring.style.top = y + 'px';
ring.classList.remove('is-pulse');
void ring.offsetWidth;
ring.classList.add('is-pulse');
}
photo.addEventListener('pointerdown', function (e) {
root.classList.remove('is-demo');
var now = Date.now();
if (now - lastTap < 320) {
var r = photo.getBoundingClientRect();
var x = e.clientX - r.left, y = e.clientY - r.top;
pulse(x, y);
go(at === STEPS.length - 1 ? 0 : at + 1, x, y);
lastTap = 0;
e.preventDefault();
} else { lastTap = now; }
});
document.getElementById('dz-in').addEventListener('click', function () { root.classList.remove('is-demo'); go(at + 1, 150, 44); });
document.getElementById('dz-out').addEventListener('click', function () { root.classList.remove('is-demo'); go(at - 1, 150, 44); });import { useRef, useState } from "react";
import type { CSSProperties } from "react";
import styles from "./DoubleTapZoom.module.scss";
export type DoubleTapZoomProps = {
steps?: number[];
duration?: number;
easing?: string;
color?: string;
};
type PEvt = { clientX: number; clientY: number; pointerId: number; preventDefault(): void; currentTarget: { setPointerCapture(id: number): void } };
type Box<T> = { current: T };
type Vars = CSSProperties & { "--duration"?: string; "--easing"?: string; "--color"?: string };
const IconPlus = () => (
<svg viewBox="0 0 256 256" width="16" height="16"><g fill="currentColor"><path d="M216 56v144a16 16 0 0 1-16 16H56a16 16 0 0 1-16-16V56a16 16 0 0 1 16-16h144a16 16 0 0 1 16 16" opacity=".2"/><path d="M224 128a8 8 0 0 1-8 8h-80v80a8 8 0 0 1-16 0v-80H40a8 8 0 0 1 0-16h80V40a8 8 0 0 1 16 0v80h80a8 8 0 0 1 8 8"/></g></svg>
);
const IconMinus = () => (
<svg viewBox="0 0 256 256" width="16" height="16"><g fill="currentColor"><path d="M216 56v144a16 16 0 0 1-16 16H56a16 16 0 0 1-16-16V56a16 16 0 0 1 16-16h144a16 16 0 0 1 16 16" opacity=".2"/><path d="M224 128a8 8 0 0 1-8 8H40a8 8 0 0 1 0-16h176a8 8 0 0 1 8 8"/></g></svg>
);
export default function DoubleTapZoom({
steps = [1, 1.55, 2.1],
duration = 600,
easing = "cubic-bezier(.2,.8,.2,1)",
color = "#2f6df6",
}: DoubleTapZoomProps) {
const [at, setAt] = useState(0);
const [origin, setOrigin] = useState("50% 50%");
const [ring, setRing] = useState<{ x: number; y: number; k: number } | null>(null);
const lastTap = useRef(0) as Box<number>;
const photoRef = useRef<HTMLDivElement>(null);
const vars: Vars = { "--duration": `${duration}ms`, "--easing": easing, "--color": color };
function go(i: number, ox?: number, oy?: number) {
const next = Math.max(0, Math.min(i, steps.length - 1));
if (ox !== undefined && oy !== undefined) setOrigin(`${ox}px ${oy}px`);
setAt(next);
}
function onDown(e: PEvt) {
const now = Date.now();
if (now - lastTap.current < 320) {
const r = (photoRef.current as HTMLDivElement).getBoundingClientRect();
const x = e.clientX - r.left, y = e.clientY - r.top;
setRing({ x, y, k: now });
go(at === steps.length - 1 ? 0 : at + 1, x, y);
lastTap.current = 0;
} else {
lastTap.current = now;
}
}
return (
<div className={styles.dz} style={vars}>
<div
ref={photoRef}
className={styles.photo}
style={{ transform: `scale(${steps[at]})`, transformOrigin: origin }}
onPointerDown={onDown}
>
<svg viewBox="0 0 200 130" preserveAspectRatio="xMidYMid slice" aria-hidden="true">
<rect className={styles.sky} width="200" height="130" />
<circle className={styles.sun} cx="150" cy="38" r="17" />
<polygon className={styles.m1} points="0,130 62,52 124,130" />
<polygon className={styles.m2} points="84,130 148,66 200,116 200,130" />
<rect className={styles.lake} y="104" width="200" height="26" />
</svg>
{ring && (
<span key={ring.k} className={styles.ring} style={{ left: ring.x, top: ring.y }} aria-hidden="true" />
)}
</div>
<div className={styles.side}>
<button type="button" className={styles.btn} aria-label="Zoom in one step" onClick={(): void => go(at + 1, 150, 44)}>
<IconPlus />
</button>
<span className={styles.level} aria-live="polite">{steps[at].toFixed(1)}x</span>
<button type="button" className={styles.btn} aria-label="Zoom out one step" onClick={(): void => go(at - 1, 150, 44)}>
<IconMinus />
</button>
</div>
</div>
);
}01 더블탭 줌 — 측정 누적면적 60.957% · 움직인 프레임 14/23GODRICH 원작 · zip 에 SCSS·React 포함 · 모바일 터치 제스처 9종 — 손가락 하나로 돌아가는 UI
이 데모가 속한 글
모바일 터치 제스처 9종 — 손가락 하나로 돌아가는 UI모바일 터치 제스처는 손가락이 화면에 닿아 움직인 거리와 속도를 읽어 화면을 바꾸는 조작 방식입니다. 아홉 개 중 둘은 손을 떼는 순간에야 결과가 갈리고, 하나는 끝까지 밀지 않으면 아무 일도 일어나지 않습니다. 이 글의 데모 전부 보기
