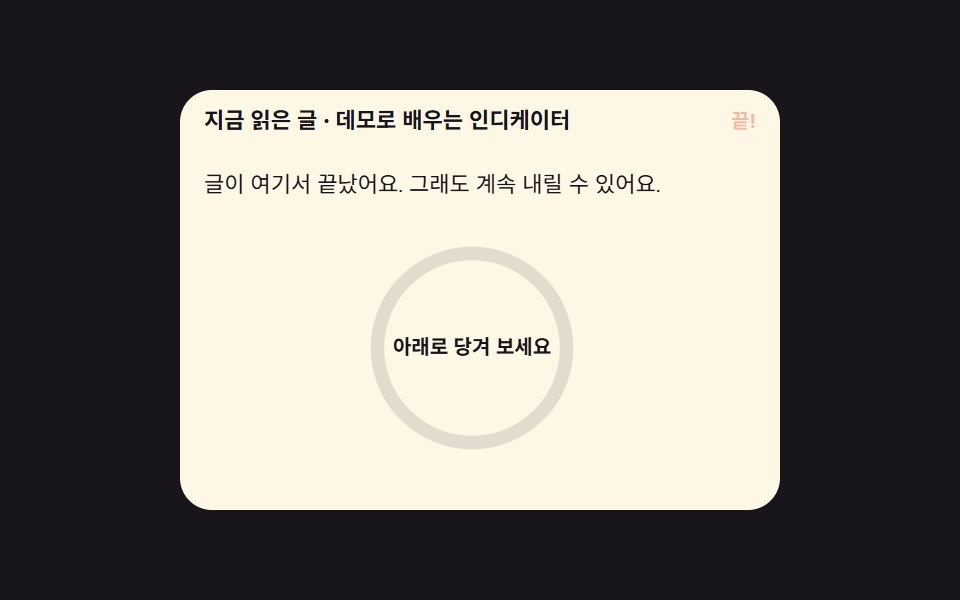

09끝에서 다음 글을 당겨 오는 진행 링

<main class="stage">
  <section class="nx is-demo" id="nx" aria-label="다음 글 당기는 고리">
    <header class="nx__head">
      <p class="nx__title">지금 읽은 글 · 데모로 배우는 인디케이터</p>
      <p class="nx__state" id="nx-state">끝!</p>
    </header>
    <div class="nx__view" id="nx-view" tabindex="0" role="region" aria-label="글 끝과 당기는 칸">
      <div class="nx__pad">
        <p class="nx__p">글이 여기서 끝났어요. 그래도 계속 내릴 수 있어요.</p>
        <div class="nx__pull" role="progressbar" aria-label="다음 글 당기기" aria-valuemin="0" aria-valuemax="100" aria-valuenow="0" id="nx-role">
          <span class="nx__ring" aria-hidden="true">
            <svg viewBox="0 0 96 96">
              <circle class="nx__track" cx="48" cy="48" r="42"></circle>
              <circle class="nx__fill" cx="48" cy="48" r="42" id="nx-fill"></circle>
            </svg>
          </span>
          <span class="nx__labels">
            <b class="nx__l nx__l--0">아래로 당겨 보세요</b>
            <b class="nx__l nx__l--1"><svg viewBox="0 0 256 256" width="1em" height="1em" fill="currentColor" aria-hidden="true"><path d="M216,128l-72,72V56Z" opacity="0.2"/><path d="M221.66,122.34l-72-72A8,8,0,0,0,136,56v64H40a8,8,0,0,0,0,16h96v64a8,8,0,0,0,13.66,5.66l72-72A8,8,0,0,0,221.66,122.34ZM152,180.69V75.31L204.69,128Z"/></svg> 다음 글로</b>
          </span>
        </div>
      </div>
    </div>
  </section>
</main>

@use "../../../../site/static/demo-tokens" as *;

// 끝에서 다음 글을 당겨 오는 진행 링 — stroke-dashoffset 이 줄며 고리가 차고, 다 차면 글자가 갈린다
$duration: $dur-loop;
$easing: $ease-out;
$color: $subject-cream;

@include stage($stage-ink);

.nx {
  box-sizing: border-box;
  width: min(300px, 92vw);
  border-radius: $r-card;
  background: $subject-cream;
  color: $subject-ink;
  font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
  overflow: hidden;
}

.nx__head {
  display: flex;
  align-items: baseline;
  justify-content: space-between;
  gap: $sp-2;
  padding: $sp-2 $sp-3 0;
}
.nx__title {
  margin: 0;
  font-size: 11px;
  font-weight: 700;
  line-height: 1.3;
}
.nx__state {
  margin: 0;
  font-size: 10px;
  line-height: 1.3;
  color: $subject-orange-deep;
  font-weight: 700;
}

.nx__view {
  box-sizing: border-box;
  height: 168px;
  margin: $sp-2 $sp-2 $sp-3;
  padding-right: $sp-2;
  overflow-y: auto;
  scrollbar-width: none;
  &::-webkit-scrollbar { display: none; }
  &:focus-visible { outline: 2px solid $subject-blue; outline-offset: 2px; }
}
// 스크롤 여유 — 끝머리 여백이 곧 「당기는 칸」
.nx__pad {
  display: grid;
  justify-items: center;
  gap: $sp-3;
  padding: $sp-2 $sp-1 64px;
}
.nx__p {
  margin: 0;
  justify-self: start;
  font-size: 11px;
  line-height: 1.55;
}

.nx__pull {
  position: relative;
  display: grid;
  place-items: center;
  width: 108px;
  height: 108px;
  margin-top: $sp-2;
}
.nx__ring { position: absolute; inset: 0; }
.nx__ring svg { width: 108px; height: 108px; transform: rotate(-90deg); }
.nx__track,
.nx__fill {
  fill: none;
  stroke-width: 6;
}
.nx__track { stroke: rgba(23, 20, 26, .12); }
.nx__fill {
  stroke: $subject-blue;
  stroke-linecap: round;
  stroke-dasharray: 263.9;
  // 정적 경로 — JS 가 둘레를 다시 세팅하고 스크롤 비율만큼 offset 을 줄인다
  stroke-dashoffset: 263.9;
}

// 두 문구를 같은 자리에 겹쳐 두고 컷으로 갈아 낀다
.nx__labels {
  position: relative;
  display: grid;
  place-items: center;
  width: 84px;
  height: 84px;
  text-align: center;
}
.nx__l {
  position: absolute;
  inset: 0;
  display: grid;
  place-items: center;
  gap: $sp-1;
  margin: 0;
  font-size: 10px;
  font-weight: 700;
  line-height: 1.35;
  color: $subject-ink;
  opacity: 0;
}
.nx__l svg { font-size: 14px; color: $subject-blue; }
.nx__l--0 { opacity: 1; }
.nx--next .nx__l--0 { opacity: 0; }
.nx--next .nx__l--1 { opacity: 1; color: $subject-blue; }

// ── 격자 미리보기 루프 — 고리가 차오르고 다 차면 글자가 컷으로 바뀐다 ──
// 24프레임 샘플은 4.1667% 눈금 — 되돌아가는 구간을 87.5% 와 91.67% 사이(88~90%)에 둔다.
// 그러지 않으면 「고리는 비었는데 글자는 다음 글로」 인 장이 대표 이미지로 뽑힌다
@keyframes nx-draw {
  0%, 30% { stroke-dashoffset: 263.9; }
  78%, 88% { stroke-dashoffset: 0; }
  90%, 100% { stroke-dashoffset: 263.9; }
}
@keyframes nx-l0 { 0%, 78% { opacity: 1; } 80%, 88% { opacity: 0; } 89%, 100% { opacity: 1; } }
@keyframes nx-l1 {
  0%, 78% { opacity: 0; transform: scale(.92); }
  80% { opacity: 1; transform: scale(1.04); }
  84%, 88% { opacity: 1; transform: scale(1); }
  89%, 100% { opacity: 0; transform: scale(.92); }
}
@keyframes nx-say {
  0%, 77% { opacity: .3; }
  80%, 88% { opacity: 1; }
  89%, 100% { opacity: .3; }
}
.nx.is-demo {
  .nx__fill {
    animation-name: nx-draw;
    animation-duration: $duration;
    animation-timing-function: $ease-out;
    animation-iteration-count: infinite;
  }
  .nx__l--0 { animation-name: nx-l0; animation-duration: $duration; animation-timing-function: steps(1, end); animation-iteration-count: infinite; }
  .nx__l--1 { animation-name: nx-l1; animation-duration: $duration; animation-timing-function: steps(1, end); animation-iteration-count: infinite; }
  .nx__state { animation-name: nx-say; animation-duration: $duration; animation-timing-function: steps(1, end); animation-iteration-count: infinite; }
}

@media (max-width: 340px) {
  // 폰 320×200 무대의 세로 여유는 174px — 머리 22 + 창 위아래 여백 20 을 빼면 창은 128px 이 상한
  .nx__view { height: 128px; }
  .nx__pull { width: 96px; height: 96px; }
  .nx__ring svg { width: 96px; height: 96px; }
  .nx__labels { width: 72px; height: 72px; }
}

@media (prefers-reduced-motion: reduce) {
  .nx.is-demo .nx__fill,
  .nx.is-demo .nx__l,
  .nx.is-demo .nx__state { animation: none !important; }
  // 정지 상태 — 고리는 절반, 첫 문구
  .nx.is-demo .nx__fill { stroke-dashoffset: 132 !important; }
  .nx.is-demo .nx__l--0 { opacity: 1 !important; }
  .nx.is-demo .nx__l--1 { opacity: 0 !important; }
}

html, body {
  margin: 0;
  overflow: hidden;
}

.stage {
  box-sizing: border-box;
  min-height: 100vh;
  display: grid;
  place-items: center;
  margin: 0;
  background: #17141a;
  font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
  padding: clamp(8px, 4vw, 24px);
}

.nx {
  box-sizing: border-box;
  width: min(300px, 92vw);
  border-radius: 16px;
  background: #fff7e6;
  color: #17141a;
  font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
  overflow: hidden;
}

.nx__head {
  display: flex;
  align-items: baseline;
  justify-content: space-between;
  gap: 8px;
  padding: 8px 12px 0;
}

.nx__title {
  margin: 0;
  font-size: 11px;
  font-weight: 700;
  line-height: 1.3;
}

.nx__state {
  margin: 0;
  font-size: 10px;
  line-height: 1.3;
  color: #c93000;
  font-weight: 700;
}

.nx__view {
  box-sizing: border-box;
  height: 168px;
  margin: 8px 8px 12px;
  padding-right: 8px;
  overflow-y: auto;
  scrollbar-width: none;
}
.nx__view::-webkit-scrollbar {
  display: none;
}
.nx__view:focus-visible {
  outline: 2px solid #2f6df6;
  outline-offset: 2px;
}

.nx__pad {
  display: grid;
  justify-items: center;
  gap: 12px;
  padding: 8px 4px 64px;
}

.nx__p {
  margin: 0;
  justify-self: start;
  font-size: 11px;
  line-height: 1.55;
}

.nx__pull {
  position: relative;
  display: grid;
  place-items: center;
  width: 108px;
  height: 108px;
  margin-top: 8px;
}

.nx__ring {
  position: absolute;
  inset: 0;
}

.nx__ring svg {
  width: 108px;
  height: 108px;
  transform: rotate(-90deg);
}

.nx__track,
.nx__fill {
  fill: none;
  stroke-width: 6;
}

.nx__track {
  stroke: rgba(23, 20, 26, 0.12);
}

.nx__fill {
  stroke: #2f6df6;
  stroke-linecap: round;
  stroke-dasharray: 263.9;
  stroke-dashoffset: 263.9;
}

.nx__labels {
  position: relative;
  display: grid;
  place-items: center;
  width: 84px;
  height: 84px;
  text-align: center;
}

.nx__l {
  position: absolute;
  inset: 0;
  display: grid;
  place-items: center;
  gap: 4px;
  margin: 0;
  font-size: 10px;
  font-weight: 700;
  line-height: 1.35;
  color: #17141a;
  opacity: 0;
}

.nx__l svg {
  font-size: 14px;
  color: #2f6df6;
}

.nx__l--0 {
  opacity: 1;
}

.nx--next .nx__l--0 {
  opacity: 0;
}

.nx--next .nx__l--1 {
  opacity: 1;
  color: #2f6df6;
}

@keyframes nx-draw {
  0%, 30% {
    stroke-dashoffset: 263.9;
  }
  78%, 88% {
    stroke-dashoffset: 0;
  }
  90%, 100% {
    stroke-dashoffset: 263.9;
  }
}
@keyframes nx-l0 {
  0%, 78% {
    opacity: 1;
  }
  80%, 88% {
    opacity: 0;
  }
  89%, 100% {
    opacity: 1;
  }
}
@keyframes nx-l1 {
  0%, 78% {
    opacity: 0;
    transform: scale(0.92);
  }
  80% {
    opacity: 1;
    transform: scale(1.04);
  }
  84%, 88% {
    opacity: 1;
    transform: scale(1);
  }
  89%, 100% {
    opacity: 0;
    transform: scale(0.92);
  }
}
@keyframes nx-say {
  0%, 77% {
    opacity: 0.3;
  }
  80%, 88% {
    opacity: 1;
  }
  89%, 100% {
    opacity: 0.3;
  }
}
.nx.is-demo .nx__fill {
  animation-name: nx-draw;
  animation-duration: 2s;
  animation-timing-function: ease-out;
  animation-iteration-count: infinite;
}
.nx.is-demo .nx__l--0 {
  animation-name: nx-l0;
  animation-duration: 2s;
  animation-timing-function: steps(1, end);
  animation-iteration-count: infinite;
}
.nx.is-demo .nx__l--1 {
  animation-name: nx-l1;
  animation-duration: 2s;
  animation-timing-function: steps(1, end);
  animation-iteration-count: infinite;
}
.nx.is-demo .nx__state {
  animation-name: nx-say;
  animation-duration: 2s;
  animation-timing-function: steps(1, end);
  animation-iteration-count: infinite;
}

@media (max-width: 340px) {
  .nx__view {
    height: 128px;
  }
  .nx__pull {
    width: 96px;
    height: 96px;
  }
  .nx__ring svg {
    width: 96px;
    height: 96px;
  }
  .nx__labels {
    width: 72px;
    height: 72px;
  }
}
@media (prefers-reduced-motion: reduce) {
  .nx.is-demo .nx__fill,
  .nx.is-demo .nx__l,
  .nx.is-demo .nx__state {
    animation: none !important;
  }
  .nx.is-demo .nx__fill {
    stroke-dashoffset: 132 !important;
  }
  .nx.is-demo .nx__l--0 {
    opacity: 1 !important;
  }
  .nx.is-demo .nx__l--1 {
    opacity: 0 !important;
  }
}

// 끝에서 다음 글을 당겨 오는 진행 링 — 끝머리 여백을 스크롤한 비율로 stroke-dashoffset 을 줄인다
var nx = document.getElementById('nx');
var view = document.getElementById('nx-view');
var fill = document.getElementById('nx-fill');
var role = document.getElementById('nx-role');
var state = document.getElementById('nx-state');
var circumference = 2 * Math.PI * 42;
fill.style.strokeDasharray = circumference;
view.addEventListener('scroll', function () {
  nx.classList.remove('is-demo');
  var max = view.scrollHeight - view.clientHeight;
  var r = max > 0 ? view.scrollTop / max : 0;
  // 글 본문(패드 위쪽)을 지나고 나서부터 링이 차오른다
  var p = Math.max(0, Math.min(1, (r - 0.55) / 0.45));
  fill.style.strokeDashoffset = circumference * (1 - p);
  role.setAttribute('aria-valuenow', Math.round(p * 100));
  var isNext = p >= 0.95;
  nx.classList.toggle('nx--next', isNext);
  state.textContent = isNext ? '놓으면 다음 글!' : '끝!';
});

import { useRef, useState } from "react";
import type { CSSProperties } from "react";
import styles from "./NextArticleRing.module.scss";

export type NextArticleRingProps = {
  title?: string;
  stateEnd?: string;
  stateNext?: string;
  body?: string;
  pullLabel?: string;
  nextLabel?: string;
  groupLabel?: string;
  viewLabel?: string;
  ringLabel?: string;
  /** 격자 미리보기용 2초 자동 루프. 사람이 손대면 꺼진다 */
  demo?: boolean;
  duration?: number;
  easing?: string;
  color?: string;
};

type Vars = CSSProperties & { "--duration"?: string; "--easing"?: string; "--color"?: string };
// ambient 가 얇아 DOM 요소 타입을 못 쓴다 — 필요한 꼴만 로컬 타입으로 선언
type ScrollBox = { scrollTop: number; scrollHeight: number; clientHeight: number };

// 반지름 42 인 원의 둘레. 한 곳에만 적고 CSS 의 stroke-dasharray 도 같은 값을 쓴다
const R = 42;
const CIRCUMFERENCE = 2 * Math.PI * R;

export default function NextArticleRing({
  title = "지금 읽은 글 · 데모로 배우는 인디케이터",
  stateEnd = "끝!",
  stateNext = "놓으면 다음 글!",
  body = "글이 여기서 끝났어요. 그래도 계속 내릴 수 있어요.",
  pullLabel = "아래로 당겨 보세요",
  nextLabel = "다음 글로",
  groupLabel = "다음 글 당기는 고리",
  viewLabel = "글 끝과 당기는 칸",
  ringLabel = "다음 글 당기기",
  demo = true,
  duration = 2000,
  easing = "ease-out",
  color = "#2f6df6",
}: NextArticleRingProps) {
  const [live, setLive] = useState(demo);
  const [pct, setPct] = useState(0);
  const viewRef = useRef<ScrollBox>(null);

  const vars: Vars = { "--duration": `${duration}ms`, "--easing": easing, "--color": color };
  const isNext = pct >= 95;

  // 글 본문(패드 위쪽)을 지나고 나서부터 링이 차오른다 — 끝머리 여백이 곧 「당기는 칸」
  function onScroll() {
    const el = viewRef.current;
    if (!el) return;
    setLive(false);
    const max = el.scrollHeight - el.clientHeight;
    const r = max > 0 ? el.scrollTop / max : 0;
    const p = Math.max(0, Math.min(1, (r - 0.55) / 0.45));
    setPct(Math.round(p * 100));
  }

  const cls = [styles.nx, live ? styles.isDemo : "", isNext ? styles.next : ""].filter(Boolean).join(" ");

  return (
    <section className={cls} style={vars} aria-label={groupLabel}>
      <header className={styles.head}>
        <p className={styles.ntitle}>{title}</p>
        <p className={styles.state}>{isNext ? stateNext : stateEnd}</p>
      </header>
      <div className={styles.view} ref={viewRef} onScroll={onScroll} tabIndex={0} role="region" aria-label={viewLabel}>
        <div className={styles.pad}>
          <p className={styles.p}>{body}</p>
          <div
            className={styles.pull}
            role="progressbar"
            aria-label={ringLabel}
            aria-valuemin={0}
            aria-valuemax={100}
            aria-valuenow={pct}
          >
            <span className={styles.ring} aria-hidden="true">
              <svg viewBox="0 0 96 96">
                <circle className={styles.track} cx="48" cy="48" r={R}></circle>
                <circle
                  className={styles.fill}
                  cx="48"
                  cy="48"
                  r={R}
                  style={{ strokeDasharray: CIRCUMFERENCE, strokeDashoffset: (CIRCUMFERENCE * (100 - pct)) / 100 }}
                ></circle>
              </svg>
            </span>
            <span className={styles.labels}>
              <b className={`${styles.l} ${styles.l0}`}>{pullLabel}</b>
              <b className={`${styles.l} ${styles.l1}`}>
                <svg viewBox="0 0 256 256" width="1em" height="1em" fill="currentColor" aria-hidden="true"><path d="M216,128l-72,72V56Z" opacity="0.2"/><path d="M221.66,122.34l-72-72A8,8,0,0,0,136,56v64H40a8,8,0,0,0,0,16h96v64a8,8,0,0,0,13.66,5.66l72-72A8,8,0,0,0,221.66,122.34ZM152,180.69V75.31L204.69,128Z"/></svg>{" "}
                {nextLabel}
              </b>
            </span>
          </div>
        </div>
      </div>
    </section>
  );
}
