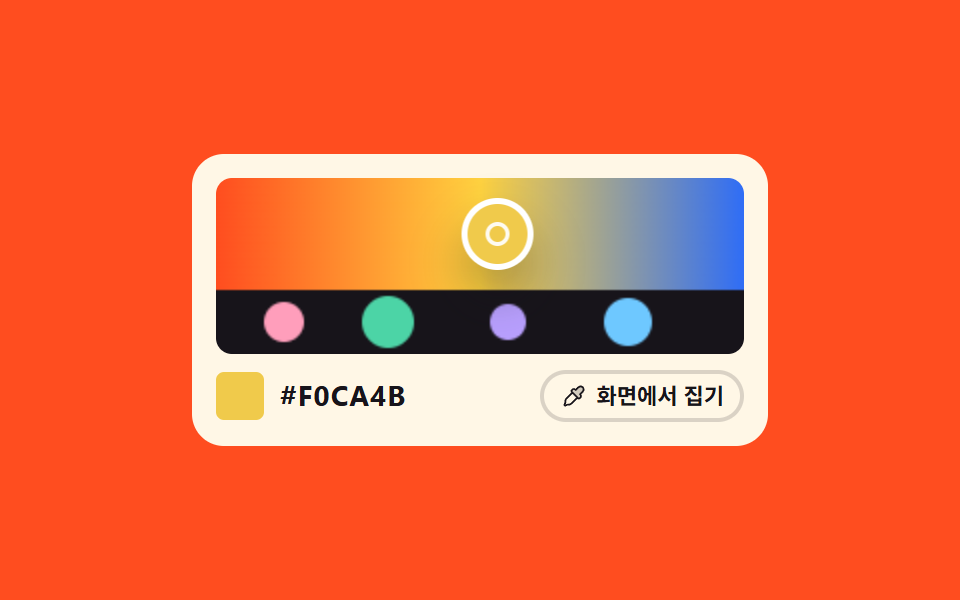

09Eyedropper that lifts a pixel off the artwork

<main class="stage">
  <div class="ed is-demo">
    <div class="ed__box" id="edBox" role="slider" tabindex="0"
         aria-label="Pick a color off the artwork"
         aria-valuemin="0" aria-valuemax="264" aria-valuenow="40"
         aria-valuetext="가로 40픽셀 지점, #FF7528">
      <canvas class="ed__canvas" id="edCanvas" width="264" height="88"
              role="img" aria-label="A color band running from orange through yellow to blue"></canvas>
      <span class="ed__loupe" id="edLoupe" aria-hidden="true"></span>
    </div>
    <div class="ed__foot">
      <span class="ed__chip" aria-hidden="true"></span>
      <span class="ed__hex" aria-hidden="true"></span>
      <button type="button" class="ed__pick" id="edPick">
        <svg viewBox="0 0 256 256" fill="currentColor" aria-hidden="true"><path d="M207.8,87.6l-25.37,25.53,4.89,4.88a16,16,0,0,1,0,22.64l-9,9a8,8,0,0,1-11.32,0l-60.68-60.7a8,8,0,0,1,0-11.32l9-9a16,16,0,0,1,22.63,0l4.88,4.89,25-25.11c10.79-10.79,28.37-11.45,39.45-1A28,28,0,0,1,207.8,87.6Z" opacity="0.2"/><path d="M224,67.3a35.79,35.79,0,0,0-11.26-25.66c-14-13.28-36.72-12.78-50.62,1.13L142.8,62.2a24,24,0,0,0-33.14.77l-9,9a16,16,0,0,0,0,22.64l2,2.06-51,51a39.75,39.75,0,0,0-10.53,38l-8,18.41A13.68,13.68,0,0,0,36,219.3a15.92,15.92,0,0,0,17.71,3.35L71.23,215a39.89,39.89,0,0,0,37.06-10.75l51-51,2.06,2.06a16,16,0,0,0,22.62,0l9-9a24,24,0,0,0,.74-33.18l19.75-19.87A35.75,35.75,0,0,0,224,67.3ZM97,193a24,24,0,0,1-24,6,8,8,0,0,0-5.55.31l-18.1,7.91L57,189.41a8,8,0,0,0,.25-5.75A23.88,23.88,0,0,1,63,159l51-51,33.94,34ZM202.13,82l-25.37,25.52a8,8,0,0,0,0,11.3l4.89,4.89a8,8,0,0,1,0,11.32l-9,9L112,83.26l9-9a8,8,0,0,1,11.31,0l4.89,4.89a8,8,0,0,0,5.65,2.34h0a8,8,0,0,0,5.66-2.36l24.94-25.09c7.81-7.82,20.5-8.18,28.29-.81a20,20,0,0,1,.39,28.7Z"/></svg>
        <span>Pick from screen</span>
      </button>
    </div>
    <span class="ed__live" aria-live="polite"></span>
  </div>
</main>

@use "../../../../site/static/demo-tokens" as *;

// 스포이드 — 캔버스에 그린 그림에서 한 점의 RGBA 를 getImageData 로 읽어 온다.
// 확대경 색도, 아래 칩도, HEX 글자도 전부 --r --g --b 세 값에서 나온다(계수기가 16진으로 찍는다).
// 미리보기 루프는 확대경의 자리와 세 값을 **같은 퍼센트·같은 linear 이징**으로 돌린다.
// 캔버스 그라디언트는 채널마다 1차 보간이므로, 위치를 선형으로 옮기면 색도 선형으로 따라온다 —
// 그래서 어느 프레임에서도 확대경 색이 그 자리 픽셀과 정확히 같다.
$duration: $dur-loop;
$easing: linear;
$color: $subject-blue;

@include stage($stage-orange);

@property --r { syntax: "<integer>"; inherits: true; initial-value: 255; }
@property --g { syntax: "<integer>"; inherits: true; initial-value: 117; }
@property --b { syntax: "<integer>"; inherits: true; initial-value: 40; }

// 0~15 를 16진 한 자리로 찍는 계수기 눈금. pad 2 "0" 이 0F 처럼 앞자리를 채운다
@counter-style hx {
  system: numeric;
  symbols: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "A" "B" "C" "D" "E" "F";
  pad: 2 "0";
}

.ed {
  position: relative;
  box-sizing: border-box;
  width: 288px;
  max-width: 100%;
  padding: $sp-3;
  border-radius: $r-card;
  background: $subject-cream;
  color: $subject-ink;
  font-family: inherit;
}
.ed * { box-sizing: border-box; }

.ed__box { position: relative; }
.ed__box:focus-visible { outline: 3px solid $color; outline-offset: 3px; }

.ed__canvas {
  display: block;
  width: 264px;
  max-width: 100%;
  height: 88px;
  border-radius: $r-sm;
  cursor: crosshair;
  touch-action: none;
}

// 확대경은 자기 중심이 집은 점 위에 놓인다 — 좌표 이동 뒤 자기 크기의 절반만큼 되민다
.ed__loupe {
  position: absolute;
  left: 0;
  top: 0;
  width: 36px;
  height: 36px;
  border-radius: 50%;
  border: 3px solid #ffffff;
  box-shadow: $shadow-raised;
  background: rgb(var(--r) var(--g) var(--b));
  pointer-events: none;
  transform: translate(40px, 28px) translate(-50%, -50%);
}
.ed__loupe::after {
  content: "";
  position: absolute;
  left: 50%;
  top: 50%;
  width: 8px;
  height: 8px;
  border-radius: 50%;
  border: 2px solid rgba(255, 255, 255, .92);
  transform: translate(-50%, -50%);
}

.ed__foot {
  display: flex;
  align-items: center;
  gap: $sp-2;
  margin-top: $sp-2;
}
.ed__chip {
  width: 24px;
  height: 24px;
  border-radius: $r-xs;
  background: rgb(var(--r) var(--g) var(--b));
}
// HEX 글자 — 값은 --r --g --b 뿐이고 계수기가 표기만 맡는다
.ed__hex {
  counter-set: cr calc(var(--r)) cg calc(var(--g)) cb calc(var(--b));
  font-size: 14px;
  font-weight: 700;
  line-height: 1.2;
  letter-spacing: .04em;
}
.ed__hex::after { content: "#" counter(cr, hx) counter(cg, hx) counter(cb, hx); }

.ed__pick {
  margin-left: auto;
  display: flex;
  align-items: center;
  gap: $sp-1;
  padding: $sp-1 $sp-2;
  border: 2px solid rgba(23, 20, 26, .16);
  border-radius: $r-pill;
  background: transparent;
  color: inherit;
  cursor: pointer;
  font-family: inherit;
  font-size: 11px;
  font-weight: 700;
  line-height: 1.2;
}
.ed__pick svg { flex: 0 0 auto; width: 14px; height: 14px; }
.ed__pick:focus-visible { outline: 3px solid $color; outline-offset: 2px; }

// 화면에는 안 보이되 보조기술에는 읽히는 알림 줄
.ed__live {
  position: absolute;
  width: 1px;
  height: 1px;
  overflow: hidden;
  clip-path: inset(50%);
  white-space: nowrap;
}

// ── 미리보기 루프(정적 규칙 먼저, 그 위에 덧씌움) ─────────────────
// 두 애니메이션의 퍼센트와 이징이 같아야 확대경 색과 그 자리 픽셀이 어긋나지 않는다.
// x = 40 은 띠의 주황 쪽, x = 132 는 가운데 정지점(노랑), x = 224 는 파랑 쪽이다
.ed.is-demo .ed__loupe {
  animation-name: edMove;
  animation-duration: $duration;
  animation-timing-function: $easing;
  animation-iteration-count: infinite;
}
.ed.is-demo {
  animation-name: edColor;
  animation-duration: $duration;
  animation-timing-function: $easing;
  animation-iteration-count: infinite;
}

@keyframes edMove {
  0%        { transform: translate(40px, 28px) translate(-50%, -50%); }
  22.5%     { transform: translate(132px, 28px) translate(-50%, -50%); }
  45%, 55%  { transform: translate(224px, 28px) translate(-50%, -50%); }
  72.5%     { transform: translate(132px, 28px) translate(-50%, -50%); }
  90%, 100% { transform: translate(40px, 28px) translate(-50%, -50%); }
}
@keyframes edColor {
  0%        { --r: 255; --g: 117; --b: 40; }
  22.5%     { --r: 254; --g: 209; --b: 63; }
  45%, 55%  { --r: 109; --g: 139; --b: 191; }
  72.5%     { --r: 254; --g: 209; --b: 63; }
  90%, 100% { --r: 255; --g: 117; --b: 40; }
}

@media (prefers-reduced-motion: reduce) {
  .ed.is-demo,
  .ed.is-demo .ed__loupe {
    animation: none !important;
  }
}

html, body {
  margin: 0;
  overflow: hidden;
}

.stage {
  box-sizing: border-box;
  min-height: 100vh;
  display: grid;
  place-items: center;
  margin: 0;
  background: #ff4d1f;
  font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
  padding: clamp(8px, 4vw, 24px);
}

@property --r {
  syntax: "<integer>";
  inherits: true;
  initial-value: 255;
}
@property --g {
  syntax: "<integer>";
  inherits: true;
  initial-value: 117;
}
@property --b {
  syntax: "<integer>";
  inherits: true;
  initial-value: 40;
}
@counter-style hx {
  system: numeric;
  symbols: "0" "1" "2" "3" "4" "5" "6" "7" "8" "9" "A" "B" "C" "D" "E" "F";
  pad: 2 "0";
}
.ed {
  position: relative;
  box-sizing: border-box;
  width: 288px;
  max-width: 100%;
  padding: 12px;
  border-radius: 16px;
  background: #fff7e6;
  color: #17141a;
  font-family: inherit;
}

.ed * {
  box-sizing: border-box;
}

.ed__box {
  position: relative;
}

.ed__box:focus-visible {
  outline: 3px solid #2f6df6;
  outline-offset: 3px;
}

.ed__canvas {
  display: block;
  width: 264px;
  max-width: 100%;
  height: 88px;
  border-radius: 8px;
  cursor: crosshair;
  touch-action: none;
}

.ed__loupe {
  position: absolute;
  left: 0;
  top: 0;
  width: 36px;
  height: 36px;
  border-radius: 50%;
  border: 3px solid #ffffff;
  box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
  background: rgb(var(--r), var(--g), var(--b));
  pointer-events: none;
  transform: translate(40px, 28px) translate(-50%, -50%);
}

.ed__loupe::after {
  content: "";
  position: absolute;
  left: 50%;
  top: 50%;
  width: 8px;
  height: 8px;
  border-radius: 50%;
  border: 2px solid rgba(255, 255, 255, 0.92);
  transform: translate(-50%, -50%);
}

.ed__foot {
  display: flex;
  align-items: center;
  gap: 8px;
  margin-top: 8px;
}

.ed__chip {
  width: 24px;
  height: 24px;
  border-radius: 4px;
  background: rgb(var(--r), var(--g), var(--b));
}

.ed__hex {
  counter-set: cr calc(var(--r)) cg calc(var(--g)) cb calc(var(--b));
  font-size: 14px;
  font-weight: 700;
  line-height: 1.2;
  letter-spacing: 0.04em;
}

.ed__hex::after {
  content: "#" counter(cr, hx) counter(cg, hx) counter(cb, hx);
}

.ed__pick {
  margin-left: auto;
  display: flex;
  align-items: center;
  gap: 4px;
  padding: 4px 8px;
  border: 2px solid rgba(23, 20, 26, 0.16);
  border-radius: 999px;
  background: transparent;
  color: inherit;
  cursor: pointer;
  font-family: inherit;
  font-size: 11px;
  font-weight: 700;
  line-height: 1.2;
}

.ed__pick svg {
  flex: 0 0 auto;
  width: 14px;
  height: 14px;
}

.ed__pick:focus-visible {
  outline: 3px solid #2f6df6;
  outline-offset: 2px;
}

.ed__live {
  position: absolute;
  width: 1px;
  height: 1px;
  overflow: hidden;
  clip-path: inset(50%);
  white-space: nowrap;
}

.ed.is-demo .ed__loupe {
  animation-name: edMove;
  animation-duration: 2s;
  animation-timing-function: linear;
  animation-iteration-count: infinite;
}

.ed.is-demo {
  animation-name: edColor;
  animation-duration: 2s;
  animation-timing-function: linear;
  animation-iteration-count: infinite;
}

@keyframes edMove {
  0% {
    transform: translate(40px, 28px) translate(-50%, -50%);
  }
  22.5% {
    transform: translate(132px, 28px) translate(-50%, -50%);
  }
  45%, 55% {
    transform: translate(224px, 28px) translate(-50%, -50%);
  }
  72.5% {
    transform: translate(132px, 28px) translate(-50%, -50%);
  }
  90%, 100% {
    transform: translate(40px, 28px) translate(-50%, -50%);
  }
}
@keyframes edColor {
  0% {
    --r: 255;
    --g: 117;
    --b: 40;
  }
  22.5% {
    --r: 254;
    --g: 209;
    --b: 63;
  }
  45%, 55% {
    --r: 109;
    --g: 139;
    --b: 191;
  }
  72.5% {
    --r: 254;
    --g: 209;
    --b: 63;
  }
  90%, 100% {
    --r: 255;
    --g: 117;
    --b: 40;
  }
}
@media (prefers-reduced-motion: reduce) {
  .ed.is-demo,
  .ed.is-demo .ed__loupe {
    animation: none !important;
  }
}

(function () {
  var root = document.querySelector('.ed');
  var box = document.getElementById('edBox');
  var canvas = document.getElementById('edCanvas');
  var loupe = document.getElementById('edLoupe');
  var pickBtn = document.getElementById('edPick');
  var live = root.querySelector('.ed__live');
  var spotFormat = '%x pixels across, %c';
  var liveFormat = 'Picked color %c';
  var ctx = canvas.getContext('2d');
  var sx = 40, sy = 28;

  // 위쪽 56px 은 가로 3색 띠 — 채널마다 1차 보간이라 x 좌표와 색이 정확히 대응한다.
  // 아래 32px 은 장식이라 미리보기 루프의 스포이드 경로가 지나가지 않는다
  function paint() {
    var band = ctx.createLinearGradient(0, 0, 264, 0);
    band.addColorStop(0, '#ff4d1f');
    band.addColorStop(0.5, '#ffd23f');
    band.addColorStop(1, '#2f6df6');
    ctx.fillStyle = band;
    ctx.fillRect(0, 0, 264, 56);
    ctx.fillStyle = '#17141a';
    ctx.fillRect(0, 56, 264, 32);
    var dots = [[34, 72, 10, '#ff9ebb'], [86, 72, 13, '#4cd4a6'], [146, 72, 9, '#b9a0ff'], [206, 72, 12, '#6ec8ff']];
    for (var i = 0; i < dots.length; i++) {
      ctx.beginPath();
      ctx.arc(dots[i][0], dots[i][1], dots[i][2], 0, Math.PI * 2);
      ctx.fillStyle = dots[i][3];
      ctx.fill();
    }
  }

  function toHex(r, g, b) {
    return '#' + [r, g, b].map(function (n) { return n.toString(16).padStart(2, '0'); }).join('').toUpperCase();
  }

  // 글자는 JS 가 쓰지 않는다 — --r --g --b 세 값만 넘기면 계수기가 HEX 를 찍고 칩·루페가 같은 색이 된다
  function setColor(r, g, b) {
    root.style.setProperty('--r', r);
    root.style.setProperty('--g', g);
    root.style.setProperty('--b', b);
    loupe.style.transform = 'translate(' + sx + 'px, ' + sy + 'px) translate(-50%, -50%)';
    var hex = toHex(r, g, b);
    box.setAttribute('aria-valuenow', sx);
    box.setAttribute('aria-valuetext', spotFormat.replace('%x', sx).replace('%c', hex));
    live.textContent = liveFormat.replace('%c', hex);
  }

  function sample() {
    var px = ctx.getImageData(sx, sy, 1, 1).data;   // 그 한 점의 RGBA
    setColor(px[0], px[1], px[2]);
  }

  function moveTo(e) {
    var rect = canvas.getBoundingClientRect();
    sx = Math.round(Math.min(263, Math.max(0, (e.clientX - rect.left) / rect.width * 264)));
    sy = Math.round(Math.min(87, Math.max(0, (e.clientY - rect.top) / rect.height * 88)));
    sample();
  }

  canvas.addEventListener('pointermove', function (e) {
    root.classList.remove('is-demo');
    moveTo(e);
  });
  canvas.addEventListener('pointerdown', function (e) {
    root.classList.remove('is-demo');
    moveTo(e);
  });

  box.addEventListener('keydown', function (e) {
    var step = e.shiftKey ? 16 : 4;
    if (e.key === 'ArrowRight') { sx = Math.min(263, sx + step); }
    else if (e.key === 'ArrowLeft') { sx = Math.max(0, sx - step); }
    else if (e.key === 'ArrowDown') { sy = Math.min(87, sy + step); }
    else if (e.key === 'ArrowUp') { sy = Math.max(0, sy - step); }
    else { return; }
    e.preventDefault();
    root.classList.remove('is-demo');
    sample();
  });

  pickBtn.addEventListener('click', function () {
    root.classList.remove('is-demo');
    // 크롬 계열은 화면 어디서나 집는다. 없는 브라우저는 캔버스 위 집기로 조용히 내려간다
    if ('EyeDropper' in window) {
      new window.EyeDropper().open().then(function (res) {
        var n = parseInt(res.sRGBHex.slice(1), 16);
        setColor((n >> 16) & 255, (n >> 8) & 255, n & 255);
      }).catch(function () { sample(); });
    } else {
      sample();
    }
  });

  paint();
  sample();
})();

// EyedropperCanvas — vanilla 판(run/286/demo/09-color-picker-eyedropper-canvas) 의 React 포트.
// 변수 3개(duration·easing·color)는 props 로 받아 CSS 변수(var(--duration) 등)로 들어온다.
// 상태는 집은 점의 좌표와 RGB 세 값뿐이다. HEX 글자는 JS 가 쓰지 않는다 —
// --r --g --b 만 넘기면 module.scss 의 counter-set 과 @counter-style hx 가 16진으로 찍는다.
import { useEffect, useRef, useState } from "react";
import type { CSSProperties, PointerEvent as ReactPointerEvent } from "react";
import styles from "./EyedropperCanvas.module.scss";

type KeyEvt = { key: string; shiftKey: boolean; preventDefault(): void };

/** 화면 전체에서 집는 브라우저 API. 없는 브라우저에서는 캔버스 위 집기로 내려간다 */
type EyeDropperResult = { sRGBHex: string };
type EyeDropperLike = { open(): Promise<EyeDropperResult> };
type EyeDropperCtor = new () => EyeDropperLike;

export type EyedropperCanvasProps = {
  boxLabel?: string;
  canvasLabel?: string;
  pickLabel?: string;
  /** "가로 %x픽셀 지점, %c" 처럼 자리표시자 둘을 가진 틀 */
  spotFormat?: string;
  /** "집은 색 %c" 처럼 자리표시자 하나를 가진 틀 */
  liveFormat?: string;
  /** 격자 미리보기용 2초 자동 루프. 사람이 손대면 꺼진다 */
  demo?: boolean;
  duration?: number;
  easing?: string;
  color?: string;
};

type Vars = CSSProperties & {
  "--duration"?: string;
  "--easing"?: string;
  "--color"?: string;
  "--r"?: number;
  "--g"?: number;
  "--b"?: number;
};

const WIDTH = 264;
const HEIGHT = 88;

function toHex(r: number, g: number, b: number): string {
  return "#" + [r, g, b].map((n) => n.toString(16).padStart(2, "0")).join("").toUpperCase();
}

export default function EyedropperCanvas({
  boxLabel = "그림 위에서 색 집기",
  canvasLabel = "주황에서 노랑을 지나 파랑으로 가는 색 띠",
  pickLabel = "화면에서 집기",
  spotFormat = "가로 %x픽셀 지점, %c",
  liveFormat = "집은 색 %c",
  demo = true,
  duration = 2000,
  easing = "linear",
  color = "#2f6df6",
}: EyedropperCanvasProps) {
  const [live, setLive] = useState(demo);
  const [spot, setSpot] = useState({ x: 40, y: 28 });
  const [rgb, setRgb] = useState({ r: 255, g: 117, b: 40 });
  const canvasRef = useRef<HTMLCanvasElement>(null);

  // 위쪽 56px 은 가로 3색 띠 — 채널마다 1차 보간이라 x 좌표와 색이 정확히 대응한다.
  // 아래 32px 은 장식이라 미리보기 루프의 스포이드 경로가 지나가지 않는다
  useEffect(() => {
    const node = canvasRef.current;
    if (!node) return;
    const ctx = node.getContext("2d");
    if (!ctx) return;
    const band = ctx.createLinearGradient(0, 0, WIDTH, 0);
    band.addColorStop(0, "#ff4d1f");
    band.addColorStop(0.5, "#ffd23f");
    band.addColorStop(1, "#2f6df6");
    ctx.fillStyle = band;
    ctx.fillRect(0, 0, WIDTH, 56);
    ctx.fillStyle = "#17141a";
    ctx.fillRect(0, 56, WIDTH, 32);
    const dots: [number, number, number, string][] = [
      [34, 72, 10, "#ff9ebb"],
      [86, 72, 13, "#4cd4a6"],
      [146, 72, 9, "#b9a0ff"],
      [206, 72, 12, "#6ec8ff"],
    ];
    dots.forEach(([cx, cy, radius, fill]) => {
      ctx.beginPath();
      ctx.arc(cx, cy, radius, 0, Math.PI * 2);
      ctx.fillStyle = fill;
      ctx.fill();
    });
  }, []);

  function sample(x: number, y: number) {
    const node = canvasRef.current;
    if (!node) return;
    const ctx = node.getContext("2d");
    if (!ctx) return;
    const px = ctx.getImageData(x, y, 1, 1).data; // 그 한 점의 RGBA
    setSpot({ x, y });
    setRgb({ r: px[0], g: px[1], b: px[2] });
  }

  function moveTo(e: ReactPointerEvent<HTMLCanvasElement>) {
    const node = canvasRef.current;
    if (!node) return;
    const rect = node.getBoundingClientRect();
    const x = Math.round(Math.min(WIDTH - 1, Math.max(0, ((e.clientX - rect.left) / rect.width) * WIDTH)));
    const y = Math.round(Math.min(HEIGHT - 1, Math.max(0, ((e.clientY - rect.top) / rect.height) * HEIGHT)));
    setLive(false);
    sample(x, y);
  }

  function keyBox(e: KeyEvt) {
    const step = e.shiftKey ? 16 : 4;
    let { x, y } = spot;
    if (e.key === "ArrowRight") x = Math.min(WIDTH - 1, x + step);
    else if (e.key === "ArrowLeft") x = Math.max(0, x - step);
    else if (e.key === "ArrowDown") y = Math.min(HEIGHT - 1, y + step);
    else if (e.key === "ArrowUp") y = Math.max(0, y - step);
    else return;
    e.preventDefault();
    setLive(false);
    sample(x, y);
  }

  function pickFromScreen() {
    setLive(false);
    // 크롬 계열은 화면 어디서나 집는다. 없는 브라우저는 캔버스 위 집기로 조용히 내려간다
    const ctor = (window as unknown as { EyeDropper?: EyeDropperCtor }).EyeDropper;
    if (ctor) {
      new ctor()
        .open()
        .then((res) => {
          const n = parseInt(res.sRGBHex.slice(1), 16);
          setRgb({ r: (n >> 16) & 255, g: (n >> 8) & 255, b: n & 255 });
        })
        .catch(() => sample(spot.x, spot.y));
    } else {
      sample(spot.x, spot.y);
    }
  }

  const hex = toHex(rgb.r, rgb.g, rgb.b);
  const vars: Vars = {
    "--duration": `${duration}ms`,
    "--easing": easing,
    "--color": color,
    "--r": rgb.r,
    "--g": rgb.g,
    "--b": rgb.b,
  };
  // 확대경은 자기 중심이 집은 점 위에 놓인다 — 좌표 이동 뒤 자기 크기의 절반만큼 되민다
  const loupeStyle: CSSProperties = {
    transform: `translate(${spot.x}px, ${spot.y}px) translate(-50%, -50%)`,
  };

  return (
    <div className={[styles.ed, live ? styles.isDemo : ""].filter(Boolean).join(" ")} style={vars}>
      <div
        className={styles.box}
        role="slider"
        tabIndex={0}
        aria-label={boxLabel}
        aria-valuemin={0}
        aria-valuemax={WIDTH}
        aria-valuenow={spot.x}
        aria-valuetext={spotFormat.replace("%x", String(spot.x)).replace("%c", hex)}
        onKeyDown={keyBox}
      >
        <canvas
          ref={canvasRef}
          className={styles.canvas}
          width={WIDTH}
          height={HEIGHT}
          role="img"
          aria-label={canvasLabel}
          onPointerDown={moveTo}
          onPointerMove={moveTo}
        />
        <span className={styles.loupe} style={loupeStyle} aria-hidden="true" />
      </div>
      <div className={styles.foot}>
        <span className={styles.chip} aria-hidden="true" />
        <span className={styles.hex} aria-hidden="true" />
        <button type="button" className={styles.pick} onClick={pickFromScreen}>
          <svg viewBox="0 0 256 256" fill="currentColor" aria-hidden="true">
            <path
              d="M207.8,87.6l-25.37,25.53,4.89,4.88a16,16,0,0,1,0,22.64l-9,9a8,8,0,0,1-11.32,0l-60.68-60.7a8,8,0,0,1,0-11.32l9-9a16,16,0,0,1,22.63,0l4.88,4.89,25-25.11c10.79-10.79,28.37-11.45,39.45-1A28,28,0,0,1,207.8,87.6Z"
              opacity="0.2"
            />
            <path d="M224,67.3a35.79,35.79,0,0,0-11.26-25.66c-14-13.28-36.72-12.78-50.62,1.13L142.8,62.2a24,24,0,0,0-33.14.77l-9,9a16,16,0,0,0,0,22.64l2,2.06-51,51a39.75,39.75,0,0,0-10.53,38l-8,18.41A13.68,13.68,0,0,0,36,219.3a15.92,15.92,0,0,0,17.71,3.35L71.23,215a39.89,39.89,0,0,0,37.06-10.75l51-51,2.06,2.06a16,16,0,0,0,22.62,0l9-9a24,24,0,0,0,.74-33.18l19.75-19.87A35.75,35.75,0,0,0,224,67.3ZM97,193a24,24,0,0,1-24,6,8,8,0,0,0-5.55.31l-18.1,7.91L57,189.41a8,8,0,0,0,.25-5.75A23.88,23.88,0,0,1,63,159l51-51,33.94,34ZM202.13,82l-25.37,25.52a8,8,0,0,0,0,11.3l4.89,4.89a8,8,0,0,1,0,11.32l-9,9L112,83.26l9-9a8,8,0,0,1,11.31,0l4.89,4.89a8,8,0,0,0,5.65,2.34h0a8,8,0,0,0,5.66-2.36l24.94-25.09c7.81-7.82,20.5-8.18,28.29-.81a20,20,0,0,1,.39,28.7Z" />
          </svg>
          <span>{pickLabel}</span>
        </button>
      </div>
      <span className={styles.liveRegion} aria-live="polite">
        {liveFormat.replace("%c", hex)}
      </span>
    </div>
  );
}
