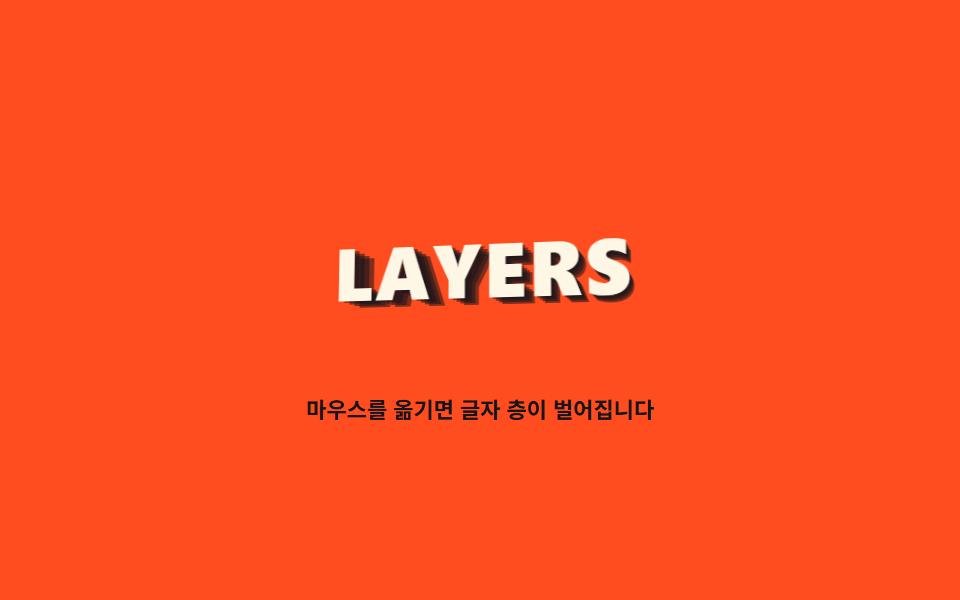

05Letters floating in layers

<main class="stage">
<div class="tx is-demo" id="tx">
  <div class="tx__scene" id="scene" role="img" aria-label="The word LAYERS floating in five copies and tilting with the pointer">
    <div class="tx__stack" id="stack">
      <span class="tx__layer" aria-hidden="true">LAYERS</span>
      <span class="tx__layer" aria-hidden="true">LAYERS</span>
      <span class="tx__layer" aria-hidden="true">LAYERS</span>
      <span class="tx__layer" aria-hidden="true">LAYERS</span>
      <span class="tx__layer tx__layer--top">LAYERS</span>
    </div>
  </div>
  <p class="tx__hint">Move the pointer and the letter layers spread</p>
</div>
</main>

@use "../../../../site/static/demo-tokens" as *;

// 층층이 뜬 3D 글자 — 같은 낱말을 다섯 겹 겹치고 겹마다 translateZ 를 달리해 두께를 만든다.
// 실제 기울기는 JS 가 포인터 좌표를 rotateX ±10도 · rotateY ±18도 로 바꿔 묶음에 준다.
// 격자 미리보기(.is-demo)는 같은 범위를 @keyframes 궤적으로 왕복시킨다.

$duration: $dur-loop;
$easing: linear;
$color: $subject-cream;

@include stage($stage-orange);

.tx { display: grid; justify-items: center; gap: $sp-4; width: 100%; }

.tx__scene {
  display: grid; place-items: center;
  width: clamp(200px, 54vw, 268px); height: clamp(72px, 19vw, 92px);
  perspective: 520px;
}
.tx__scene:focus-visible { outline: 3px solid $subject-ink; outline-offset: $sp-2; border-radius: $r-sm; }

.tx__stack {
  position: relative; transform-style: preserve-3d;
  transform: rotateX(0deg) rotateY(0deg);
}
.tx__layer {
  position: absolute; left: 50%; top: 50%;
  // 겹은 자기 자리에서 뒤로 물러나기만 한다 — 가운데 정렬은 translate 로 먼저 맞춘다
  transform: translate(-50%, -50%) translateZ(var(--z));
  color: rgba($subject-ink, .55);
  font-weight: 800; font-size: clamp(26px, 8vw, 40px); line-height: 1; letter-spacing: .04em;
  white-space: nowrap;
}
.tx__layer:nth-child(1) { --z: -32px; }
.tx__layer:nth-child(2) { --z: -24px; }
.tx__layer:nth-child(3) { --z: -16px; }
.tx__layer:nth-child(4) { --z: -8px; }
.tx__layer--top {
  --z: 0px;
  position: relative; left: auto; top: auto;
  transform: translateZ(0);
  color: $color;
}

.tx__hint { margin: 0; color: $subject-ink; font-weight: 700; font-size: clamp(9px, 2.4vw, 11px); }

// ── 미리보기 루프: 포인터가 왼쪽 위 → 오른쪽 아래로 지나간 것과 같은 궤적.
//    정면(0도)을 느리게 지나고 양 끝에서 빠르게 꺾어 poster 가 납작한 장면으로 뽑히지 않게 한다
.tx.is-demo .tx__stack {
  animation-name: txTilt;
  animation-duration: $duration;
  animation-timing-function: $easing;
  animation-iteration-count: infinite;
}
@keyframes txTilt {
  0%   { transform: rotateX(10deg) rotateY(-18deg); }
  8%   { transform: rotateX(7deg) rotateY(-8deg); }
  26%  { transform: rotateX(2deg) rotateY(-2deg); }
  44%  { transform: rotateX(-2deg) rotateY(2deg); }
  52%  { transform: rotateX(-7deg) rotateY(8deg); }
  58%  { transform: rotateX(-10deg) rotateY(18deg); }
  66%  { transform: rotateX(-7deg) rotateY(8deg); }
  84%  { transform: rotateX(0deg) rotateY(0deg); }
  94%  { transform: rotateX(7deg) rotateY(-8deg); }
  100% { transform: rotateX(10deg) rotateY(-18deg); }
}

@media (max-width: 340px) {
  .tx { gap: $sp-3; }
  .tx__layer:nth-child(1) { --z: -24px; }
  .tx__layer:nth-child(2) { --z: -18px; }
  .tx__layer:nth-child(3) { --z: -12px; }
  .tx__layer:nth-child(4) { --z: -6px; }
}

@media (prefers-reduced-motion: reduce) {
  // 움직임 없이 층이 보이는 각도로 세운다
  .tx.is-demo .tx__stack { animation: none !important; transform: rotateX(6deg) rotateY(-14deg) !important; }
}

html, body {
  margin: 0;
  overflow: hidden;
}

.stage {
  box-sizing: border-box;
  min-height: 100vh;
  display: grid;
  place-items: center;
  margin: 0;
  background: #ff4d1f;
  font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
  padding: clamp(8px, 4vw, 24px);
}

.tx {
  display: grid;
  justify-items: center;
  gap: 16px;
  width: 100%;
}

.tx__scene {
  display: grid;
  place-items: center;
  width: clamp(200px, 54vw, 268px);
  height: clamp(72px, 19vw, 92px);
  perspective: 520px;
}

.tx__scene:focus-visible {
  outline: 3px solid #17141a;
  outline-offset: 8px;
  border-radius: 8px;
}

.tx__stack {
  position: relative;
  transform-style: preserve-3d;
  transform: rotateX(0deg) rotateY(0deg);
}

.tx__layer {
  position: absolute;
  left: 50%;
  top: 50%;
  transform: translate(-50%, -50%) translateZ(var(--z));
  color: rgba(23, 20, 26, 0.55);
  font-weight: 800;
  font-size: clamp(26px, 8vw, 40px);
  line-height: 1;
  letter-spacing: 0.04em;
  white-space: nowrap;
}

.tx__layer:nth-child(1) {
  --z: -32px;
}

.tx__layer:nth-child(2) {
  --z: -24px;
}

.tx__layer:nth-child(3) {
  --z: -16px;
}

.tx__layer:nth-child(4) {
  --z: -8px;
}

.tx__layer--top {
  --z: 0px;
  position: relative;
  left: auto;
  top: auto;
  transform: translateZ(0);
  color: #fff7e6;
}

.tx__hint {
  margin: 0;
  color: #17141a;
  font-weight: 700;
  font-size: clamp(9px, 2.4vw, 11px);
}

.tx.is-demo .tx__stack {
  animation-name: txTilt;
  animation-duration: 2s;
  animation-timing-function: linear;
  animation-iteration-count: infinite;
}

@keyframes txTilt {
  0% {
    transform: rotateX(10deg) rotateY(-18deg);
  }
  8% {
    transform: rotateX(7deg) rotateY(-8deg);
  }
  26% {
    transform: rotateX(2deg) rotateY(-2deg);
  }
  44% {
    transform: rotateX(-2deg) rotateY(2deg);
  }
  52% {
    transform: rotateX(-7deg) rotateY(8deg);
  }
  58% {
    transform: rotateX(-10deg) rotateY(18deg);
  }
  66% {
    transform: rotateX(-7deg) rotateY(8deg);
  }
  84% {
    transform: rotateX(0deg) rotateY(0deg);
  }
  94% {
    transform: rotateX(7deg) rotateY(-8deg);
  }
  100% {
    transform: rotateX(10deg) rotateY(-18deg);
  }
}
@media (max-width: 340px) {
  .tx {
    gap: 12px;
  }
  .tx__layer:nth-child(1) {
    --z: -24px;
  }
  .tx__layer:nth-child(2) {
    --z: -18px;
  }
  .tx__layer:nth-child(3) {
    --z: -12px;
  }
  .tx__layer:nth-child(4) {
    --z: -6px;
  }
}
@media (prefers-reduced-motion: reduce) {
  .tx.is-demo .tx__stack {
    animation: none !important;
    transform: rotateX(6deg) rotateY(-14deg) !important;
  }
}

var tx = document.getElementById('tx');
var scene = document.getElementById('scene');
var stack = document.getElementById('stack');
var aimX = 0, aimY = 0, nowX = 0, nowY = 0, running = false;
var MAX_Y = 18, MAX_X = 10;   // 미리보기 키프레임과 같은 범위

function step() {
  nowX += (aimX - nowX) * 0.14;
  nowY += (aimY - nowY) * 0.14;
  stack.style.transform = 'rotateX(' + nowX.toFixed(2) + 'deg) rotateY(' + nowY.toFixed(2) + 'deg)';
  if (Math.abs(aimX - nowX) < 0.04 && Math.abs(aimY - nowY) < 0.04) { running = false; return; }
  requestAnimationFrame(step);
}

function start() { if (!running) { running = true; requestAnimationFrame(step); } }

scene.addEventListener('pointermove', function (e) {
  tx.classList.remove('is-demo');
  var r = scene.getBoundingClientRect();
  aimY = Math.max(-1, Math.min(1, (e.clientX - r.left) / r.width * 2 - 1)) * MAX_Y;
  aimX = Math.max(-1, Math.min(1, (e.clientY - r.top) / r.height * 2 - 1)) * -MAX_X;
  start();
});
scene.addEventListener('pointerleave', function () { aimX = 0; aimY = 0; start(); });
// 키보드 경로: 화살표로 5도씩 기울인다
scene.setAttribute('tabindex', '0');
scene.addEventListener('keydown', function (e) {
  var keys = { ArrowLeft: [0, -5], ArrowRight: [0, 5], ArrowUp: [5, 0], ArrowDown: [-5, 0] };
  var move = keys[e.key];
  if (!move) { return; }
  e.preventDefault();
  tx.classList.remove('is-demo');
  aimX = Math.max(-MAX_X, Math.min(MAX_X, aimX + move[0]));
  aimY = Math.max(-MAX_Y, Math.min(MAX_Y, aimY + move[1]));
  start();
});

// TextLayers3D — vanilla 판(run/290/demo/05-pointer-3d-text-layers/index.html) 의 React 포트.
// 포인터 좌표를 rotateX ±10도 · rotateY ±18도 로 바꿔 묶음에 주고, 목표값까지 프레임마다 14% 씩 다가간다.
// 목표에 0.04도 안으로 붙으면 루프를 끊어 idle 프레임을 돌리지 않는다. 값·수치는 vanilla 와 같다.
import { useCallback, useEffect, useRef, useState } from "react";
import type { CSSProperties, PointerEvent as ReactPointerEvent } from "react";
import styles from "./TextLayers3D.module.scss";

export type TextLayers3DProps = {
  duration?: number;
  easing?: string;
  color?: string;
};

type Vars = CSSProperties & { "--duration"?: string; "--easing"?: string; "--color"?: string };
// useRef 는 T | null 을 돌려준다. 처음부터 값이 있고 절대 비지 않는 상자는 이렇게 좁혀 쓴다
type Box<T> = { current: T };
type Tilt = { x: number; y: number };
// 키보드 이벤트는 ambient react 타입에 없다 — 쓰는 두 가지만 지역 타입으로 적는다
type KeyEvt = { key: string; preventDefault(): void };

const MAX_Y = 18;   // 미리보기 키프레임과 같은 범위
const MAX_X = 10;
const EASE_RATE = 0.14;
const STOP_AT = 0.04;
const KEY_STEP = 5;
const WORD = "LAYERS";
const SCENE_LABEL = "LAYERS 라는 글자가 다섯 겹으로 떠서 마우스를 따라 기우는 모형";
const HINT = "마우스를 옮기면 글자 층이 벌어집니다";

function clamp(value: number, limit: number): number {
  return Math.max(-limit, Math.min(limit, value));
}

export default function TextLayers3D({
  duration = 2000,
  easing = "linear",
  color = "#fff7e6",
}: TextLayers3DProps) {
  const stackRef = useRef<HTMLDivElement | null>(null);
  const aimRef = useRef<Tilt>({ x: 0, y: 0 }) as Box<Tilt>;
  const nowRef = useRef<Tilt>({ x: 0, y: 0 }) as Box<Tilt>;
  const runningRef = useRef<boolean>(false) as Box<boolean>;
  const frameRef = useRef<number>(0) as Box<number>;
  const [demo, setDemo] = useState(true);
  const vars: Vars = { "--duration": `${duration}ms`, "--easing": easing, "--color": color };

  const step = useCallback((): void => {
    const aim = aimRef.current;
    const now = nowRef.current;
    now.x += (aim.x - now.x) * EASE_RATE;
    now.y += (aim.y - now.y) * EASE_RATE;
    const stack = stackRef.current;
    if (stack) {
      stack.style.transform = "rotateX(" + now.x.toFixed(2) + "deg) rotateY(" + now.y.toFixed(2) + "deg)";
    }
    if (Math.abs(aim.x - now.x) < STOP_AT && Math.abs(aim.y - now.y) < STOP_AT) {
      runningRef.current = false;
      return;
    }
    frameRef.current = requestAnimationFrame(step);
  }, []);

  const start = useCallback((): void => {
    if (!runningRef.current) {
      runningRef.current = true;
      frameRef.current = requestAnimationFrame(step);
    }
  }, [step]);

  useEffect(() => {
    return () => cancelAnimationFrame(frameRef.current);
  }, []);

  function onPointerMove(event: ReactPointerEvent<HTMLDivElement>): void {
    setDemo(false);
    const r = event.currentTarget.getBoundingClientRect();
    aimRef.current.y = Math.max(-1, Math.min(1, ((event.clientX - r.left) / r.width) * 2 - 1)) * MAX_Y;
    aimRef.current.x = Math.max(-1, Math.min(1, ((event.clientY - r.top) / r.height) * 2 - 1)) * -MAX_X;
    start();
  }

  function onPointerLeave(): void {
    aimRef.current.x = 0;
    aimRef.current.y = 0;
    start();
  }

  // 키보드 경로: 화살표로 5도씩 기울인다
  function onKeyDown(event: KeyEvt): void {
    const keys: { [key: string]: [number, number] } = {
      ArrowLeft: [0, -KEY_STEP],
      ArrowRight: [0, KEY_STEP],
      ArrowUp: [KEY_STEP, 0],
      ArrowDown: [-KEY_STEP, 0],
    };
    const move = keys[event.key];
    if (!move) return;
    event.preventDefault();
    setDemo(false);
    aimRef.current.x = clamp(aimRef.current.x + move[0], MAX_X);
    aimRef.current.y = clamp(aimRef.current.y + move[1], MAX_Y);
    start();
  }

  const cls = [styles.root, demo ? styles.isDemo : ""].filter(Boolean).join(" ");
  return (
    <main className={styles.stage}>
      <div className={cls} style={vars}>
        <div
          className={styles.scene}
          role="img"
          aria-label={SCENE_LABEL}
          tabIndex={0}
          onPointerMove={onPointerMove}
          onPointerLeave={onPointerLeave}
          onKeyDown={onKeyDown}
        >
          <div className={styles.stack} ref={stackRef}>
            <span className={styles.layer} aria-hidden="true">{WORD}</span>
            <span className={styles.layer} aria-hidden="true">{WORD}</span>
            <span className={styles.layer} aria-hidden="true">{WORD}</span>
            <span className={styles.layer} aria-hidden="true">{WORD}</span>
            <span className={`${styles.layer} ${styles.layerTop}`}>{WORD}</span>
          </div>
        </div>
        <p className={styles.hint}>{HINT}</p>
      </div>
    </main>
  );
}
