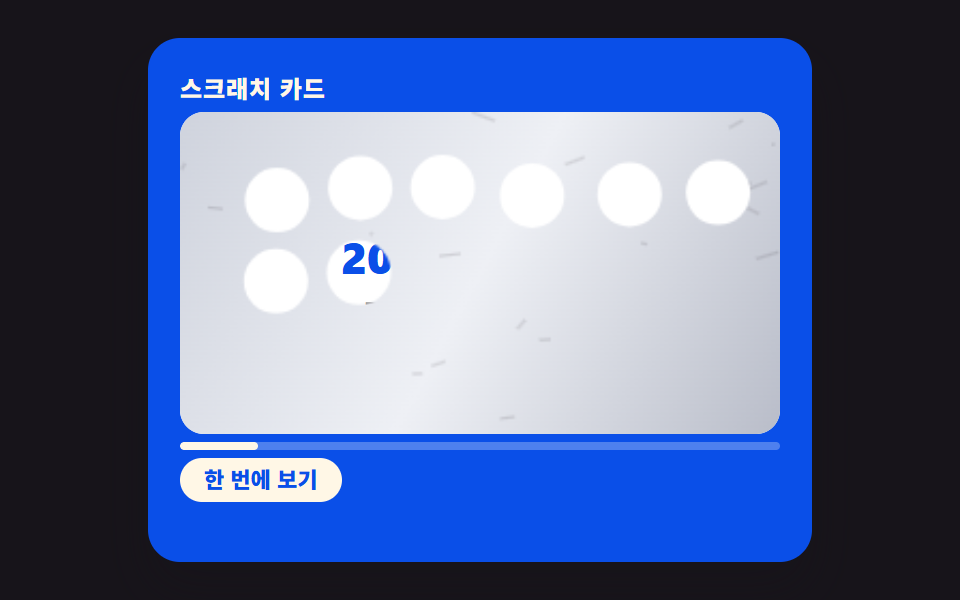

스크래치 카드 리빌 9가지 — 긁은 면적을 픽셀로 계산하기
관찰 기록 09:00 — 손끝이 닿자마자 03번 은박 조각이 중력을 받아 튀어 나간다. 09:04 — 06번 진행 링이 62%에서 멈춰 채워지지 않는다. 09:07 — 09번 화면 속 카드 전부가 한 번에 열린다. 스크래치 카드 리빌 아홉 가지를 지운 픽셀 수 하나로 만든 결과다.
02 scratch-card-reveal-foil-noise-texture
03 scratch-card-reveal-flake-gravity-particle
04 scratch-card-reveal-radial-wipe-lerp
05 scratch-card-reveal-multitouch-pointer
06 scratch-card-reveal-progress-ring-sync
07 scratch-card-reveal-prize-confetti-burst
08 scratch-card-reveal-keyboard-fallback
09 scratch-card-reveal-hero-multi-card-scene
자동 재생 · 눌러서 해당 항목으로 · 전부 한 zip
- 01 긁은 면적을 픽셀로 재 자동으로 벗겨지는 카드

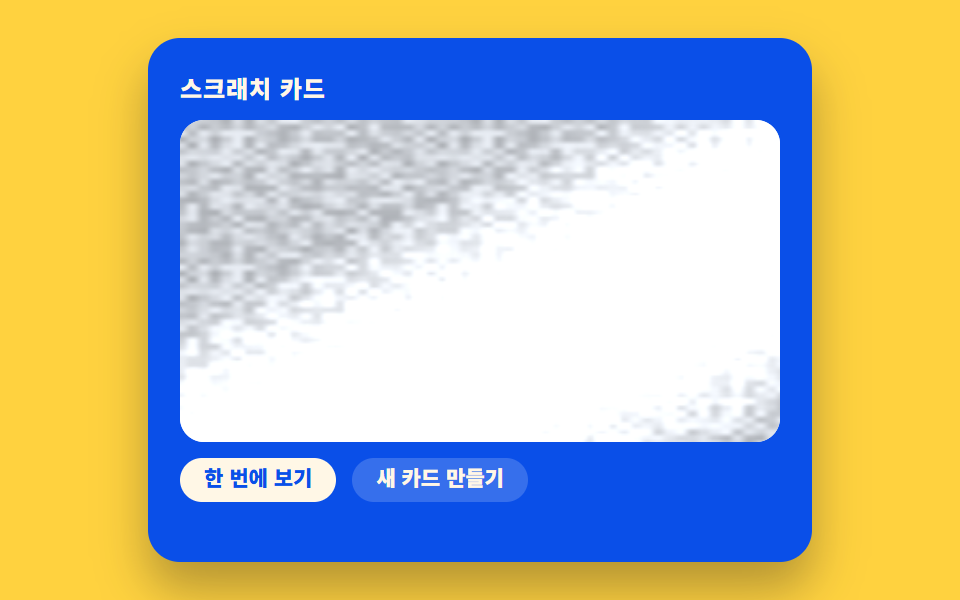

- 02 매번 다른 무늬로 그려지는 은박 질감

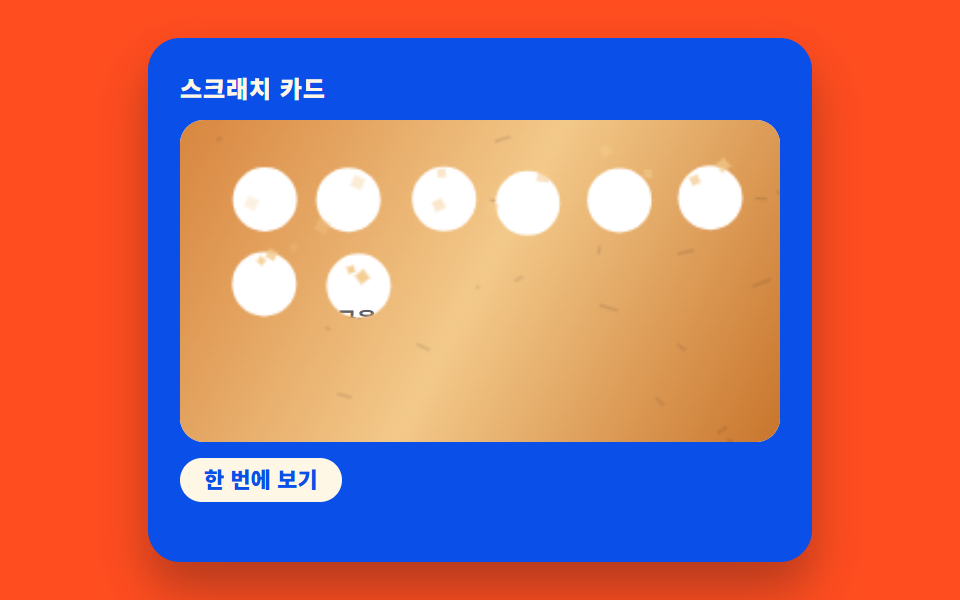

- 03 중력을 받아 튕겨 나가는 은박 조각

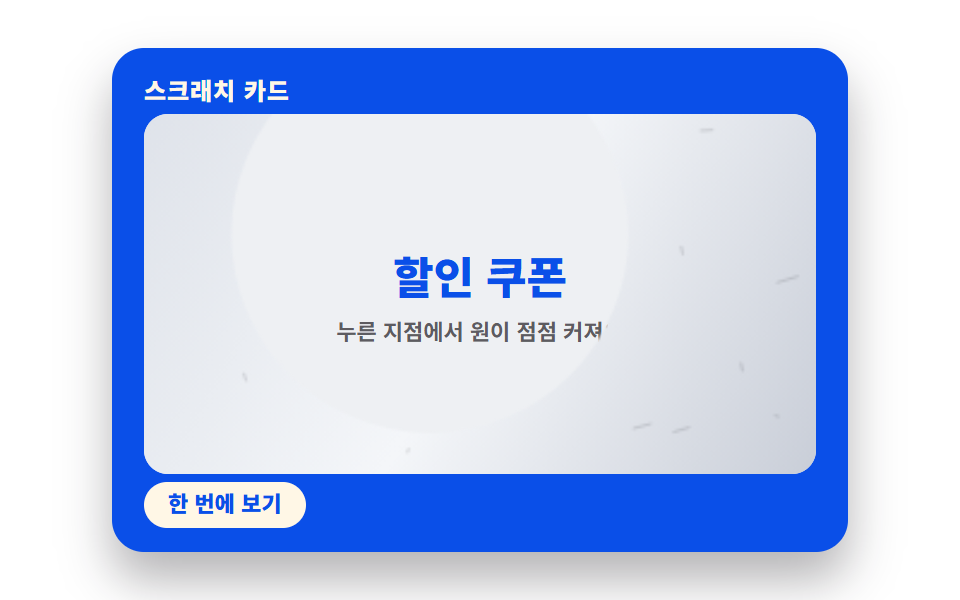

- 04 중심에서 원형으로 번지는 리빌 반경

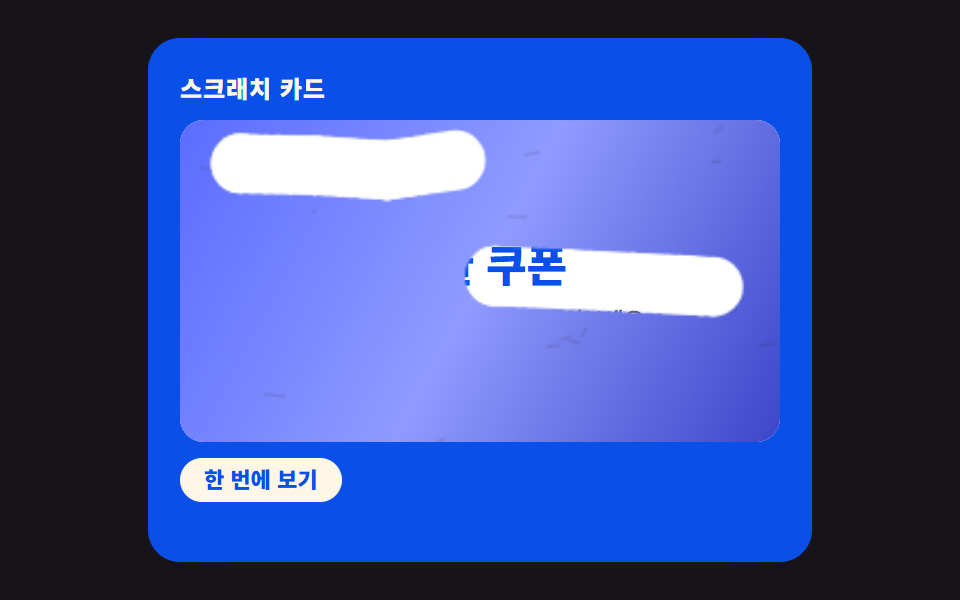

- 05 두 손가락이 각자 지우는 다중 터치 긁기

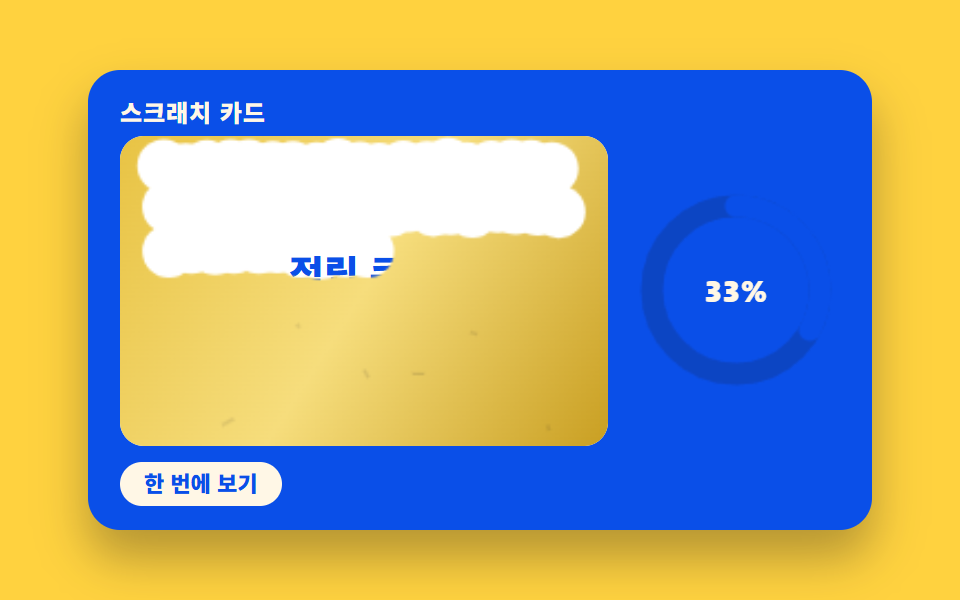

- 06 긁은 비율에 맞춰 채워지는 진행 링

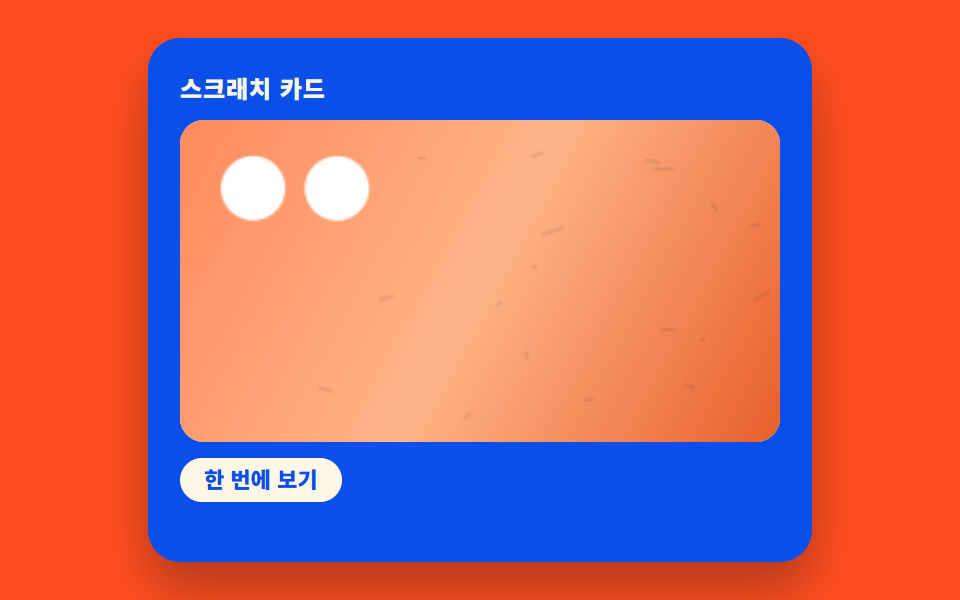

- 07 완전히 벗겨지면 터지는 컨페티

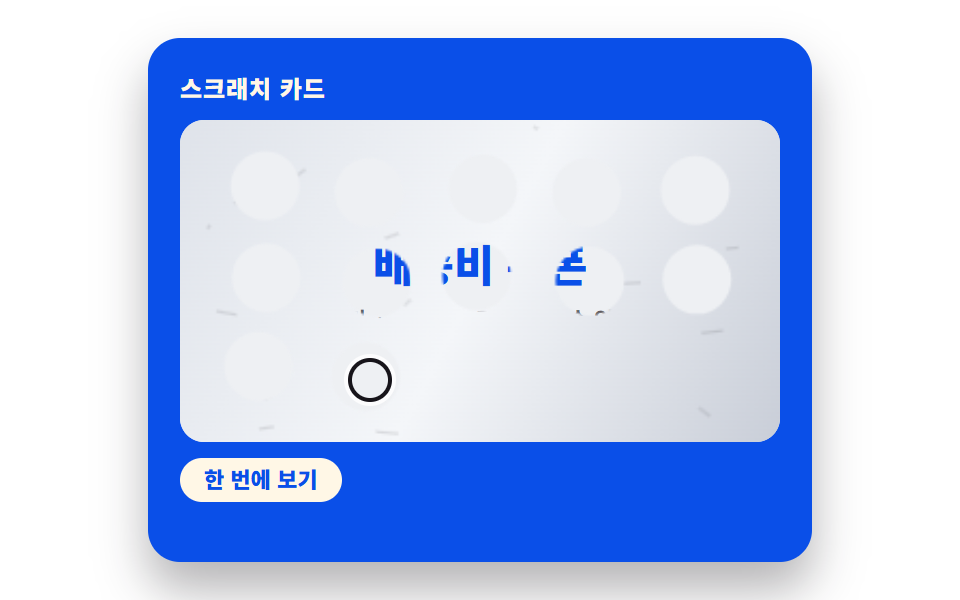

- 08 방향키로도 같은 결과를 여는 대체 경로

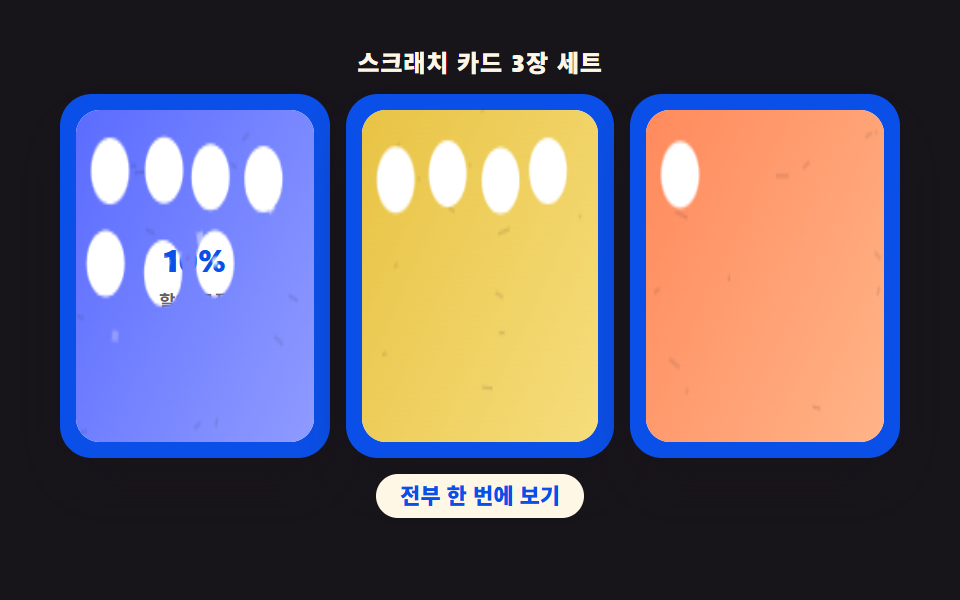

- 09 여러 장을 한 화면에 배열한 히어로 장면
스크래치 카드 9가지 — 긁은 면적 값 하나가 리빌을 어떻게 바꾸는가
아홉 항목 모두 은박 캔버스에서 지워진 픽셀 비율 하나를 계산해 쓰지만, 그 값을 어디에 연결하느냐에 따라 화면에서 다르게 보인다. 자동으로 벗겨지는 항목이 있고, 진행 링을 채우는 항목이 있고, 조각이나 컨페티 같은 별도의 물리 연출로 이어지는 항목도 있다. 모두 seedRand로 고정한 난수만 쓰고 외부 이미지나 라이브러리 없이 캔버스 계산만으로 은박과 조각을 그린다. 같은 픽셀 계산 축은 html5 canvas 애니메이션 9종 — 물방울·블랙홀 특수효과의 getImageData 활용에서도 확인할 수 있다.
패턴별 코드
아래 아홉 조각은 각 항목의 판정을 가르는 계산부만 옮긴 발췌이고, 실제 스크래치 카드 제작에 쓸 전체 코드와 은박 이미지는 압축 파일에 있다.
01긁은 면적을 픽셀로 재 자동으로 벗겨지는 카드
긁은 면적을 픽셀로 재 자동으로 벗겨지는 카드다. clearedPixelRatio가 getImageData로 은박 알파값을 한 픽셀씩 세어 지워진 비율을 구하고, 그 값이 SCRATCH_REVEAL_THRESHOLD_PCT를 넘으면 autoPeelRemaining이 나머지 은박을 한 번에 벗긴다. 쿠폰을 즉시 확인하는 카드에 쓴다.
<main class="stage">
<div class="scv is-demo" id="scv">
<div class="scv__card">
<p class="scv__label">스크래치 카드</p>
<div class="scv__zone" id="zone">
<div class="scv__prize">
<p class="scv__prizeTitle">20% 할인 쿠폰</p>
<p class="scv__prizeSub">긁어서 결과를 확인하세요</p>
</div>
<canvas class="scv__foil" id="foil" width="280" height="150" aria-hidden="true"></canvas>
</div>
<div class="scv__meter" aria-hidden="true"><div class="scv__meterFill" id="meterFill"></div></div>
<button type="button" class="scv__reveal" id="revealBtn">한 번에 보기</button>
<p class="scv__live" id="live" aria-live="polite"></p>
</div>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 스크래치 카드 01 — 실제 긁기는 canvas destination-out. 긁힌 알파 픽셀 비율을
// clearedPixelRatio() 로 계산해 SCRATCH_REVEAL_THRESHOLD_PCT 를 넘으면 autoPeelRemaining() 이
// 나머지를 한 번에 지운다. 격자 미리보기(.is-demo)는 같은 함수를 스케줄로 호출한다.
@include stage($stage-ink);
.scv { display: flex; justify-content: center; width: 100%; }
.scv__card {
width: min(100%, 300px); background: $subject-blue-deep; color: $subject-cream;
border-radius: $r-card; box-shadow: $shadow-raised; padding: $sp-4;
}
.scv__label { margin: 0 0 $sp-1; font-weight: 800; font-size: 12px; letter-spacing: .04em; }
.scv__zone {
position: relative; border-radius: $r-control; overflow: hidden;
aspect-ratio: 280 / 150; background: $stage-paper;
}
.scv__prize {
position: absolute; inset: 0; display: flex; flex-direction: column; align-items: center;
justify-content: center; gap: $sp-1; text-align: center; padding: $sp-2;
}
.scv__prizeTitle { margin: 0; font-weight: 800; font-size: clamp(18px, 6vw, 22px); color: $subject-blue-deep; }
.scv__prizeSub { margin: 0; font-weight: 700; font-size: 11px; color: rgba(23, 20, 26, .68); }
.scv__foil { position: absolute; inset: 0; width: 100%; height: 100%; touch-action: none; }
.scv.is-open .scv__foil { visibility: hidden; }
.scv__meter { margin-top: $sp-1; height: $sp-1; border-radius: $r-pill; background: rgba(255, 255, 255, .28); overflow: hidden; }
.scv__meterFill { height: 100%; width: 0%; background: $subject-cream; border-radius: inherit; }
.scv__reveal {
margin-top: $sp-1; border: 0; cursor: pointer; background: $subject-cream; color: $subject-blue-deep;
border-radius: $r-pill; font-family: inherit; font-weight: 800; font-size: 11px; padding: $sp-1 $sp-3; line-height: 1.3;
}
.scv__reveal:focus-visible { outline: 3px solid $stage-paper; outline-offset: 2px; }
.scv__live { margin: $sp-1 0 0; min-height: 1em; font-weight: 700; font-size: 10px; color: $subject-cream; }
@media (max-width: 340px) {
.scv__card { padding: $sp-3; }
.scv__prizeTitle { font-size: 16px; }
}
@media (max-height: 220px) {
.stage { padding: $sp-2; }
.scv__card { padding: $sp-2 $sp-3; }
.scv__label { margin: 0 0 $sp-1; }
.scv__zone { aspect-ratio: 280 / 76; }
.scv__meter { margin-top: $sp-1; }
.scv__reveal { margin-top: $sp-1; }
.scv__live { margin-top: $sp-1; min-height: .9em; }
}
@media (prefers-reduced-motion: reduce) {
.scv { cursor: default; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #17141a;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.scv {
display: flex;
justify-content: center;
width: 100%;
}
.scv__card {
width: min(100%, 300px);
background: #0a4fe8;
color: #fff7e6;
border-radius: 16px;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
padding: 16px;
}
.scv__label {
margin: 0 0 4px;
font-weight: 800;
font-size: 12px;
letter-spacing: 0.04em;
}
.scv__zone {
position: relative;
border-radius: 12px;
overflow: hidden;
aspect-ratio: 280/150;
background: #ffffff;
}
.scv__prize {
position: absolute;
inset: 0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
text-align: center;
padding: 8px;
}
.scv__prizeTitle {
margin: 0;
font-weight: 800;
font-size: clamp(18px, 6vw, 22px);
color: #0a4fe8;
}
.scv__prizeSub {
margin: 0;
font-weight: 700;
font-size: 11px;
color: rgba(23, 20, 26, 0.68);
}
.scv__foil {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
touch-action: none;
}
.scv.is-open .scv__foil {
visibility: hidden;
}
.scv__meter {
margin-top: 4px;
height: 4px;
border-radius: 999px;
background: rgba(255, 255, 255, 0.28);
overflow: hidden;
}
.scv__meterFill {
height: 100%;
width: 0%;
background: #fff7e6;
border-radius: inherit;
}
.scv__reveal {
margin-top: 4px;
border: 0;
cursor: pointer;
background: #fff7e6;
color: #0a4fe8;
border-radius: 999px;
font-family: inherit;
font-weight: 800;
font-size: 11px;
padding: 4px 12px;
line-height: 1.3;
}
.scv__reveal:focus-visible {
outline: 3px solid #ffffff;
outline-offset: 2px;
}
.scv__live {
margin: 4px 0 0;
min-height: 1em;
font-weight: 700;
font-size: 10px;
color: #fff7e6;
}
@media (max-width: 340px) {
.scv__card {
padding: 12px;
}
.scv__prizeTitle {
font-size: 16px;
}
}
@media (max-height: 220px) {
.stage {
padding: 8px;
}
.scv__card {
padding: 8px 12px;
}
.scv__label {
margin: 0 0 4px;
}
.scv__zone {
aspect-ratio: 280/76;
}
.scv__meter {
margin-top: 4px;
}
.scv__reveal {
margin-top: 4px;
}
.scv__live {
margin-top: 4px;
min-height: 0.9em;
}
}
@media (prefers-reduced-motion: reduce) {
.scv {
cursor: default;
}
}(function () {
// 기법: 긁을 때마다 canvas getImageData 로 지워진 알파 픽셀 수를 세어 전체 대비 비율을
// 계산한다. 그 비율이 SCRATCH_REVEAL_THRESHOLD_PCT 를 넘으면 나머지 은박을 한 번에
// destination-out 으로 지워 자동으로 카드를 연다 — 픽셀 계산 하나가 판정을 만든다.
var root = document.getElementById('scv');
var zone = document.getElementById('zone');
var foil = document.getElementById('foil');
var ctx = foil.getContext('2d');
var meterFill = document.getElementById('meterFill');
var revealBtn = document.getElementById('revealBtn');
var live = document.getElementById('live');
var SCRATCH_REVEAL_THRESHOLD_PCT = 50;
var SCRATCH_BRUSH_R = 15;
var opened = false;
function seedRand(seed) {
var s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
var foilRand = seedRand(424011);
function paintFoil() {
ctx.globalCompositeOperation = 'source-over';
ctx.clearRect(0, 0, foil.width, foil.height);
var grad = ctx.createLinearGradient(0, 0, foil.width, foil.height);
grad.addColorStop(0, '#cfd3dd');
grad.addColorStop(.5, '#eef0f5');
grad.addColorStop(1, '#b9bdc9');
ctx.fillStyle = grad;
ctx.fillRect(0, 0, foil.width, foil.height);
ctx.strokeStyle = 'rgba(23,20,26,.16)';
ctx.lineWidth = 1;
for (var i = 0; i < 22; i += 1) {
var x = foilRand() * foil.width, y = foilRand() * foil.height;
ctx.beginPath();
ctx.moveTo(x, y);
ctx.lineTo(x + (foilRand() * 22 - 11), y + (foilRand() * 8 - 4));
ctx.stroke();
}
}
function scratchAt(x, y) {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
}
function clearedPixelRatio() {
var data = ctx.getImageData(0, 0, foil.width, foil.height).data;
var clear = 0, total = data.length / 4;
for (var i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
function updateMeter(ratio) {
meterFill.style.width = Math.round(ratio * 100) + '%';
}
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, foil.width, foil.height);
updateMeter(1);
root.classList.add('is-open');
live.textContent = '20% 할인 쿠폰이 열렸어요';
}
function autoPeelRemaining(ratio) {
if (ratio * 100 >= SCRATCH_REVEAL_THRESHOLD_PCT) openCard();
}
function pos(e) {
var r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (foil.width / r.width), y: (e.clientY - r.top) * (foil.height / r.height) };
}
paintFoil();
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var dragging = false;
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
dragging = true;
var p = pos(e);
scratchAt(p.x, p.y);
var ratio = clearedPixelRatio();
updateMeter(ratio);
autoPeelRemaining(ratio);
if (foil.setPointerCapture) foil.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (!dragging || opened) return;
var p = pos(e);
scratchAt(p.x, p.y);
var ratio = clearedPixelRatio();
updateMeter(ratio);
autoPeelRemaining(ratio);
});
window.addEventListener('pointerup', function () { dragging = false; });
revealBtn.addEventListener('click', function () {
root.classList.remove('is-demo');
openCard();
});
// 격자 미리보기 — 드래그 없이 같은 scratchAt·clearedPixelRatio 경로를 스케줄대로 호출한다
var demoRand = seedRand(424012);
var demoPath = [];
(function buildDemoPath() {
var n = 24;
for (var i = 0; i < n; i += 1) {
demoPath.push({
t: 220 + i * 78,
x: (foil.width * 0.16) + (i % 6) * (foil.width * 0.145) + (demoRand() - .5) * 8,
y: (foil.height * 0.26) + Math.floor(i / 6) * (foil.height * 0.24) + (demoRand() - .5) * 8
});
}
})();
var DEMO_LOOP_MS = 3600;
var demoStep = 0;
function resetDemo() {
opened = false;
root.classList.remove('is-open');
paintFoil();
updateMeter(0);
demoStep = 0;
}
function runDemo(tMod) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
var p = demoPath[demoStep];
scratchAt(p.x, p.y);
demoStep += 1;
}
var ratio = clearedPixelRatio();
updateMeter(ratio);
autoPeelRemaining(ratio);
}
if (reduce) root.classList.remove('is-demo');
var elapsed = 0;
var lastTs = null;
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
requestAnimationFrame(tick);
}
updateMeter(0);
requestAnimationFrame(tick);
})();import { useEffect, useRef } from "react";
import styles from "./ScratchCardRevealPixelThresholdAutopeel.module.scss";
export default function ScratchCardRevealPixelThresholdAutopeel() {
const rootRef = useRef<HTMLDivElement>(null);
const zoneRef = useRef<HTMLDivElement>(null);
const foilRef = useRef<HTMLCanvasElement>(null);
const meterRef = useRef<HTMLDivElement>(null);
const liveRef = useRef<HTMLParagraphElement>(null);
const revealBtnRef = useRef<HTMLButtonElement>(null);
useEffect(() => {
const root = rootRef.current;
const zone = zoneRef.current;
const foil = foilRef.current;
const meterFill = meterRef.current;
const live = liveRef.current;
const revealBtn = revealBtnRef.current;
if (!root || !zone || !foil || !meterFill || !live || !revealBtn) return;
const ctx = foil.getContext("2d");
if (!ctx) return;
const SCRATCH_REVEAL_THRESHOLD_PCT = 50;
const SCRATCH_BRUSH_R = 15;
let opened = false;
function seedRand(seed: number) {
let s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
const foilRand = seedRand(424011);
function paintFoil() {
ctx!.globalCompositeOperation = "source-over";
ctx!.clearRect(0, 0, foil!.width, foil!.height);
const grad = ctx!.createLinearGradient(0, 0, foil!.width, foil!.height);
grad.addColorStop(0, "#cfd3dd");
grad.addColorStop(.5, "#eef0f5");
grad.addColorStop(1, "#b9bdc9");
ctx!.fillStyle = grad;
ctx!.fillRect(0, 0, foil!.width, foil!.height);
ctx!.strokeStyle = "rgba(23,20,26,.16)";
ctx!.lineWidth = 1;
for (let i = 0; i < 22; i += 1) {
const x = foilRand() * foil!.width, y = foilRand() * foil!.height;
ctx!.beginPath();
ctx!.moveTo(x, y);
ctx!.lineTo(x + (foilRand() * 22 - 11), y + (foilRand() * 8 - 4));
ctx!.stroke();
}
}
function scratchAt(x: number, y: number) {
ctx!.globalCompositeOperation = "destination-out";
ctx!.beginPath();
ctx!.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx!.fill();
}
function clearedPixelRatio() {
const data = ctx!.getImageData(0, 0, foil!.width, foil!.height).data;
let clear = 0;
const total = data.length / 4;
for (let i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
function updateMeter(ratio: number) {
meterFill!.style.width = Math.round(ratio * 100) + "%";
}
function openCard() {
if (opened) return;
opened = true;
ctx!.globalCompositeOperation = "destination-out";
ctx!.fillRect(0, 0, foil!.width, foil!.height);
updateMeter(1);
root!.classList.add("is-open");
live!.textContent = "20% 할인 쿠폰이 열렸어요";
}
function autoPeelRemaining(ratio: number) {
if (ratio * 100 >= SCRATCH_REVEAL_THRESHOLD_PCT) openCard();
}
function pos(e: PointerEvent) {
const r = foil!.getBoundingClientRect();
return { x: (e.clientX - r.left) * (foil!.width / r.width), y: (e.clientY - r.top) * (foil!.height / r.height) };
}
paintFoil();
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
let dragging = false;
function onDown(e: PointerEvent) {
if (opened) return;
root!.classList.remove("is-demo");
dragging = true;
const p = pos(e);
scratchAt(p.x, p.y);
const ratio = clearedPixelRatio();
updateMeter(ratio);
autoPeelRemaining(ratio);
foil!.setPointerCapture?.(e.pointerId);
}
function onMove(e: PointerEvent) {
if (!dragging || opened) return;
const p = pos(e);
scratchAt(p.x, p.y);
const ratio = clearedPixelRatio();
updateMeter(ratio);
autoPeelRemaining(ratio);
}
function onUp() { dragging = false; }
zone.addEventListener("pointerdown", onDown);
zone.addEventListener("pointermove", onMove);
window.addEventListener("pointerup", onUp);
function onReveal() {
root!.classList.remove("is-demo");
openCard();
}
revealBtn.addEventListener("click", onReveal);
const demoRand = seedRand(424012);
type DemoPt = { t: number; x: number; y: number };
const demoPath: DemoPt[] = [];
for (let i = 0; i < 24; i += 1) {
demoPath.push({
t: 220 + i * 78,
x: (foil.width * 0.16) + (i % 6) * (foil.width * 0.145) + (demoRand() - .5) * 8,
y: (foil.height * 0.26) + Math.floor(i / 6) * (foil.height * 0.24) + (demoRand() - .5) * 8
});
}
const DEMO_LOOP_MS = 3600;
let demoStep = 0;
function resetDemo() {
opened = false;
root!.classList.remove("is-open");
paintFoil();
updateMeter(0);
demoStep = 0;
}
function runDemo(tMod: number) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
const p = demoPath[demoStep];
scratchAt(p.x, p.y);
demoStep += 1;
}
const ratio = clearedPixelRatio();
updateMeter(ratio);
autoPeelRemaining(ratio);
}
if (reduce) root.classList.remove("is-demo");
let elapsed = 0;
let lastTs: number | null = null;
let raf = 0;
function tick(ts: number) {
if (lastTs === null) lastTs = ts;
const dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root!.classList.contains("is-demo")) {
elapsed += dt;
const tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
raf = requestAnimationFrame(tick);
}
updateMeter(0);
raf = requestAnimationFrame(tick);
return () => {
cancelAnimationFrame(raf);
zone.removeEventListener("pointerdown", onDown);
zone.removeEventListener("pointermove", onMove);
window.removeEventListener("pointerup", onUp);
revealBtn.removeEventListener("click", onReveal);
};
}, []);
return (
<main className={styles.stage}>
<div className={`${styles.scv} is-demo`} ref={rootRef}>
<div className={styles.scv__card}>
<p className={styles.scv__label}>스크래치 카드</p>
<div className={styles.scv__zone} ref={zoneRef}>
<div className={styles.scv__prize}>
<p className={styles.scv__prizeTitle}>20% 할인 쿠폰</p>
<p className={styles.scv__prizeSub}>긁어서 결과를 확인하세요</p>
</div>
<canvas className={styles.scv__foil} ref={foilRef} width={280} height={150} aria-hidden="true" />
</div>
<div className={styles.scv__meter} aria-hidden="true"><div className={styles.scv__meterFill} ref={meterRef} /></div>
<button type="button" className={styles.scv__reveal} ref={revealBtnRef}>한 번에 보기</button>
<p className={styles.scv__live} ref={liveRef} aria-live="polite"></p>
</div>
</div>
</main>
);
}01 · 긁은 면적을 픽셀로 재 자동으로 벗겨지는 카드 — 측정 누적면적 12.103% · 움직인 프레임 15/23GODRICH 원작 · zip 에 SCSS·React 포함 · 비밀번호 보기
function clearedPixelRatio() {
var data = ctx.getImageData(0, 0, foil.width, foil.height).data;
var clear = 0, total = data.length / 4;
for (var i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
function updateMeter(ratio) {
meterFill.style.width = Math.round(ratio * 100) + '%';
}
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, foil.width, foil.height);
updateMeter(1);
root.classList.add('is-open');
live.textContent = '20% 할인 쿠폰이 열렸어요';
}
function autoPeelRemaining(ratio) {
if (ratio * 100 >= SCRATCH_REVEAL_THRESHOLD_PCT) openCard();
}
02매번 다른 무늬로 그려지는 은박 질감
매번 다른 무늬로 그려지는 은박 질감이다. buildNoiseFoil이 픽셀마다 valueNoise2D로 밝기값을 계산해 은박 표면에 채우는데, 격자점 값은 noiseAt이 시드별로 미리 만든 노이즈 테이블에서 가져온다. 프로모션 이벤트 카드를 대량으로 만들 때 카드마다 다른 무늬를 주는 데 쓴다.

<main class="stage">
<div class="scv is-demo" id="scv">
<div class="scv__card">
<p class="scv__label">스크래치 카드</p>
<div class="scv__zone" id="zone">
<div class="scv__prize">
<p class="scv__prizeTitle">선물 쿠폰</p>
<p class="scv__prizeSub">새 카드마다 다른 은박 무늬</p>
</div>
<canvas class="scv__foil" id="foil" width="280" height="150" aria-hidden="true"></canvas>
</div>
<div class="scv__btnRow">
<button type="button" class="scv__reveal" id="revealBtn">한 번에 보기</button>
<button type="button" class="scv__redo" id="redoBtn">새 카드 만들기</button>
</div>
<p class="scv__live" id="live" aria-live="polite"></p>
</div>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 스크래치 카드 02 — buildNoiseFoil(seed) 가 2D 값 노이즈(valueNoise2D)로 은박 표면을 계산해
// 그린다. 아이들 상태에서는 sheen 하이라이트가 오가고, 긁기 시작하면 이후로는 다시 칠하지
// 않고 destination-out 구멍만 쌓인다 — 그래서 새 카드를 만들 때만 seed 를 바꿔 다시 계산한다.
@include stage($stage-yellow);
.scv { display: flex; justify-content: center; width: 100%; }
.scv__card {
width: min(100%, 300px); background: $subject-blue-deep; color: $subject-cream;
border-radius: $r-card; box-shadow: $shadow-raised; padding: $sp-4;
}
.scv__label { margin: 0 0 $sp-2; font-weight: 800; font-size: 12px; letter-spacing: .04em; }
.scv__zone {
position: relative; border-radius: $r-control; overflow: hidden;
aspect-ratio: 280 / 150; background: $stage-paper;
}
.scv__prize {
position: absolute; inset: 0; display: flex; flex-direction: column; align-items: center;
justify-content: center; gap: $sp-1; text-align: center; padding: $sp-2; z-index: 0;
}
.scv__prizeTitle { margin: 0; font-weight: 800; font-size: clamp(17px, 5.6vw, 22px); color: $subject-blue-deep; }
.scv__prizeSub { margin: 0; font-weight: 700; font-size: 11px; color: rgba(23, 20, 26, .68); }
.scv__foil { position: absolute; inset: 0; width: 100%; height: 100%; touch-action: none; z-index: 1; }
.scv.is-open .scv__foil { visibility: hidden; }
.scv__btnRow { display: flex; gap: $sp-2; margin-top: $sp-2; }
.scv__reveal, .scv__redo {
flex: 0 0 auto; border: 0; cursor: pointer; border-radius: $r-pill;
font-family: inherit; font-weight: 800; font-size: 10.5px; padding: $sp-1 $sp-3; line-height: 1.3;
}
.scv__reveal { background: $subject-cream; color: $subject-blue-deep; }
.scv__redo { background: rgba(255, 255, 255, .18); color: $subject-cream; }
.scv__reveal:focus-visible, .scv__redo:focus-visible { outline: 3px solid $stage-paper; outline-offset: 2px; }
.scv__live { margin: $sp-1 0 0; min-height: 1em; font-weight: 700; font-size: 10px; color: $subject-cream; }
@media (max-width: 340px) {
.scv__card { padding: $sp-3; }
.scv__btnRow { flex-wrap: wrap; }
}
@media (max-height: 220px) {
.stage { padding: $sp-2; }
.scv__card { padding: $sp-2 $sp-3; }
.scv__label { margin: 0 0 $sp-1; }
.scv__zone { aspect-ratio: 280 / 88; }
.scv__reveal { margin-top: $sp-1; }
.scv__live { margin-top: $sp-1; min-height: .9em; }
}
@media (prefers-reduced-motion: reduce) {
.scv { cursor: default; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #ffd23f;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.scv {
display: flex;
justify-content: center;
width: 100%;
}
.scv__card {
width: min(100%, 300px);
background: #0a4fe8;
color: #fff7e6;
border-radius: 16px;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
padding: 16px;
}
.scv__label {
margin: 0 0 8px;
font-weight: 800;
font-size: 12px;
letter-spacing: 0.04em;
}
.scv__zone {
position: relative;
border-radius: 12px;
overflow: hidden;
aspect-ratio: 280/150;
background: #ffffff;
}
.scv__prize {
position: absolute;
inset: 0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
text-align: center;
padding: 8px;
z-index: 0;
}
.scv__prizeTitle {
margin: 0;
font-weight: 800;
font-size: clamp(17px, 5.6vw, 22px);
color: #0a4fe8;
}
.scv__prizeSub {
margin: 0;
font-weight: 700;
font-size: 11px;
color: rgba(23, 20, 26, 0.68);
}
.scv__foil {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
touch-action: none;
z-index: 1;
}
.scv.is-open .scv__foil {
visibility: hidden;
}
.scv__btnRow {
display: flex;
gap: 8px;
margin-top: 8px;
}
.scv__reveal, .scv__redo {
flex: 0 0 auto;
border: 0;
cursor: pointer;
border-radius: 999px;
font-family: inherit;
font-weight: 800;
font-size: 10.5px;
padding: 4px 12px;
line-height: 1.3;
}
.scv__reveal {
background: #fff7e6;
color: #0a4fe8;
}
.scv__redo {
background: rgba(255, 255, 255, 0.18);
color: #fff7e6;
}
.scv__reveal:focus-visible, .scv__redo:focus-visible {
outline: 3px solid #ffffff;
outline-offset: 2px;
}
.scv__live {
margin: 4px 0 0;
min-height: 1em;
font-weight: 700;
font-size: 10px;
color: #fff7e6;
}
@media (max-width: 340px) {
.scv__card {
padding: 12px;
}
.scv__btnRow {
flex-wrap: wrap;
}
}
@media (max-height: 220px) {
.stage {
padding: 8px;
}
.scv__card {
padding: 8px 12px;
}
.scv__label {
margin: 0 0 4px;
}
.scv__zone {
aspect-ratio: 280/88;
}
.scv__reveal {
margin-top: 4px;
}
.scv__live {
margin-top: 4px;
min-height: 0.9em;
}
}
@media (prefers-reduced-motion: reduce) {
.scv {
cursor: default;
}
}(function () {
// 기법: 2D 값 노이즈 함수(valueNoise2D)로 은박 표면의 밝기를 픽셀마다 계산해 금속 질감을
// 만든다. buildNoiseFoil(seed) 는 seed 하나로 결정된 무늬 하나를 만들고, "새 카드 만들기" 는
// seed 를 바꿔 다른 무늬를 다시 계산한다 — 이미지 파일이 아니라 그때그때 계산으로 그린다.
var root = document.getElementById('scv');
var zone = document.getElementById('zone');
var foil = document.getElementById('foil');
var ctx = foil.getContext('2d');
var revealBtn = document.getElementById('revealBtn');
var redoBtn = document.getElementById('redoBtn');
var live = document.getElementById('live');
var FOIL_NOISE_DIM = 22;
var SCRATCH_BRUSH_R = 15;
var FW = foil.width, FH = foil.height;
function seedRand(seed) {
var s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
function smoothstep(t) { return t * t * (3 - 2 * t); }
function buildNoiseTable(seed) {
var rand = seedRand(seed);
var table = new Float32Array(FOIL_NOISE_DIM * FOIL_NOISE_DIM);
for (var i = 0; i < table.length; i += 1) table[i] = rand();
return table;
}
function noiseAt(table, xi, yi) {
var wx = ((xi % FOIL_NOISE_DIM) + FOIL_NOISE_DIM) % FOIL_NOISE_DIM;
var wy = ((yi % FOIL_NOISE_DIM) + FOIL_NOISE_DIM) % FOIL_NOISE_DIM;
return table[wy * FOIL_NOISE_DIM + wx];
}
function valueNoise2D(table, x, y) {
var x0 = Math.floor(x), y0 = Math.floor(y);
var tx = smoothstep(x - x0), ty = smoothstep(y - y0);
var v00 = noiseAt(table, x0, y0), v10 = noiseAt(table, x0 + 1, y0);
var v01 = noiseAt(table, x0, y0 + 1), v11 = noiseAt(table, x0 + 1, y0 + 1);
var a = v00 + (v10 - v00) * tx, b = v01 + (v11 - v01) * tx;
return a + (b - a) * ty;
}
function buildNoiseFoil(seed) {
var table = buildNoiseTable(seed);
var crackRand = seedRand(seed + 1);
var img = ctx.createImageData(FW, FH);
var d = img.data;
var scaleX = FOIL_NOISE_DIM / FW, scaleY = FOIL_NOISE_DIM / FH;
for (var y = 0; y < FH; y += 1) {
for (var x = 0; x < FW; x += 1) {
var n = valueNoise2D(table, x * scaleX * 2.4, y * scaleY * 2.4);
var lightness = 176 + n * 62;
var idx = (y * FW + x) * 4;
d[idx] = lightness * 0.98;
d[idx + 1] = lightness;
d[idx + 2] = lightness * 1.03;
d[idx + 3] = 255;
}
}
ctx.putImageData(img, 0, 0);
ctx.strokeStyle = 'rgba(23,20,26,.14)';
ctx.lineWidth = 1;
for (var i = 0; i < 16; i += 1) {
var sx = crackRand() * FW, sy = crackRand() * FH;
ctx.beginPath();
ctx.moveTo(sx, sy);
ctx.lineTo(sx + (crackRand() * 26 - 13), sy + (crackRand() * 10 - 5));
ctx.stroke();
}
return img;
}
var seed = 424021;
var baseCache = null, baseSeed = null;
function getBase() {
if (baseSeed !== seed) { baseCache = buildNoiseFoil(seed); baseSeed = seed; }
return baseCache;
}
function renderIdle(sheenT) {
ctx.putImageData(getBase(), 0, 0);
ctx.save();
ctx.globalCompositeOperation = 'lighter';
var sheenX = FW * sheenT;
var g = ctx.createLinearGradient(sheenX - 34, 0, sheenX + 34, FH);
g.addColorStop(0, 'rgba(255,255,255,0)');
g.addColorStop(.5, 'rgba(255,255,255,.55)');
g.addColorStop(1, 'rgba(255,255,255,0)');
ctx.fillStyle = g;
ctx.fillRect(0, 0, FW, FH);
ctx.restore();
}
function scratchAt(x, y) {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
}
var opened = false, scratchStarted = false;
function openCard() {
if (opened) return;
opened = true;
scratchStarted = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, FW, FH);
root.classList.add('is-open');
live.textContent = '선물 쿠폰이 열렸어요';
}
function newCard() {
seed += 1;
opened = false;
scratchStarted = false;
root.classList.remove('is-open');
renderIdle(0);
live.textContent = '새 은박 무늬를 계산했어요';
}
function pos(e) {
var r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var dragging = false;
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
scratchStarted = true;
dragging = true;
var p = pos(e);
scratchAt(p.x, p.y);
if (foil.setPointerCapture) foil.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (!dragging || opened) return;
var p = pos(e);
scratchAt(p.x, p.y);
});
window.addEventListener('pointerup', function () { dragging = false; });
revealBtn.addEventListener('click', function () { root.classList.remove('is-demo'); openCard(); });
redoBtn.addEventListener('click', function () { root.classList.remove('is-demo'); newCard(); });
// 격자 미리보기 — 반짝임(is idle) 뒤 긁기 스케줄 실행 후 새 무늬로 넘어가는 순환
var demoRand = seedRand(424022);
var demoPath = [];
(function buildDemoPath() {
for (var i = 0; i < 18; i += 1) {
demoPath.push({
t: 1400 + i * 90,
x: (FW * 0.15) + (i % 6) * (FW * 0.15) + (demoRand() - .5) * 8,
y: (FH * 0.28) + Math.floor(i / 6) * (FH * 0.24) + (demoRand() - .5) * 8
});
}
})();
var DEMO_LOOP_MS = 4400;
var demoStep = 0;
function runDemo(tMod) {
if (tMod < 1400) {
renderIdle((Math.sin(tMod * 0.0028) + 1) / 2);
return;
}
if (!scratchStarted) scratchStarted = true;
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
var p = demoPath[demoStep];
scratchAt(p.x, p.y);
demoStep += 1;
}
}
function resetDemo() {
seed += 1;
opened = false;
scratchStarted = false;
root.classList.remove('is-open');
demoStep = 0;
}
if (reduce) root.classList.remove('is-demo');
var elapsed = 0;
var lastTs = null;
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
requestAnimationFrame(tick);
}
renderIdle(0);
requestAnimationFrame(tick);
})();import { useEffect, useRef } from "react";
import styles from "./ScratchCardRevealFoilNoiseTexture.module.scss";
export default function ScratchCardRevealFoilNoiseTexture() {
const rootRef = useRef<HTMLDivElement>(null);
const zoneRef = useRef<HTMLDivElement>(null);
const foilRef = useRef<HTMLCanvasElement>(null);
const revealBtnRef = useRef<HTMLButtonElement>(null);
const redoBtnRef = useRef<HTMLButtonElement>(null);
const liveRef = useRef<HTMLParagraphElement>(null);
useEffect(() => {
const root = rootRef.current;
const zone = zoneRef.current;
const foil = foilRef.current;
const revealBtn = revealBtnRef.current;
const redoBtn = redoBtnRef.current;
const live = liveRef.current;
if (!root || !zone || !foil || !revealBtn || !redoBtn || !live) return;
const ctx = foil.getContext("2d");
if (!ctx) return;
const FOIL_NOISE_DIM = 22;
const SCRATCH_BRUSH_R = 15;
const FW = foil.width, FH = foil.height;
function seedRand(seed: number) {
let s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
function smoothstep(t: number) { return t * t * (3 - 2 * t); }
function buildNoiseTable(seed: number) {
const rand = seedRand(seed);
const table = new Float32Array(FOIL_NOISE_DIM * FOIL_NOISE_DIM);
for (let i = 0; i < table.length; i += 1) table[i] = rand();
return table;
}
function noiseAt(table: Float32Array, xi: number, yi: number) {
const wx = ((xi % FOIL_NOISE_DIM) + FOIL_NOISE_DIM) % FOIL_NOISE_DIM;
const wy = ((yi % FOIL_NOISE_DIM) + FOIL_NOISE_DIM) % FOIL_NOISE_DIM;
return table[wy * FOIL_NOISE_DIM + wx];
}
function valueNoise2D(table: Float32Array, x: number, y: number) {
const x0 = Math.floor(x), y0 = Math.floor(y);
const tx = smoothstep(x - x0), ty = smoothstep(y - y0);
const v00 = noiseAt(table, x0, y0), v10 = noiseAt(table, x0 + 1, y0);
const v01 = noiseAt(table, x0, y0 + 1), v11 = noiseAt(table, x0 + 1, y0 + 1);
const a = v00 + (v10 - v00) * tx, b = v01 + (v11 - v01) * tx;
return a + (b - a) * ty;
}
function buildNoiseFoil(seed: number) {
const table = buildNoiseTable(seed);
const crackRand = seedRand(seed + 1);
const img = ctx!.createImageData(FW, FH);
const d = img.data;
const scaleX = FOIL_NOISE_DIM / FW, scaleY = FOIL_NOISE_DIM / FH;
for (let y = 0; y < FH; y += 1) {
for (let x = 0; x < FW; x += 1) {
const n = valueNoise2D(table, x * scaleX * 2.4, y * scaleY * 2.4);
const lightness = 176 + n * 62;
const idx = (y * FW + x) * 4;
d[idx] = lightness * 0.98;
d[idx + 1] = lightness;
d[idx + 2] = lightness * 1.03;
d[idx + 3] = 255;
}
}
ctx!.putImageData(img, 0, 0);
ctx!.strokeStyle = "rgba(23,20,26,.14)";
ctx!.lineWidth = 1;
for (let i = 0; i < 16; i += 1) {
const sx = crackRand() * FW, sy = crackRand() * FH;
ctx!.beginPath();
ctx!.moveTo(sx, sy);
ctx!.lineTo(sx + (crackRand() * 26 - 13), sy + (crackRand() * 10 - 5));
ctx!.stroke();
}
return img;
}
let seed = 424021;
let baseCache: ImageData | null = null, baseSeed: number | null = null;
function getBase() {
if (baseSeed !== seed) { baseCache = buildNoiseFoil(seed); baseSeed = seed; }
return baseCache!;
}
function renderIdle(sheenT: number) {
ctx!.putImageData(getBase(), 0, 0);
ctx!.save();
ctx!.globalCompositeOperation = "lighter";
const sheenX = FW * sheenT;
const g = ctx!.createLinearGradient(sheenX - 34, 0, sheenX + 34, FH);
g.addColorStop(0, "rgba(255,255,255,0)");
g.addColorStop(.5, "rgba(255,255,255,.55)");
g.addColorStop(1, "rgba(255,255,255,0)");
ctx!.fillStyle = g;
ctx!.fillRect(0, 0, FW, FH);
ctx!.restore();
}
function scratchAt(x: number, y: number) {
ctx!.globalCompositeOperation = "destination-out";
ctx!.beginPath();
ctx!.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx!.fill();
}
let opened = false, scratchStarted = false;
function openCard() {
if (opened) return;
opened = true;
scratchStarted = true;
ctx!.globalCompositeOperation = "destination-out";
ctx!.fillRect(0, 0, FW, FH);
root!.classList.add("is-open");
live!.textContent = "선물 쿠폰이 열렸어요";
}
function newCard() {
seed += 1;
opened = false;
scratchStarted = false;
root!.classList.remove("is-open");
renderIdle(0);
live!.textContent = "새 은박 무늬를 계산했어요";
}
function pos(e: PointerEvent) {
const r = foil!.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
let dragging = false;
function onDown(e: PointerEvent) {
if (opened) return;
root!.classList.remove("is-demo");
scratchStarted = true;
dragging = true;
const p = pos(e);
scratchAt(p.x, p.y);
foil!.setPointerCapture?.(e.pointerId);
}
function onMove(e: PointerEvent) {
if (!dragging || opened) return;
const p = pos(e);
scratchAt(p.x, p.y);
}
function onUp() { dragging = false; }
zone.addEventListener("pointerdown", onDown);
zone.addEventListener("pointermove", onMove);
window.addEventListener("pointerup", onUp);
function onReveal() { root!.classList.remove("is-demo"); openCard(); }
function onRedo() { root!.classList.remove("is-demo"); newCard(); }
revealBtn.addEventListener("click", onReveal);
redoBtn.addEventListener("click", onRedo);
const demoRand = seedRand(424022);
type DemoPt = { t: number; x: number; y: number };
const demoPath: DemoPt[] = [];
for (let i = 0; i < 18; i += 1) {
demoPath.push({
t: 1400 + i * 90,
x: (FW * 0.15) + (i % 6) * (FW * 0.15) + (demoRand() - .5) * 8,
y: (FH * 0.28) + Math.floor(i / 6) * (FH * 0.24) + (demoRand() - .5) * 8
});
}
const DEMO_LOOP_MS = 4400;
let demoStep = 0;
function runDemo(tMod: number) {
if (tMod < 1400) {
renderIdle((Math.sin(tMod * 0.0028) + 1) / 2);
return;
}
if (!scratchStarted) scratchStarted = true;
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
const p = demoPath[demoStep];
scratchAt(p.x, p.y);
demoStep += 1;
}
}
function resetDemo() {
seed += 1;
opened = false;
scratchStarted = false;
root!.classList.remove("is-open");
demoStep = 0;
}
if (reduce) root.classList.remove("is-demo");
let elapsed = 0;
let lastTs: number | null = null;
let raf = 0;
function tick(ts: number) {
if (lastTs === null) lastTs = ts;
const dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root!.classList.contains("is-demo")) {
elapsed += dt;
const tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
raf = requestAnimationFrame(tick);
}
renderIdle(0);
raf = requestAnimationFrame(tick);
return () => {
cancelAnimationFrame(raf);
zone.removeEventListener("pointerdown", onDown);
zone.removeEventListener("pointermove", onMove);
window.removeEventListener("pointerup", onUp);
revealBtn.removeEventListener("click", onReveal);
redoBtn.removeEventListener("click", onRedo);
};
}, []);
return (
<main className={styles.stage}>
<div className={`${styles.scv} is-demo`} ref={rootRef}>
<div className={styles.scv__card}>
<p className={styles.scv__label}>스크래치 카드</p>
<div className={styles.scv__zone} ref={zoneRef}>
<div className={styles.scv__prize}>
<p className={styles.scv__prizeTitle}>선물 쿠폰</p>
<p className={styles.scv__prizeSub}>새 카드마다 다른 은박 무늬</p>
</div>
<canvas className={styles.scv__foil} ref={foilRef} width={280} height={150} aria-hidden="true" />
</div>
<div className={styles.scv__btnRow}>
<button type="button" className={styles.scv__reveal} ref={revealBtnRef}>한 번에 보기</button>
<button type="button" className={styles.scv__redo} ref={redoBtnRef}>새 카드 만들기</button>
</div>
<p className={styles.scv__live} ref={liveRef} aria-live="polite"></p>
</div>
</div>
</main>
);
}02 · 매번 다른 무늬로 그려지는 은박 질감 — 측정 누적면적 28.594% · 움직인 프레임 17/23GODRICH 원작 · zip 에 SCSS·React 포함 · 비밀번호 보기
for (var y = 0; y < FH; y += 1) {
for (var x = 0; x < FW; x += 1) {
var n = valueNoise2D(table, x * scaleX * 2.4, y * scaleY * 2.4);
var lightness = 176 + n * 62;
var idx = (y * FW + x) * 4;
d[idx] = lightness * 0.98;
d[idx + 1] = lightness;
d[idx + 2] = lightness * 1.03;
d[idx + 3] = 255;
}
}
03중력을 받아 튕겨 나가는 은박 조각
중력을 받아 튕겨 나가는 은박 조각이다. 긁을 때마다 spawnFlake가 조각을 만들고, stepFlakes가 매 프레임 중력과 회전을 더해 위치를 갱신하다가 FLAKE_LIFE_MS를 넘기거나 카드 밖으로 나가면 배열에서 지운다. 생일 쿠폰 긁기 이벤트에 쓴다.

<main class="stage">
<div class="scv is-demo" id="scv">
<div class="scv__card">
<p class="scv__label">스크래치 카드</p>
<div class="scv__zone" id="zone">
<div class="scv__prize">
<p class="scv__prizeTitle">생일 쿠폰</p>
<p class="scv__prizeSub">긁을 때마다 조각이 튀어 나가요</p>
</div>
<canvas class="scv__foil" id="foil" width="280" height="150" aria-hidden="true"></canvas>
<canvas class="scv__flakes" id="flakes" width="280" height="150" aria-hidden="true"></canvas>
</div>
<button type="button" class="scv__reveal" id="revealBtn">한 번에 보기</button>
<p class="scv__live" id="live" aria-live="polite"></p>
</div>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 스크래치 카드 03 — spawnFlake() 가 긁는 지점마다 작은 조각을 만들고 stepFlakes() 가
// FLAKE_GRAVITY_PX_S2 로 낙하·회전을 적분한다. 조각 캔버스(scv__flakes)는 은박 캔버스 위에
// pointer-events:none 으로 겹쳐 긁기 입력을 가리지 않는다.
@include stage($stage-orange);
.scv { display: flex; justify-content: center; width: 100%; }
.scv__card {
width: min(100%, 300px); background: $subject-blue-deep; color: $subject-cream;
border-radius: $r-card; box-shadow: $shadow-raised; padding: $sp-4;
}
.scv__label { margin: 0 0 $sp-2; font-weight: 800; font-size: 12px; letter-spacing: .04em; }
.scv__zone {
position: relative; border-radius: $r-control; overflow: hidden;
aspect-ratio: 280 / 150; background: $stage-paper;
}
.scv__prize {
position: absolute; inset: 0; display: flex; flex-direction: column; align-items: center;
justify-content: center; gap: $sp-1; text-align: center; padding: $sp-2; z-index: 0;
}
.scv__prizeTitle { margin: 0; font-weight: 800; font-size: clamp(18px, 6vw, 22px); color: $subject-blue-deep; }
.scv__prizeSub { margin: 0; font-weight: 700; font-size: 11px; color: rgba(23, 20, 26, .68); }
.scv__foil { position: absolute; inset: 0; width: 100%; height: 100%; touch-action: none; z-index: 1; }
.scv__flakes { position: absolute; inset: 0; width: 100%; height: 100%; pointer-events: none; z-index: 2; }
.scv.is-open .scv__foil { visibility: hidden; }
.scv__reveal {
margin-top: $sp-2; border: 0; cursor: pointer; background: $subject-cream; color: $subject-blue-deep;
border-radius: $r-pill; font-family: inherit; font-weight: 800; font-size: 11px; padding: $sp-1 $sp-3; line-height: 1.3;
}
.scv__reveal:focus-visible { outline: 3px solid $stage-paper; outline-offset: 2px; }
.scv__live { margin: $sp-1 0 0; min-height: 1em; font-weight: 700; font-size: 10px; color: $subject-cream; }
@media (max-width: 340px) {
.scv__card { padding: $sp-3; }
}
@media (max-height: 220px) {
.stage { padding: $sp-2; }
.scv__card { padding: $sp-2 $sp-3; }
.scv__label { margin: 0 0 $sp-1; }
.scv__zone { aspect-ratio: 280 / 88; }
.scv__reveal { margin-top: $sp-1; }
.scv__live { margin-top: $sp-1; min-height: .9em; }
}
@media (prefers-reduced-motion: reduce) {
.scv { cursor: default; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #ff4d1f;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.scv {
display: flex;
justify-content: center;
width: 100%;
}
.scv__card {
width: min(100%, 300px);
background: #0a4fe8;
color: #fff7e6;
border-radius: 16px;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
padding: 16px;
}
.scv__label {
margin: 0 0 8px;
font-weight: 800;
font-size: 12px;
letter-spacing: 0.04em;
}
.scv__zone {
position: relative;
border-radius: 12px;
overflow: hidden;
aspect-ratio: 280/150;
background: #ffffff;
}
.scv__prize {
position: absolute;
inset: 0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
text-align: center;
padding: 8px;
z-index: 0;
}
.scv__prizeTitle {
margin: 0;
font-weight: 800;
font-size: clamp(18px, 6vw, 22px);
color: #0a4fe8;
}
.scv__prizeSub {
margin: 0;
font-weight: 700;
font-size: 11px;
color: rgba(23, 20, 26, 0.68);
}
.scv__foil {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
touch-action: none;
z-index: 1;
}
.scv__flakes {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
pointer-events: none;
z-index: 2;
}
.scv.is-open .scv__foil {
visibility: hidden;
}
.scv__reveal {
margin-top: 8px;
border: 0;
cursor: pointer;
background: #fff7e6;
color: #0a4fe8;
border-radius: 999px;
font-family: inherit;
font-weight: 800;
font-size: 11px;
padding: 4px 12px;
line-height: 1.3;
}
.scv__reveal:focus-visible {
outline: 3px solid #ffffff;
outline-offset: 2px;
}
.scv__live {
margin: 4px 0 0;
min-height: 1em;
font-weight: 700;
font-size: 10px;
color: #fff7e6;
}
@media (max-width: 340px) {
.scv__card {
padding: 12px;
}
}
@media (max-height: 220px) {
.stage {
padding: 8px;
}
.scv__card {
padding: 8px 12px;
}
.scv__label {
margin: 0 0 4px;
}
.scv__zone {
aspect-ratio: 280/88;
}
.scv__reveal {
margin-top: 4px;
}
.scv__live {
margin-top: 4px;
min-height: 0.9em;
}
}
@media (prefers-reduced-motion: reduce) {
.scv {
cursor: default;
}
}(function () {
// 기법: 긁는 지점마다 spawnFlake() 로 작은 은박 조각을 만들어 중력(FLAKE_GRAVITY_PX_S2)과
// 각속도를 준다. stepFlakes() 가 매 프레임 속도·회전을 적분해 조각이 카드 경계 밖으로
// 튕겨 나가며 사라지게 한다 — 파티클 엔진 없이 배열 하나로 발생·낙하·소멸을 계산한다.
var root = document.getElementById('scv');
var zone = document.getElementById('zone');
var foil = document.getElementById('foil');
var ctx = foil.getContext('2d');
var flakesCanvas = document.getElementById('flakes');
var fctx = flakesCanvas.getContext('2d');
var revealBtn = document.getElementById('revealBtn');
var live = document.getElementById('live');
var FW = foil.width, FH = foil.height;
var SCRATCH_BRUSH_R = 15;
var FLAKE_GRAVITY_PX_S2 = 400;
var FLAKE_LIFE_MS = 900;
function seedRand(seed) {
var s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
var foilRand = seedRand(424031);
var flakeRand = seedRand(424032);
function paintFoil() {
ctx.globalCompositeOperation = 'source-over';
ctx.clearRect(0, 0, FW, FH);
var grad = ctx.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, '#d8863f');
grad.addColorStop(.5, '#f3c98a');
grad.addColorStop(1, '#c9752c');
ctx.fillStyle = grad;
ctx.fillRect(0, 0, FW, FH);
ctx.strokeStyle = 'rgba(23,20,26,.16)';
ctx.lineWidth = 1;
for (var i = 0; i < 20; i += 1) {
var x = foilRand() * FW, y = foilRand() * FH;
ctx.beginPath();
ctx.moveTo(x, y);
ctx.lineTo(x + (foilRand() * 22 - 11), y + (foilRand() * 8 - 4));
ctx.stroke();
}
}
var flakes = [];
function spawnFlake(x, y, vx, vy) {
if (reduce) return;
flakes.push({
x: x, y: y, vx: vx, vy: vy,
rot: flakeRand() * Math.PI * 2,
angVel: (flakeRand() - .5) * 10,
born: 0, size: 3 + flakeRand() * 3
});
}
function stepFlakes(dtMs, nowMs) {
var dtS = dtMs / 1000;
var alive = [];
for (var i = 0; i < flakes.length; i += 1) {
var f = flakes[i];
f.vy += FLAKE_GRAVITY_PX_S2 * dtS;
f.x += f.vx * dtS;
f.y += f.vy * dtS;
f.rot += f.angVel * dtS;
f.born += dtMs;
if (f.born < FLAKE_LIFE_MS && f.x > -8 && f.x < FW + 8 && f.y < FH + 8) alive.push(f);
}
flakes = alive;
}
function drawFlakes() {
fctx.clearRect(0, 0, FW, FH);
for (var i = 0; i < flakes.length; i += 1) {
var f = flakes[i];
var fade = Math.max(0, 1 - f.born / FLAKE_LIFE_MS);
fctx.save();
fctx.translate(f.x, f.y);
fctx.rotate(f.rot);
fctx.fillStyle = 'rgba(243,201,138,' + fade + ')';
fctx.fillRect(-f.size / 2, -f.size / 2, f.size, f.size);
fctx.restore();
}
}
function scratchAt(x, y, vx, vy) {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
spawnFlake(x, y, vx, vy - 30);
spawnFlake(x + (flakeRand() - .5) * 6, y + (flakeRand() - .5) * 6, -vx * .6, vy - 60);
}
function clearedRatio() {
var data = ctx.getImageData(0, 0, FW, FH).data;
var clear = 0, total = data.length / 4;
for (var i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
var opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, FW, FH);
root.classList.add('is-open');
live.textContent = '생일 쿠폰이 열렸어요';
}
function pos(e) {
var r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var dragging = false, lastPos = null;
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
dragging = true;
var p = pos(e);
scratchAt(p.x, p.y, 0, 0);
lastPos = p;
if (zone.setPointerCapture) zone.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (!dragging || opened) return;
var p = pos(e);
var vx = lastPos ? (p.x - lastPos.x) * 6 : 0;
var vy = lastPos ? (p.y - lastPos.y) * 6 : 0;
scratchAt(p.x, p.y, vx, vy);
lastPos = p;
if (clearedRatio() > .85) openCard();
});
window.addEventListener('pointerup', function () { dragging = false; lastPos = null; });
revealBtn.addEventListener('click', function () { root.classList.remove('is-demo'); openCard(); });
// 격자 미리보기 — 같은 scratchAt() 경로를 스케줄로 호출해 조각을 계속 만든다
var demoRand = seedRand(424033);
var demoPath = [];
(function buildDemoPath() {
for (var i = 0; i < 22; i += 1) {
demoPath.push({
t: 230 + i * 82,
x: (FW * 0.14) + (i % 6) * (FW * 0.15) + (demoRand() - .5) * 6,
y: (FH * 0.24) + Math.floor(i / 6) * (FH * 0.26) + (demoRand() - .5) * 6,
vx: (demoRand() - .5) * 90,
vy: -40 - demoRand() * 40
});
}
})();
var DEMO_LOOP_MS = 3800;
var demoStep = 0;
function resetDemo() {
opened = false;
root.classList.remove('is-open');
paintFoil();
flakes = [];
demoStep = 0;
}
function runDemo(tMod) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
var p = demoPath[demoStep];
scratchAt(p.x, p.y, p.vx, p.vy);
demoStep += 1;
}
if (clearedRatio() > .85) openCard();
}
if (reduce) root.classList.remove('is-demo');
var elapsed = 0, lastTs = null;
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
if (!reduce) stepFlakes(dt, elapsed);
drawFlakes();
requestAnimationFrame(tick);
}
requestAnimationFrame(tick);
})();import { useEffect, useRef } from "react";
import styles from "./ScratchCardRevealFlakeGravityParticle.module.scss";
type Flake = { x: number; y: number; vx: number; vy: number; rot: number; angVel: number; born: number; size: number };
export default function ScratchCardRevealFlakeGravityParticle() {
const rootRef = useRef<HTMLDivElement>(null);
const zoneRef = useRef<HTMLDivElement>(null);
const foilRef = useRef<HTMLCanvasElement>(null);
const flakesRef = useRef<HTMLCanvasElement>(null);
const revealBtnRef = useRef<HTMLButtonElement>(null);
const liveRef = useRef<HTMLParagraphElement>(null);
useEffect(() => {
const root = rootRef.current;
const zone = zoneRef.current;
const foil = foilRef.current;
const flakesCanvas = flakesRef.current;
const revealBtn = revealBtnRef.current;
const live = liveRef.current;
if (!root || !zone || !foil || !flakesCanvas || !revealBtn || !live) return;
const ctx = foil.getContext("2d");
const fctx = flakesCanvas.getContext("2d");
if (!ctx || !fctx) return;
const FW = foil.width, FH = foil.height;
const SCRATCH_BRUSH_R = 15;
const FLAKE_GRAVITY_PX_S2 = 400;
const FLAKE_LIFE_MS = 900;
function seedRand(seed: number) {
let s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
const foilRand = seedRand(424031);
const flakeRand = seedRand(424032);
function paintFoil() {
ctx!.globalCompositeOperation = "source-over";
ctx!.clearRect(0, 0, FW, FH);
const grad = ctx!.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, "#d8863f");
grad.addColorStop(.5, "#f3c98a");
grad.addColorStop(1, "#c9752c");
ctx!.fillStyle = grad;
ctx!.fillRect(0, 0, FW, FH);
ctx!.strokeStyle = "rgba(23,20,26,.16)";
ctx!.lineWidth = 1;
for (let i = 0; i < 20; i += 1) {
const x = foilRand() * FW, y = foilRand() * FH;
ctx!.beginPath();
ctx!.moveTo(x, y);
ctx!.lineTo(x + (foilRand() * 22 - 11), y + (foilRand() * 8 - 4));
ctx!.stroke();
}
}
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
let flakes: Flake[] = [];
function spawnFlake(x: number, y: number, vx: number, vy: number) {
if (reduce) return;
flakes.push({
x, y, vx, vy,
rot: flakeRand() * Math.PI * 2,
angVel: (flakeRand() - .5) * 10,
born: 0, size: 3 + flakeRand() * 3
});
}
function stepFlakes(dtMs: number) {
const dtS = dtMs / 1000;
const alive: Flake[] = [];
for (let i = 0; i < flakes.length; i += 1) {
const f = flakes[i];
f.vy += FLAKE_GRAVITY_PX_S2 * dtS;
f.x += f.vx * dtS;
f.y += f.vy * dtS;
f.rot += f.angVel * dtS;
f.born += dtMs;
if (f.born < FLAKE_LIFE_MS && f.x > -8 && f.x < FW + 8 && f.y < FH + 8) alive.push(f);
}
flakes = alive;
}
function drawFlakes() {
fctx!.clearRect(0, 0, FW, FH);
for (let i = 0; i < flakes.length; i += 1) {
const f = flakes[i];
const fade = Math.max(0, 1 - f.born / FLAKE_LIFE_MS);
fctx!.save();
fctx!.translate(f.x, f.y);
fctx!.rotate(f.rot);
fctx!.fillStyle = "rgba(243,201,138," + fade + ")";
fctx!.fillRect(-f.size / 2, -f.size / 2, f.size, f.size);
fctx!.restore();
}
}
function scratchAt(x: number, y: number, vx: number, vy: number) {
ctx!.globalCompositeOperation = "destination-out";
ctx!.beginPath();
ctx!.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx!.fill();
spawnFlake(x, y, vx, vy - 30);
spawnFlake(x + (flakeRand() - .5) * 6, y + (flakeRand() - .5) * 6, -vx * .6, vy - 60);
}
function clearedRatio() {
const data = ctx!.getImageData(0, 0, FW, FH).data;
let clear = 0;
const total = data.length / 4;
for (let i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
let opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx!.globalCompositeOperation = "destination-out";
ctx!.fillRect(0, 0, FW, FH);
root!.classList.add("is-open");
live!.textContent = "생일 쿠폰이 열렸어요";
}
function pos(e: PointerEvent) {
const r = foil!.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
let dragging = false;
let lastPos: { x: number; y: number } | null = null;
function onDown(e: PointerEvent) {
if (opened) return;
root!.classList.remove("is-demo");
dragging = true;
const p = pos(e);
scratchAt(p.x, p.y, 0, 0);
lastPos = p;
zone!.setPointerCapture?.(e.pointerId);
}
function onMove(e: PointerEvent) {
if (!dragging || opened) return;
const p = pos(e);
const vx = lastPos ? (p.x - lastPos.x) * 6 : 0;
const vy = lastPos ? (p.y - lastPos.y) * 6 : 0;
scratchAt(p.x, p.y, vx, vy);
lastPos = p;
if (clearedRatio() > .85) openCard();
}
function onUp() { dragging = false; lastPos = null; }
zone.addEventListener("pointerdown", onDown);
zone.addEventListener("pointermove", onMove);
window.addEventListener("pointerup", onUp);
function onReveal() { root!.classList.remove("is-demo"); openCard(); }
revealBtn.addEventListener("click", onReveal);
const demoRand = seedRand(424033);
type DemoPt = { t: number; x: number; y: number; vx: number; vy: number };
const demoPath: DemoPt[] = [];
for (let i = 0; i < 22; i += 1) {
demoPath.push({
t: 230 + i * 82,
x: (FW * 0.14) + (i % 6) * (FW * 0.15) + (demoRand() - .5) * 6,
y: (FH * 0.24) + Math.floor(i / 6) * (FH * 0.26) + (demoRand() - .5) * 6,
vx: (demoRand() - .5) * 90,
vy: -40 - demoRand() * 40
});
}
const DEMO_LOOP_MS = 3800;
let demoStep = 0;
function resetDemo() {
opened = false;
root!.classList.remove("is-open");
paintFoil();
flakes = [];
demoStep = 0;
}
function runDemo(tMod: number) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
const p = demoPath[demoStep];
scratchAt(p.x, p.y, p.vx, p.vy);
demoStep += 1;
}
if (clearedRatio() > .85) openCard();
}
if (reduce) root.classList.remove("is-demo");
let elapsed = 0;
let lastTs: number | null = null;
let raf = 0;
function tick(ts: number) {
if (lastTs === null) lastTs = ts;
const dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root!.classList.contains("is-demo")) {
elapsed += dt;
const tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
if (!reduce) stepFlakes(dt);
drawFlakes();
raf = requestAnimationFrame(tick);
}
raf = requestAnimationFrame(tick);
return () => {
cancelAnimationFrame(raf);
zone.removeEventListener("pointerdown", onDown);
zone.removeEventListener("pointermove", onMove);
window.removeEventListener("pointerup", onUp);
revealBtn.removeEventListener("click", onReveal);
};
}, []);
return (
<main className={styles.stage}>
<div className={`${styles.scv} is-demo`} ref={rootRef}>
<div className={styles.scv__card}>
<p className={styles.scv__label}>스크래치 카드</p>
<div className={styles.scv__zone} ref={zoneRef}>
<div className={styles.scv__prize}>
<p className={styles.scv__prizeTitle}>생일 쿠폰</p>
<p className={styles.scv__prizeSub}>긁을 때마다 조각이 튀어 나가요</p>
</div>
<canvas className={styles.scv__foil} ref={foilRef} width={280} height={150} aria-hidden="true" />
<canvas className={styles.scv__flakes} ref={flakesRef} width={280} height={150} aria-hidden="true" />
</div>
<button type="button" className={styles.scv__reveal} ref={revealBtnRef}>한 번에 보기</button>
<p className={styles.scv__live} ref={liveRef} aria-live="polite"></p>
</div>
</div>
</main>
);
}03 · 중력을 받아 튕겨 나가는 은박 조각 — 측정 누적면적 12.323% · 움직인 프레임 21/23GODRICH 원작 · zip 에 SCSS·React 포함 · 비밀번호 보기
function stepFlakes(dtMs, nowMs) {
var dtS = dtMs / 1000;
var alive = [];
for (var i = 0; i < flakes.length; i += 1) {
var f = flakes[i];
f.vy += FLAKE_GRAVITY_PX_S2 * dtS;
f.x += f.vx * dtS;
f.y += f.vy * dtS;
f.rot += f.angVel * dtS;
f.born += dtMs;
if (f.born < FLAKE_LIFE_MS && f.x > -8 && f.x < FW + 8 && f.y < FH + 8) alive.push(f);
}
flakes = alive;
}
04중심에서 원형으로 번지는 리빌 반경
중심에서 원형으로 번지는 리빌 반경이다. 누른 지점을 중심으로 반경이 WIPE_LERP_RATE 비율만큼씩 WIPE_TARGET_R에 가까워지도록 wipe가 매 프레임 원을 그려 은박을 지우고, 시연은 이 번짐을 DEMO_STARTS 세 지점에서 세 번 반복해 보여준다. 터치 한 번으로 여는 모바일 쿠폰에 쓴다.

<main class="stage">
<div class="scv is-demo" id="scv">
<div class="scv__card">
<p class="scv__label">스크래치 카드</p>
<div class="scv__zone" id="zone">
<div class="scv__prize">
<p class="scv__prizeTitle">할인 쿠폰</p>
<p class="scv__prizeSub">누른 지점에서 원이 점점 커져요</p>
</div>
<canvas class="scv__foil" id="foil" width="280" height="150" aria-hidden="true"></canvas>
</div>
<button type="button" class="scv__reveal" id="revealBtn">한 번에 보기</button>
<p class="scv__live" id="live" aria-live="polite"></p>
</div>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 스크래치 카드 04 — press.r 가 목표 반지름(WIPE_TARGET_R)까지 매 프레임
// lerp(WIPE_LERP_RATE) 로 가속 추적해 누르고만 있어도 원형으로 은박이 넓어진다.
@include stage($stage-paper);
.scv { display: flex; justify-content: center; width: 100%; }
.scv__card {
width: min(100%, 336px); background: $subject-blue-deep; color: $subject-cream;
border-radius: $r-card; box-shadow: $shadow-raised; padding: $sp-3 $sp-4;
}
.scv__label { margin: 0 0 $sp-1; font-weight: 800; font-size: 12px; letter-spacing: .04em; }
.scv__zone {
position: relative; border-radius: $r-control; overflow: hidden;
aspect-ratio: 280 / 150; background: #eef0f3;
}
.scv__prize {
position: absolute; inset: 0; display: flex; flex-direction: column; align-items: center;
justify-content: center; gap: $sp-1; text-align: center; padding: $sp-2; z-index: 0;
}
.scv__prizeTitle { margin: 0; font-weight: 800; font-size: clamp(18px, 6vw, 22px); color: $subject-blue-deep; }
.scv__prizeSub { margin: 0; font-weight: 700; font-size: 11px; color: rgba(23, 20, 26, .68); }
.scv__foil { position: absolute; inset: 0; width: 100%; height: 100%; touch-action: none; z-index: 1; }
.scv.is-open .scv__foil { visibility: hidden; }
.scv__reveal {
margin-top: $sp-1; border: 0; cursor: pointer; background: $subject-cream; color: $subject-blue-deep;
border-radius: $r-pill; font-family: inherit; font-weight: 800; font-size: 11px; padding: $sp-1 $sp-3; line-height: 1.3;
}
.scv__reveal:focus-visible { outline: 3px solid $stage-ink; outline-offset: 2px; }
.scv__live { margin: 0; min-height: 0; font-weight: 700; font-size: 10px; color: $subject-cream; }
@media (max-width: 340px) {
.scv__card { padding: $sp-3; }
}
@media (max-height: 220px) {
.stage { padding: $sp-2; }
.scv__card { padding: $sp-2 $sp-3; }
.scv__label { margin: 0 0 $sp-1; }
.scv__zone { aspect-ratio: 280 / 88; }
.scv__reveal { margin-top: $sp-1; }
.scv__live { margin-top: $sp-1; min-height: .9em; }
}
@media (prefers-reduced-motion: reduce) {
.scv { cursor: default; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #ffffff;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.scv {
display: flex;
justify-content: center;
width: 100%;
}
.scv__card {
width: min(100%, 336px);
background: #0a4fe8;
color: #fff7e6;
border-radius: 16px;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
padding: 12px 16px;
}
.scv__label {
margin: 0 0 4px;
font-weight: 800;
font-size: 12px;
letter-spacing: 0.04em;
}
.scv__zone {
position: relative;
border-radius: 12px;
overflow: hidden;
aspect-ratio: 280/150;
background: #eef0f3;
}
.scv__prize {
position: absolute;
inset: 0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
text-align: center;
padding: 8px;
z-index: 0;
}
.scv__prizeTitle {
margin: 0;
font-weight: 800;
font-size: clamp(18px, 6vw, 22px);
color: #0a4fe8;
}
.scv__prizeSub {
margin: 0;
font-weight: 700;
font-size: 11px;
color: rgba(23, 20, 26, 0.68);
}
.scv__foil {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
touch-action: none;
z-index: 1;
}
.scv.is-open .scv__foil {
visibility: hidden;
}
.scv__reveal {
margin-top: 4px;
border: 0;
cursor: pointer;
background: #fff7e6;
color: #0a4fe8;
border-radius: 999px;
font-family: inherit;
font-weight: 800;
font-size: 11px;
padding: 4px 12px;
line-height: 1.3;
}
.scv__reveal:focus-visible {
outline: 3px solid #17141a;
outline-offset: 2px;
}
.scv__live {
margin: 0;
min-height: 0;
font-weight: 700;
font-size: 10px;
color: #fff7e6;
}
@media (max-width: 340px) {
.scv__card {
padding: 12px;
}
}
@media (max-height: 220px) {
.stage {
padding: 8px;
}
.scv__card {
padding: 8px 12px;
}
.scv__label {
margin: 0 0 4px;
}
.scv__zone {
aspect-ratio: 280/88;
}
.scv__reveal {
margin-top: 4px;
}
.scv__live {
margin-top: 4px;
min-height: 0.9em;
}
}
@media (prefers-reduced-motion: reduce) {
.scv {
cursor: default;
}
}(function () {
// 기법: 누른 지점을 중심으로 반지름을 목표값까지 lerp(선형보간)로 매 프레임 가속 추적한다.
// 실제 드래그 없이 누르고 있기만 해도 반지름이 스스로 자라나 원형으로 은박이 사라진다.
var root = document.getElementById('scv');
var zone = document.getElementById('zone');
var foil = document.getElementById('foil');
var ctx = foil.getContext('2d');
var revealBtn = document.getElementById('revealBtn');
var live = document.getElementById('live');
var FW = foil.width, FH = foil.height;
var WIPE_TARGET_R = Math.ceil(Math.sqrt(FW * FW + FH * FH) / 2); // 카드 대각선 절반 — 어느 지점을 눌러도 끝까지 덮는다
var WIPE_LERP_RATE = 1.5; // 확장 과정이 눈에 오래 보이도록 가속을 늦춘다
function seedRand(seed) {
var s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
var foilRand = seedRand(424041);
function paintFoil() {
ctx.globalCompositeOperation = 'source-over';
ctx.clearRect(0, 0, FW, FH);
var grad = ctx.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, '#dfe3ea');
grad.addColorStop(.5, '#f4f6f9');
grad.addColorStop(1, '#c9ced8');
ctx.fillStyle = grad;
ctx.fillRect(0, 0, FW, FH);
ctx.strokeStyle = 'rgba(23,20,26,.14)';
ctx.lineWidth = 1;
for (var i = 0; i < 18; i += 1) {
var x = foilRand() * FW, y = foilRand() * FH;
ctx.beginPath();
ctx.moveTo(x, y);
ctx.lineTo(x + (foilRand() * 20 - 10), y + (foilRand() * 8 - 4));
ctx.stroke();
}
}
var press = null; // {x,y,r}
function wipe() {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(press.x, press.y, press.r, 0, Math.PI * 2);
ctx.fill();
}
function clearedRatio() {
var data = ctx.getImageData(0, 0, FW, FH).data;
var clear = 0, total = data.length / 4;
for (var i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
var opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, FW, FH);
root.classList.add('is-open');
live.textContent = '할인 쿠폰이 열렸어요';
}
function pos(e) {
var r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var holding = false;
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
holding = true;
var p = pos(e);
press = { x: p.x, y: p.y, r: 4 };
wipe();
if (zone.setPointerCapture) zone.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (!holding || opened) return;
var p = pos(e);
press.x = p.x; press.y = p.y;
});
window.addEventListener('pointerup', function () { holding = false; });
revealBtn.addEventListener('click', function () { root.classList.remove('is-demo'); openCard(); });
// 카드 끝까지 원형 확장 → 다시 덮임 → 다른 지점에서 재확장을 한 루프 안에서 반복한다.
var demoRand = seedRand(424042);
var DEMO_POINTS = [
{ x: FW * (0.30 + demoRand() * 0.08), y: FH * (0.36 + demoRand() * 0.08) },
{ x: FW * (0.66 + demoRand() * 0.08), y: FH * (0.58 + demoRand() * 0.08) },
{ x: FW * (0.42 + demoRand() * 0.08), y: FH * (0.30 + demoRand() * 0.08) }
];
var DEMO_STARTS = [220, 950, 1680];
var DEMO_LOOP_MS = 3200;
var demoCycle = -1;
var demoPress = null;
function resetDemo() {
opened = false;
root.classList.remove('is-open');
paintFoil();
demoCycle = -1;
demoPress = null;
}
function runDemo(tMod, dtS) {
var next = demoCycle + 1;
if (next < DEMO_STARTS.length && tMod >= DEMO_STARTS[next]) {
demoCycle = next;
var p = DEMO_POINTS[demoCycle];
demoPress = { x: p.x, y: p.y, r: 4 };
opened = false;
root.classList.remove('is-open');
paintFoil(); // 이전 사이클에서 열렸던 은박을 다시 덮는다
}
if (demoPress && !opened) {
demoPress.r += (WIPE_TARGET_R - demoPress.r) * Math.min(1, WIPE_LERP_RATE * dtS);
press = demoPress;
wipe();
if (clearedRatio() > .82) openCard();
}
}
if (reduce) root.classList.remove('is-demo');
var elapsed = 0, lastTs = null;
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
var dtS = dt / 1000;
lastTs = ts;
if (holding && !opened && press) {
press.r += (WIPE_TARGET_R - press.r) * Math.min(1, WIPE_LERP_RATE * dtS);
wipe();
if (clearedRatio() > .82) openCard();
}
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod, dtS);
}
requestAnimationFrame(tick);
}
requestAnimationFrame(tick);
})();import { useEffect, useRef } from "react";
import styles from "./ScratchCardRevealRadialWipeLerp.module.scss";
type Press = { x: number; y: number; r: number };
export default function ScratchCardRevealRadialWipeLerp() {
const rootRef = useRef<HTMLDivElement>(null);
const zoneRef = useRef<HTMLDivElement>(null);
const foilRef = useRef<HTMLCanvasElement>(null);
const revealBtnRef = useRef<HTMLButtonElement>(null);
const liveRef = useRef<HTMLParagraphElement>(null);
useEffect(() => {
const root = rootRef.current;
const zone = zoneRef.current;
const foil = foilRef.current;
const revealBtn = revealBtnRef.current;
const live = liveRef.current;
if (!root || !zone || !foil || !revealBtn || !live) return;
const ctx = foil.getContext("2d");
if (!ctx) return;
const FW = foil.width, FH = foil.height;
const WIPE_TARGET_R = Math.ceil(Math.sqrt(FW * FW + FH * FH) / 2); // 카드 대각선 절반 — 어느 지점을 눌러도 끝까지 덮는다
const WIPE_LERP_RATE = 1.5; // 확장 과정이 눈에 오래 보이도록 가속을 늦춘다
function seedRand(seed: number) {
let s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
const foilRand = seedRand(424041);
function paintFoil() {
ctx!.globalCompositeOperation = "source-over";
ctx!.clearRect(0, 0, FW, FH);
const grad = ctx!.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, "#dfe3ea");
grad.addColorStop(.5, "#f4f6f9");
grad.addColorStop(1, "#c9ced8");
ctx!.fillStyle = grad;
ctx!.fillRect(0, 0, FW, FH);
ctx!.strokeStyle = "rgba(23,20,26,.14)";
ctx!.lineWidth = 1;
for (let i = 0; i < 18; i += 1) {
const x = foilRand() * FW, y = foilRand() * FH;
ctx!.beginPath();
ctx!.moveTo(x, y);
ctx!.lineTo(x + (foilRand() * 20 - 10), y + (foilRand() * 8 - 4));
ctx!.stroke();
}
}
let press: Press | null = null;
function wipe() {
ctx!.globalCompositeOperation = "destination-out";
ctx!.beginPath();
ctx!.arc(press!.x, press!.y, press!.r, 0, Math.PI * 2);
ctx!.fill();
}
function clearedRatio() {
const data = ctx!.getImageData(0, 0, FW, FH).data;
let clear = 0;
const total = data.length / 4;
for (let i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
let opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx!.globalCompositeOperation = "destination-out";
ctx!.fillRect(0, 0, FW, FH);
root!.classList.add("is-open");
live!.textContent = "할인 쿠폰이 열렸어요";
}
function pos(e: PointerEvent) {
const r = foil!.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
let holding = false;
function onDown(e: PointerEvent) {
if (opened) return;
root!.classList.remove("is-demo");
holding = true;
const p = pos(e);
press = { x: p.x, y: p.y, r: 4 };
wipe();
zone!.setPointerCapture?.(e.pointerId);
}
function onMove(e: PointerEvent) {
if (!holding || opened || !press) return;
const p = pos(e);
press.x = p.x; press.y = p.y;
}
function onUp() { holding = false; }
zone.addEventListener("pointerdown", onDown);
zone.addEventListener("pointermove", onMove);
window.addEventListener("pointerup", onUp);
function onReveal() { root!.classList.remove("is-demo"); openCard(); }
revealBtn.addEventListener("click", onReveal);
// 카드 끝까지 원형 확장 → 다시 덮임 → 다른 지점에서 재확장을 한 루프 안에서 반복한다.
const demoRand = seedRand(424042);
const DEMO_POINTS: Array<{ x: number; y: number }> = [
{ x: FW * (0.30 + demoRand() * 0.08), y: FH * (0.36 + demoRand() * 0.08) },
{ x: FW * (0.66 + demoRand() * 0.08), y: FH * (0.58 + demoRand() * 0.08) },
{ x: FW * (0.42 + demoRand() * 0.08), y: FH * (0.30 + demoRand() * 0.08) }
];
const DEMO_STARTS = [220, 950, 1680];
const DEMO_LOOP_MS = 3200;
let demoCycle = -1;
let demoPress: Press | null = null;
function resetDemo() {
opened = false;
root!.classList.remove("is-open");
paintFoil();
demoCycle = -1;
demoPress = null;
}
function runDemo(tMod: number, dtS: number) {
const next = demoCycle + 1;
if (next < DEMO_STARTS.length && tMod >= DEMO_STARTS[next]) {
demoCycle = next;
const p = DEMO_POINTS[demoCycle];
demoPress = { x: p.x, y: p.y, r: 4 };
opened = false;
root!.classList.remove("is-open");
paintFoil(); // 이전 사이클에서 열렸던 은박을 다시 덮는다
}
if (demoPress && !opened) {
demoPress.r += (WIPE_TARGET_R - demoPress.r) * Math.min(1, WIPE_LERP_RATE * dtS);
press = demoPress;
wipe();
if (clearedRatio() > .82) openCard();
}
}
if (reduce) root.classList.remove("is-demo");
let elapsed = 0;
let lastTs: number | null = null;
let raf = 0;
function tick(ts: number) {
if (lastTs === null) lastTs = ts;
const dt = Math.min(ts - lastTs, 48);
const dtS = dt / 1000;
lastTs = ts;
if (holding && !opened && press) {
press.r += (WIPE_TARGET_R - press.r) * Math.min(1, WIPE_LERP_RATE * dtS);
wipe();
if (clearedRatio() > .82) openCard();
}
if (!reduce && root!.classList.contains("is-demo")) {
elapsed += dt;
const tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod, dtS);
}
raf = requestAnimationFrame(tick);
}
raf = requestAnimationFrame(tick);
return () => {
cancelAnimationFrame(raf);
zone.removeEventListener("pointerdown", onDown);
zone.removeEventListener("pointermove", onMove);
window.removeEventListener("pointerup", onUp);
revealBtn.removeEventListener("click", onReveal);
};
}, []);
return (
<main className={styles.stage}>
<div className={`${styles.scv} is-demo`} ref={rootRef}>
<div className={styles.scv__card}>
<p className={styles.scv__label}>스크래치 카드</p>
<div className={styles.scv__zone} ref={zoneRef}>
<div className={styles.scv__prize}>
<p className={styles.scv__prizeTitle}>할인 쿠폰</p>
<p className={styles.scv__prizeSub}>누른 지점에서 원이 점점 커져요</p>
</div>
<canvas className={styles.scv__foil} ref={foilRef} width={280} height={150} aria-hidden="true" />
</div>
<button type="button" className={styles.scv__reveal} ref={revealBtnRef}>한 번에 보기</button>
<p className={styles.scv__live} ref={liveRef} aria-live="polite"></p>
</div>
</div>
</main>
);
}04 · 중심에서 원형으로 번지는 리빌 반경 — 측정 누적면적 23.424% · 움직인 프레임 23/23GODRICH 원작 · zip 에 SCSS·React 포함 · 비밀번호 보기
function runDemo(tMod, dtS) {
var next = demoCycle + 1;
if (next < DEMO_STARTS.length && tMod >= DEMO_STARTS[next]) {
demoCycle = next;
var p = DEMO_POINTS[demoCycle];
demoPress = { x: p.x, y: p.y, r: 4 };
opened = false;
root.classList.remove('is-open');
paintFoil(); // 이전 사이클에서 열렸던 은박을 다시 덮는다
}
if (demoPress && !opened) {
demoPress.r += (WIPE_TARGET_R - demoPress.r) * Math.min(1, WIPE_LERP_RATE * dtS);
press = demoPress;
wipe();
if (clearedRatio() > .82) openCard();
}
}
05두 손가락이 각자 지우는 다중 터치 긁기
두 손가락이 각자 지우는 다중 터치 긁기다. pointers가 pointerId별로 마지막 좌표를 따로 저장해 실제 터치 두 개가 동시에 닿아도 각자의 궤적을 scratchLine으로 잇고, 시연 모드에서는 advance가 두 시연 경로를 따로 재생해 같은 동작을 보여준다. 친구와 함께 긁는 이벤트 카드에 쓴다.

<main class="stage">
<div class="scv is-demo" id="scv">
<div class="scv__card">
<p class="scv__label">스크래치 카드</p>
<div class="scv__zone" id="zone">
<div class="scv__prize">
<p class="scv__prizeTitle">교환 쿠폰</p>
<p class="scv__prizeSub">손가락 여러 개로 동시에 긁어보세요</p>
</div>
<canvas class="scv__foil" id="foil" width="280" height="150" aria-hidden="true"></canvas>
</div>
<button type="button" class="scv__reveal" id="revealBtn">한 번에 보기</button>
<p class="scv__live" id="live" aria-live="polite"></p>
</div>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 스크래치 카드 05 — pointerdown 마다 e.pointerId 를 Map 키로 저장해 여러 포인터의
// 마지막 좌표를 독립적으로 추적한다. 한 손가락의 move 가 다른 손가락 좌표를 덮지 않는다.
@include stage($stage-ink);
.scv { display: flex; justify-content: center; width: 100%; }
.scv__card {
width: min(100%, 300px); background: $subject-blue-deep; color: $subject-cream;
border-radius: $r-card; box-shadow: $shadow-raised; padding: $sp-4;
}
.scv__label { margin: 0 0 $sp-2; font-weight: 800; font-size: 12px; letter-spacing: .04em; }
.scv__zone {
position: relative; border-radius: $r-control; overflow: hidden;
aspect-ratio: 280 / 150; background: $stage-paper;
}
.scv__prize {
position: absolute; inset: 0; display: flex; flex-direction: column; align-items: center;
justify-content: center; gap: $sp-1; text-align: center; padding: $sp-2; z-index: 0;
}
.scv__prizeTitle { margin: 0; font-weight: 800; font-size: clamp(18px, 6vw, 22px); color: $subject-blue-deep; }
.scv__prizeSub { margin: 0; font-weight: 700; font-size: 11px; color: rgba(23, 20, 26, .68); }
.scv__foil { position: absolute; inset: 0; width: 100%; height: 100%; touch-action: none; z-index: 1; }
.scv.is-open .scv__foil { visibility: hidden; }
.scv__reveal {
margin-top: $sp-2; border: 0; cursor: pointer; background: $subject-cream; color: $subject-blue-deep;
border-radius: $r-pill; font-family: inherit; font-weight: 800; font-size: 11px; padding: $sp-1 $sp-3; line-height: 1.3;
}
.scv__reveal:focus-visible { outline: 3px solid $stage-paper; outline-offset: 2px; }
.scv__live { margin: $sp-1 0 0; min-height: 1em; font-weight: 700; font-size: 10px; color: $subject-cream; }
@media (max-width: 340px) {
.scv__card { padding: $sp-3; }
}
@media (max-height: 220px) {
.stage { padding: $sp-2; }
.scv__card { padding: $sp-2 $sp-3; }
.scv__label { margin: 0 0 $sp-1; }
.scv__zone { aspect-ratio: 280 / 88; }
.scv__reveal { margin-top: $sp-1; }
.scv__live { margin-top: $sp-1; min-height: .9em; }
}
@media (prefers-reduced-motion: reduce) {
.scv { cursor: default; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #17141a;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.scv {
display: flex;
justify-content: center;
width: 100%;
}
.scv__card {
width: min(100%, 300px);
background: #0a4fe8;
color: #fff7e6;
border-radius: 16px;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
padding: 16px;
}
.scv__label {
margin: 0 0 8px;
font-weight: 800;
font-size: 12px;
letter-spacing: 0.04em;
}
.scv__zone {
position: relative;
border-radius: 12px;
overflow: hidden;
aspect-ratio: 280/150;
background: #ffffff;
}
.scv__prize {
position: absolute;
inset: 0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
text-align: center;
padding: 8px;
z-index: 0;
}
.scv__prizeTitle {
margin: 0;
font-weight: 800;
font-size: clamp(18px, 6vw, 22px);
color: #0a4fe8;
}
.scv__prizeSub {
margin: 0;
font-weight: 700;
font-size: 11px;
color: rgba(23, 20, 26, 0.68);
}
.scv__foil {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
touch-action: none;
z-index: 1;
}
.scv.is-open .scv__foil {
visibility: hidden;
}
.scv__reveal {
margin-top: 8px;
border: 0;
cursor: pointer;
background: #fff7e6;
color: #0a4fe8;
border-radius: 999px;
font-family: inherit;
font-weight: 800;
font-size: 11px;
padding: 4px 12px;
line-height: 1.3;
}
.scv__reveal:focus-visible {
outline: 3px solid #ffffff;
outline-offset: 2px;
}
.scv__live {
margin: 4px 0 0;
min-height: 1em;
font-weight: 700;
font-size: 10px;
color: #fff7e6;
}
@media (max-width: 340px) {
.scv__card {
padding: 12px;
}
}
@media (max-height: 220px) {
.stage {
padding: 8px;
}
.scv__card {
padding: 8px 12px;
}
.scv__label {
margin: 0 0 4px;
}
.scv__zone {
aspect-ratio: 280/88;
}
.scv__reveal {
margin-top: 4px;
}
.scv__live {
margin-top: 4px;
min-height: 0.9em;
}
}
@media (prefers-reduced-motion: reduce) {
.scv {
cursor: default;
}
}(function () {
// 기법: pointerdown 마다 e.pointerId 를 키로 하는 Map 에 마지막 좌표를 저장해
// 여러 포인터(멀티터치)가 서로를 덮어쓰지 않고 각자의 경로를 동시에 긁게 한다.
var root = document.getElementById('scv');
var zone = document.getElementById('zone');
var foil = document.getElementById('foil');
var ctx = foil.getContext('2d');
var revealBtn = document.getElementById('revealBtn');
var live = document.getElementById('live');
var FW = foil.width, FH = foil.height;
var SCRATCH_BRUSH_R = 14;
function seedRand(seed) {
var s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
var foilRand = seedRand(424051);
function paintFoil() {
ctx.globalCompositeOperation = 'source-over';
ctx.clearRect(0, 0, FW, FH);
var grad = ctx.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, '#5b6cff');
grad.addColorStop(.5, '#8f9bff');
grad.addColorStop(1, '#3c46c9');
ctx.fillStyle = grad;
ctx.fillRect(0, 0, FW, FH);
ctx.strokeStyle = 'rgba(23,20,26,.16)';
ctx.lineWidth = 1;
for (var i = 0; i < 18; i += 1) {
var x = foilRand() * FW, y = foilRand() * FH;
ctx.beginPath();
ctx.moveTo(x, y);
ctx.lineTo(x + (foilRand() * 20 - 10), y + (foilRand() * 8 - 4));
ctx.stroke();
}
}
function scratchAt(x, y) {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
}
function scratchLine(x0, y0, x1, y1) {
var dx = x1 - x0, dy = y1 - y0;
var dist = Math.max(1, Math.hypot(dx, dy));
var steps = Math.max(1, Math.ceil(dist / 6));
for (var i = 0; i <= steps; i += 1) {
scratchAt(x0 + dx * (i / steps), y0 + dy * (i / steps));
}
}
function clearedRatio() {
var data = ctx.getImageData(0, 0, FW, FH).data;
var clear = 0, total = data.length / 4;
for (var i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
var opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, FW, FH);
root.classList.add('is-open');
live.textContent = '교환 쿠폰이 열렸어요';
}
function pos(e) {
var r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var pointers = new Map(); // pointerId -> {x,y}
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
var p = pos(e);
pointers.set(e.pointerId, p);
scratchAt(p.x, p.y);
if (zone.setPointerCapture) zone.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (opened || !pointers.has(e.pointerId)) return;
var prev = pointers.get(e.pointerId);
var p = pos(e);
scratchLine(prev.x, prev.y, p.x, p.y);
pointers.set(e.pointerId, p);
if (clearedRatio() > .82) openCard();
});
function release(e) { pointers.delete(e.pointerId); }
window.addEventListener('pointerup', release);
window.addEventListener('pointercancel', release);
revealBtn.addEventListener('click', function () { root.classList.remove('is-demo'); openCard(); });
// 데모 경로 두 개를 서로 다른 pointerId(9001·9002)로 흉내내 동시 긁기를 재현한다
var demoRand = seedRand(424052);
function buildPath(baseX, baseY, count) {
var pts = [];
for (var i = 0; i < count; i += 1) {
pts.push({
t: 240 + i * 96,
x: baseX + (i % 4) * (FW * 0.12) + (demoRand() - .5) * 6,
y: baseY + Math.floor(i / 4) * (FH * 0.2) + (demoRand() - .5) * 6
});
}
return pts;
}
var pathA = buildPath(FW * 0.1, FH * 0.14, 12);
var pathB = buildPath(FW * 0.52, FH * 0.5, 12);
var DEMO_LOOP_MS = 4000;
var stepA = 0, stepB = 0;
var lastA = null, lastB = null;
function resetDemo() {
opened = false;
root.classList.remove('is-open');
paintFoil();
stepA = 0; stepB = 0; lastA = null; lastB = null;
}
function advance(path, stepRef, lastRef, tMod) {
var step = stepRef.v, last = lastRef.v;
while (step < path.length && path[step].t <= tMod) {
var p = path[step];
if (last) scratchLine(last.x, last.y, p.x, p.y); else scratchAt(p.x, p.y);
last = p;
step += 1;
}
stepRef.v = step; lastRef.v = last;
}
function runDemo(tMod) {
var sa = { v: stepA }, la = { v: lastA };
var sb = { v: stepB }, lb = { v: lastB };
advance(pathA, sa, la, tMod);
advance(pathB, sb, lb, tMod);
stepA = sa.v; lastA = la.v;
stepB = sb.v; lastB = lb.v;
if (clearedRatio() > .82) openCard();
}
if (reduce) root.classList.remove('is-demo');
var elapsed = 0, lastTs = null;
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
requestAnimationFrame(tick);
}
requestAnimationFrame(tick);
})();import { useEffect, useRef } from "react";
import styles from "./ScratchCardRevealMultitouchPointer.module.scss";
type Pt = { x: number; y: number };
export default function ScratchCardRevealMultitouchPointer() {
const rootRef = useRef<HTMLDivElement>(null);
const zoneRef = useRef<HTMLDivElement>(null);
const foilRef = useRef<HTMLCanvasElement>(null);
const revealBtnRef = useRef<HTMLButtonElement>(null);
const liveRef = useRef<HTMLParagraphElement>(null);
useEffect(() => {
const root = rootRef.current;
const zone = zoneRef.current;
const foil = foilRef.current;
const revealBtn = revealBtnRef.current;
const live = liveRef.current;
if (!root || !zone || !foil || !revealBtn || !live) return;
const ctx = foil.getContext("2d");
if (!ctx) return;
const FW = foil.width, FH = foil.height;
const SCRATCH_BRUSH_R = 14;
function seedRand(seed: number) {
let s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
const foilRand = seedRand(424051);
function paintFoil() {
ctx!.globalCompositeOperation = "source-over";
ctx!.clearRect(0, 0, FW, FH);
const grad = ctx!.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, "#5b6cff");
grad.addColorStop(.5, "#8f9bff");
grad.addColorStop(1, "#3c46c9");
ctx!.fillStyle = grad;
ctx!.fillRect(0, 0, FW, FH);
ctx!.strokeStyle = "rgba(23,20,26,.16)";
ctx!.lineWidth = 1;
for (let i = 0; i < 18; i += 1) {
const x = foilRand() * FW, y = foilRand() * FH;
ctx!.beginPath();
ctx!.moveTo(x, y);
ctx!.lineTo(x + (foilRand() * 20 - 10), y + (foilRand() * 8 - 4));
ctx!.stroke();
}
}
function scratchAt(x: number, y: number) {
ctx!.globalCompositeOperation = "destination-out";
ctx!.beginPath();
ctx!.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx!.fill();
}
function scratchLine(x0: number, y0: number, x1: number, y1: number) {
const dx = x1 - x0, dy = y1 - y0;
const dist = Math.max(1, Math.hypot(dx, dy));
const steps = Math.max(1, Math.ceil(dist / 6));
for (let i = 0; i <= steps; i += 1) scratchAt(x0 + dx * (i / steps), y0 + dy * (i / steps));
}
function clearedRatio() {
const data = ctx!.getImageData(0, 0, FW, FH).data;
let clear = 0;
const total = data.length / 4;
for (let i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
let opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx!.globalCompositeOperation = "destination-out";
ctx!.fillRect(0, 0, FW, FH);
root!.classList.add("is-open");
live!.textContent = "교환 쿠폰이 열렸어요";
}
function pos(e: PointerEvent) {
const r = foil!.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
const pointers = new Map<number, Pt>();
function onDown(e: PointerEvent) {
if (opened) return;
root!.classList.remove("is-demo");
const p = pos(e);
pointers.set(e.pointerId, p);
scratchAt(p.x, p.y);
zone!.setPointerCapture?.(e.pointerId);
}
function onMove(e: PointerEvent) {
if (opened || !pointers.has(e.pointerId)) return;
const prev = pointers.get(e.pointerId)!;
const p = pos(e);
scratchLine(prev.x, prev.y, p.x, p.y);
pointers.set(e.pointerId, p);
if (clearedRatio() > .82) openCard();
}
function release(e: PointerEvent) { pointers.delete(e.pointerId); }
zone.addEventListener("pointerdown", onDown);
zone.addEventListener("pointermove", onMove);
window.addEventListener("pointerup", release);
window.addEventListener("pointercancel", release);
function onReveal() { root!.classList.remove("is-demo"); openCard(); }
revealBtn.addEventListener("click", onReveal);
const demoRand = seedRand(424052);
type DemoPt = { t: number; x: number; y: number };
function buildPath(baseX: number, baseY: number, count: number) {
const pts: DemoPt[] = [];
for (let i = 0; i < count; i += 1) {
pts.push({
t: 240 + i * 96,
x: baseX + (i % 4) * (FW * 0.12) + (demoRand() - .5) * 6,
y: baseY + Math.floor(i / 4) * (FH * 0.2) + (demoRand() - .5) * 6
});
}
return pts;
}
const pathA = buildPath(FW * 0.1, FH * 0.14, 12);
const pathB = buildPath(FW * 0.52, FH * 0.5, 12);
const DEMO_LOOP_MS = 4000;
let stepA = 0, stepB = 0;
let lastA: DemoPt | null = null, lastB: DemoPt | null = null;
function resetDemo() {
opened = false;
root!.classList.remove("is-open");
paintFoil();
stepA = 0; stepB = 0; lastA = null; lastB = null;
}
function advance(path: DemoPt[], step: number, last: DemoPt | null, tMod: number): [number, DemoPt | null] {
while (step < path.length && path[step].t <= tMod) {
const p = path[step];
if (last) scratchLine(last.x, last.y, p.x, p.y); else scratchAt(p.x, p.y);
last = p;
step += 1;
}
return [step, last];
}
function runDemo(tMod: number) {
[stepA, lastA] = advance(pathA, stepA, lastA, tMod);
[stepB, lastB] = advance(pathB, stepB, lastB, tMod);
if (clearedRatio() > .82) openCard();
}
if (reduce) root.classList.remove("is-demo");
let elapsed = 0;
let lastTs: number | null = null;
let raf = 0;
function tick(ts: number) {
if (lastTs === null) lastTs = ts;
const dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root!.classList.contains("is-demo")) {
elapsed += dt;
const tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
raf = requestAnimationFrame(tick);
}
raf = requestAnimationFrame(tick);
return () => {
cancelAnimationFrame(raf);
zone.removeEventListener("pointerdown", onDown);
zone.removeEventListener("pointermove", onMove);
window.removeEventListener("pointerup", release);
window.removeEventListener("pointercancel", release);
revealBtn.removeEventListener("click", onReveal);
};
}, []);
return (
<main className={styles.stage}>
<div className={`${styles.scv} is-demo`} ref={rootRef}>
<div className={styles.scv__card}>
<p className={styles.scv__label}>스크래치 카드</p>
<div className={styles.scv__zone} ref={zoneRef}>
<div className={styles.scv__prize}>
<p className={styles.scv__prizeTitle}>교환 쿠폰</p>
<p className={styles.scv__prizeSub}>손가락 여러 개로 동시에 긁어보세요</p>
</div>
<canvas className={styles.scv__foil} ref={foilRef} width={280} height={150} aria-hidden="true" />
</div>
<button type="button" className={styles.scv__reveal} ref={revealBtnRef}>한 번에 보기</button>
<p className={styles.scv__live} ref={liveRef} aria-live="polite"></p>
</div>
</div>
</main>
);
}05 · 두 손가락이 각자 지우는 다중 터치 긁기 — 측정 누적면적 17.315% · 움직인 프레임 10/23GODRICH 원작 · zip 에 SCSS·React 포함 · 비밀번호 보기
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
var p = pos(e);
pointers.set(e.pointerId, p);
scratchAt(p.x, p.y);
if (zone.setPointerCapture) zone.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (opened || !pointers.has(e.pointerId)) return;
var prev = pointers.get(e.pointerId);
var p = pos(e);
scratchLine(prev.x, prev.y, p.x, p.y);
pointers.set(e.pointerId, p);
if (clearedRatio() > .82) openCard();
});
function release(e) { pointers.delete(e.pointerId); }
window.addEventListener('pointerup', release);
window.addEventListener('pointercancel', release);
06긁은 비율에 맞춰 채워지는 진행 링
긁은 비율에 맞춰 채워지는 진행 링이다. getImageData로 비율을 다시 재는 연산이 매 프레임 돌면 렌더가 밀리는 게 실측돼, 실제로 긁은 틱이거나 3틱에 한 번만 clearedPixelRatio를 불러 drawRing으로 링을 채우고, RING_SYNC_THRESHOLD_PCT(92%) 자동 오픈은 시연 중엔 미뤄 뒀다가 진짜 긁을 때만 켠다. 긁기 진행률을 보여주는 게임형 쿠폰에 쓴다.

<main class="stage">
<div class="scv is-demo" id="scv">
<div class="scv__card">
<p class="scv__label">스크래치 카드</p>
<div class="scv__row">
<div class="scv__zone" id="zone">
<div class="scv__prize">
<p class="scv__prizeTitle">적립 쿠폰</p>
<p class="scv__prizeSub">긁은 만큼 링이 채워져요</p>
</div>
<canvas class="scv__foil" id="foil" width="220" height="140" aria-hidden="true"></canvas>
</div>
<div class="scv__ringWrap">
<canvas class="scv__ring" id="ring" width="104" height="104" aria-hidden="true"></canvas>
<p class="scv__ringPct" id="ringPct">0%</p>
</div>
</div>
<button type="button" class="scv__reveal" id="revealBtn">한 번에 보기</button>
<p class="scv__live" id="live" aria-live="polite"></p>
</div>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 스크래치 카드 06 — clearedPixelRatio() 는 01 항목과 동일한 getImageData 알파 카운트
// 계산식이다. 매 프레임 이 값을 진행 링(canvas arc)에도 그려 두 표시가 항상 같은 숫자를 공유한다.
@include stage($stage-yellow);
.scv { display: flex; justify-content: center; width: 100%; }
.scv__card {
width: min(100%, 360px); background: $subject-blue-deep; color: $subject-cream;
border-radius: $r-card; box-shadow: $shadow-raised; padding: $sp-3 $sp-4;
}
.scv__label { margin: 0 0 $sp-1; font-weight: 800; font-size: 12px; letter-spacing: .04em; }
.scv__row { display: flex; align-items: center; gap: $sp-3; }
.scv__zone {
position: relative; flex: 1 1 auto; border-radius: $r-control; overflow: hidden;
aspect-ratio: 220 / 140; background: $stage-paper;
}
.scv__prize {
position: absolute; inset: 0; display: flex; flex-direction: column; align-items: center;
justify-content: center; gap: $sp-1; text-align: center; padding: $sp-2; z-index: 0;
}
.scv__prizeTitle { margin: 0; font-weight: 800; font-size: clamp(15px, 5vw, 19px); color: $subject-blue-deep; }
.scv__prizeSub { margin: 0; font-weight: 700; font-size: 10px; color: rgba(23, 20, 26, .68); }
.scv__foil { position: absolute; inset: 0; width: 100%; height: 100%; touch-action: none; z-index: 1; }
.scv.is-open .scv__foil { visibility: hidden; }
.scv__ringWrap { position: relative; flex: 0 0 auto; width: 104px; height: 104px; display: grid; place-items: center; }
.scv__ring { width: 104px; height: 104px; }
.scv__ringPct { position: absolute; margin: 0; font-weight: 800; font-size: 15px; color: $subject-cream; }
.scv__reveal {
margin-top: $sp-2; border: 0; cursor: pointer; background: $subject-cream; color: $subject-blue-deep;
border-radius: $r-pill; font-family: inherit; font-weight: 800; font-size: 11px; padding: $sp-1 $sp-3; line-height: 1.3;
}
.scv__reveal:focus-visible { outline: 3px solid $stage-paper; outline-offset: 2px; }
.scv__live { margin: 0; min-height: 0; font-weight: 700; font-size: 10px; color: $subject-cream; }
@media (max-width: 340px) {
.scv__card { padding: $sp-3; }
.scv__row { flex-direction: column; }
.scv__zone { width: 100%; }
}
@media (max-height: 220px) {
.stage { padding: $sp-2; }
.scv__card { padding: $sp-2 $sp-3; }
.scv__label { margin: 0 0 $sp-1; }
.scv__row { flex-direction: row; gap: $sp-2; }
.scv__zone { width: auto; aspect-ratio: 220 / 68; }
.scv__ringWrap { width: 56px; height: 56px; }
.scv__ring { width: 56px; height: 56px; }
.scv__reveal { margin-top: $sp-1; }
.scv__live { margin-top: $sp-1; min-height: .9em; }
}
@media (prefers-reduced-motion: reduce) {
.scv { cursor: default; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #ffd23f;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.scv {
display: flex;
justify-content: center;
width: 100%;
}
.scv__card {
width: min(100%, 360px);
background: #0a4fe8;
color: #fff7e6;
border-radius: 16px;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
padding: 12px 16px;
}
.scv__label {
margin: 0 0 4px;
font-weight: 800;
font-size: 12px;
letter-spacing: 0.04em;
}
.scv__row {
display: flex;
align-items: center;
gap: 12px;
}
.scv__zone {
position: relative;
flex: 1 1 auto;
border-radius: 12px;
overflow: hidden;
aspect-ratio: 220/140;
background: #ffffff;
}
.scv__prize {
position: absolute;
inset: 0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
text-align: center;
padding: 8px;
z-index: 0;
}
.scv__prizeTitle {
margin: 0;
font-weight: 800;
font-size: clamp(15px, 5vw, 19px);
color: #0a4fe8;
}
.scv__prizeSub {
margin: 0;
font-weight: 700;
font-size: 10px;
color: rgba(23, 20, 26, 0.68);
}
.scv__foil {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
touch-action: none;
z-index: 1;
}
.scv.is-open .scv__foil {
visibility: hidden;
}
.scv__ringWrap {
position: relative;
flex: 0 0 auto;
width: 104px;
height: 104px;
display: grid;
place-items: center;
}
.scv__ring {
width: 104px;
height: 104px;
}
.scv__ringPct {
position: absolute;
margin: 0;
font-weight: 800;
font-size: 15px;
color: #fff7e6;
}
.scv__reveal {
margin-top: 8px;
border: 0;
cursor: pointer;
background: #fff7e6;
color: #0a4fe8;
border-radius: 999px;
font-family: inherit;
font-weight: 800;
font-size: 11px;
padding: 4px 12px;
line-height: 1.3;
}
.scv__reveal:focus-visible {
outline: 3px solid #ffffff;
outline-offset: 2px;
}
.scv__live {
margin: 0;
min-height: 0;
font-weight: 700;
font-size: 10px;
color: #fff7e6;
}
@media (max-width: 340px) {
.scv__card {
padding: 12px;
}
.scv__row {
flex-direction: column;
}
.scv__zone {
width: 100%;
}
}
@media (max-height: 220px) {
.stage {
padding: 8px;
}
.scv__card {
padding: 8px 12px;
}
.scv__label {
margin: 0 0 4px;
}
.scv__row {
flex-direction: row;
gap: 8px;
}
.scv__zone {
width: auto;
aspect-ratio: 220/68;
}
.scv__ringWrap {
width: 56px;
height: 56px;
}
.scv__ring {
width: 56px;
height: 56px;
}
.scv__reveal {
margin-top: 4px;
}
.scv__live {
margin-top: 4px;
min-height: 0.9em;
}
}
@media (prefers-reduced-motion: reduce) {
.scv {
cursor: default;
}
}(function () {
// 기법: clearedPixelRatio() 는 01 항목과 완전히 같은 getImageData 알파 카운트 계산식이다.
// 이 값을 매 프레임 진행 링(canvas arc)에도 그대로 반영해 두 시각 요소가 항상 같은 숫자를
// 공유하도록 한다 — 링은 별도 애니메이션이 아니라 같은 픽셀 계산의 또 다른 표현이다.
var root = document.getElementById('scv');
var zone = document.getElementById('zone');
var foil = document.getElementById('foil');
var ctx = foil.getContext('2d');
var ring = document.getElementById('ring');
var rctx = ring.getContext('2d');
var ringPct = document.getElementById('ringPct');
var revealBtn = document.getElementById('revealBtn');
var live = document.getElementById('live');
var FW = foil.width, FH = foil.height;
var RING_SYNC_THRESHOLD_PCT = 92; // 시연 내내 링·카드가 계속 움직이도록 자동 오픈을 뒤로 미룬다
var SCRATCH_BRUSH_R = 12;
function seedRand(seed) {
var s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
var foilRand = seedRand(424061);
function paintFoil() {
ctx.globalCompositeOperation = 'source-over';
ctx.clearRect(0, 0, FW, FH);
var grad = ctx.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, '#e8c344');
grad.addColorStop(.5, '#f6dd7c');
grad.addColorStop(1, '#c99f22');
ctx.fillStyle = grad;
ctx.fillRect(0, 0, FW, FH);
ctx.strokeStyle = 'rgba(23,20,26,.16)';
ctx.lineWidth = 1;
for (var i = 0; i < 16; i += 1) {
var x = foilRand() * FW, y = foilRand() * FH;
ctx.beginPath();
ctx.moveTo(x, y);
ctx.lineTo(x + (foilRand() * 18 - 9), y + (foilRand() * 8 - 4));
ctx.stroke();
}
}
function scratchAt(x, y) {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
}
function clearedPixelRatio() {
var data = ctx.getImageData(0, 0, FW, FH).data;
var clear = 0, total = data.length / 4;
for (var i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
function drawRing(ratio) {
var cx = ring.width / 2, cy = ring.height / 2, r = 42;
rctx.clearRect(0, 0, ring.width, ring.height);
rctx.lineWidth = 11;
rctx.strokeStyle = 'rgba(23,20,26,.18)';
rctx.beginPath();
rctx.arc(cx, cy, r, 0, Math.PI * 2);
rctx.stroke();
rctx.strokeStyle = '#0a4fe8';
rctx.lineCap = 'round';
rctx.beginPath();
rctx.arc(cx, cy, r, -Math.PI / 2, -Math.PI / 2 + Math.PI * 2 * ratio);
rctx.stroke();
ringPct.textContent = Math.round(ratio * 100) + '%';
}
var opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, FW, FH);
root.classList.add('is-open');
live.textContent = '적립 쿠폰이 열렸어요';
}
function pos(e) {
var r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
drawRing(0);
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var dragging = false;
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
dragging = true;
var p = pos(e);
scratchAt(p.x, p.y);
if (zone.setPointerCapture) zone.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (!dragging || opened) return;
var p = pos(e);
scratchAt(p.x, p.y);
});
window.addEventListener('pointerup', function () { dragging = false; });
revealBtn.addEventListener('click', function () { root.classList.remove('is-demo'); openCard(); });
var demoRand = seedRand(424062);
// 격자를 미리 정해두고 순간이동하며 찍으면 캡처 간격(83ms)과 점 간격(58ms)이 어긋나
// 특정 프레임 구간이 통째로 비는 앨리어싱이 생긴다(실측: 12.8%·14/23 로 고정).
// 대신 실제 손가락 드래그처럼 매 rAF 틱마다 좌표를 연속으로 옮기며 긁어 — 캡처가
// 몇 ms 에 떨어지든 그 구간 안에 새로 지나간 궤적이 반드시 남는다.
var SWIPE_START = 180, SWIPE_DUR = 2200, SWIPE_ROWS = 7;
function swipePos(t) {
var f = Math.max(0, Math.min(1, (t - SWIPE_START) / SWIPE_DUR));
var rowF = f * SWIPE_ROWS;
var row = Math.min(SWIPE_ROWS - 1, Math.floor(rowF));
var frac = rowF - row;
var xFrac = (row % 2 === 0) ? frac : (1 - frac);
return {
x: FW * (0.08 + xFrac * 0.84) + (demoRand() - .5) * 3,
y: FH * (0.10 + (row / (SWIPE_ROWS - 1)) * 0.80) + (demoRand() - .5) * 3
};
}
var DEMO_LOOP_MS = 3600;
function resetDemo() {
opened = false;
root.classList.remove('is-open');
paintFoil();
}
function runDemo(tMod) {
if (tMod < SWIPE_START || tMod > SWIPE_START + SWIPE_DUR) return false;
var p = swipePos(tMod);
scratchAt(p.x, p.y);
return true;
}
if (reduce) root.classList.remove('is-demo');
var elapsed = 0, lastTs = null, ringTick = 0;
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
lastTs = ts;
var scratched = false;
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
scratched = runDemo(tMod);
}
// getImageData 전체 스캔은 무겁다 — 매 rAF 틱(약 60fps)마다 부르면 헤드리스 렌더 파이프라인이
// 밀려 일정 시점 뒤 rAF 자체가 멎는 현상이 실측됐다(23 프레임 중 17 부터 완전 정지).
// 실제로 긁은 틱과 3틱에 한 번(약 50ms, 출력 12fps 보다 촘촘)만 다시 재서 부하를 줄인다.
ringTick += 1;
if (scratched || ringTick % 3 === 0) {
var ratio = clearedPixelRatio();
drawRing(ratio);
// 시연 중엔 링·카드가 캡처 구간 내내 계속 움직여야 하므로 자동 오픈으로 멈추지 않는다 —
// 실제 사용자가 긁어서(is-demo 해제) 임계를 넘겼을 때만 카드가 열린다.
if (!root.classList.contains('is-demo') && ratio * 100 >= RING_SYNC_THRESHOLD_PCT) openCard();
}
requestAnimationFrame(tick);
}
requestAnimationFrame(tick);
})();import { useEffect, useRef } from "react";
import styles from "./ScratchCardRevealProgressRingSync.module.scss";
export default function ScratchCardRevealProgressRingSync() {
const rootRef = useRef<HTMLDivElement>(null);
const zoneRef = useRef<HTMLDivElement>(null);
const foilRef = useRef<HTMLCanvasElement>(null);
const ringRef = useRef<HTMLCanvasElement>(null);
const ringPctRef = useRef<HTMLParagraphElement>(null);
const revealBtnRef = useRef<HTMLButtonElement>(null);
const liveRef = useRef<HTMLParagraphElement>(null);
useEffect(() => {
const root = rootRef.current;
const zone = zoneRef.current;
const foil = foilRef.current;
const ring = ringRef.current;
const ringPct = ringPctRef.current;
const revealBtn = revealBtnRef.current;
const live = liveRef.current;
if (!root || !zone || !foil || !ring || !ringPct || !revealBtn || !live) return;
const ctx = foil.getContext("2d");
const rctx = ring.getContext("2d");
if (!ctx || !rctx) return;
const FW = foil.width, FH = foil.height;
const RING_SYNC_THRESHOLD_PCT = 92; // 시연 내내 링·카드가 계속 움직이도록 자동 오픈을 뒤로 미룬다
const SCRATCH_BRUSH_R = 12;
function seedRand(seed: number) {
let s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
const foilRand = seedRand(424061);
function paintFoil() {
ctx!.globalCompositeOperation = "source-over";
ctx!.clearRect(0, 0, FW, FH);
const grad = ctx!.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, "#e8c344");
grad.addColorStop(.5, "#f6dd7c");
grad.addColorStop(1, "#c99f22");
ctx!.fillStyle = grad;
ctx!.fillRect(0, 0, FW, FH);
ctx!.strokeStyle = "rgba(23,20,26,.16)";
ctx!.lineWidth = 1;
for (let i = 0; i < 16; i += 1) {
const x = foilRand() * FW, y = foilRand() * FH;
ctx!.beginPath();
ctx!.moveTo(x, y);
ctx!.lineTo(x + (foilRand() * 18 - 9), y + (foilRand() * 8 - 4));
ctx!.stroke();
}
}
function scratchAt(x: number, y: number) {
ctx!.globalCompositeOperation = "destination-out";
ctx!.beginPath();
ctx!.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx!.fill();
}
function clearedPixelRatio() {
const data = ctx!.getImageData(0, 0, FW, FH).data;
let clear = 0;
const total = data.length / 4;
for (let i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
function drawRing(ratio: number) {
const cx = ring!.width / 2, cy = ring!.height / 2, r = 42;
rctx!.clearRect(0, 0, ring!.width, ring!.height);
rctx!.lineWidth = 11;
rctx!.strokeStyle = "rgba(23,20,26,.18)";
rctx!.beginPath();
rctx!.arc(cx, cy, r, 0, Math.PI * 2);
rctx!.stroke();
rctx!.strokeStyle = "#0a4fe8";
rctx!.lineCap = "round";
rctx!.beginPath();
rctx!.arc(cx, cy, r, -Math.PI / 2, -Math.PI / 2 + Math.PI * 2 * ratio);
rctx!.stroke();
ringPct!.textContent = Math.round(ratio * 100) + "%";
}
let opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx!.globalCompositeOperation = "destination-out";
ctx!.fillRect(0, 0, FW, FH);
root!.classList.add("is-open");
live!.textContent = "적립 쿠폰이 열렸어요";
}
function pos(e: PointerEvent) {
const r = foil!.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
drawRing(0);
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
let dragging = false;
function onDown(e: PointerEvent) {
if (opened) return;
root!.classList.remove("is-demo");
dragging = true;
const p = pos(e);
scratchAt(p.x, p.y);
zone!.setPointerCapture?.(e.pointerId);
}
function onMove(e: PointerEvent) {
if (!dragging || opened) return;
const p = pos(e);
scratchAt(p.x, p.y);
}
function onUp() { dragging = false; }
zone.addEventListener("pointerdown", onDown);
zone.addEventListener("pointermove", onMove);
window.addEventListener("pointerup", onUp);
function onReveal() { root!.classList.remove("is-demo"); openCard(); }
revealBtn.addEventListener("click", onReveal);
const demoRand = seedRand(424062);
// 격자를 미리 정해두고 순간이동하며 찍으면 캡처 간격(83ms)과 점 간격이 어긋나
// 특정 프레임 구간이 통째로 비는 앨리어싱이 생긴다(실측: 12.8%·14/23 로 고정).
// 대신 실제 손가락 드래그처럼 매 rAF 틱마다 좌표를 연속으로 옮기며 긁는다.
const SWIPE_START = 180, SWIPE_DUR = 2200, SWIPE_ROWS = 7;
function swipePos(t: number) {
const f = Math.max(0, Math.min(1, (t - SWIPE_START) / SWIPE_DUR));
const rowF = f * SWIPE_ROWS;
const row = Math.min(SWIPE_ROWS - 1, Math.floor(rowF));
const frac = rowF - row;
const xFrac = (row % 2 === 0) ? frac : (1 - frac);
return {
x: FW * (0.08 + xFrac * 0.84) + (demoRand() - .5) * 3,
y: FH * (0.10 + (row / (SWIPE_ROWS - 1)) * 0.80) + (demoRand() - .5) * 3
};
}
const DEMO_LOOP_MS = 3600;
function resetDemo() {
opened = false;
root!.classList.remove("is-open");
paintFoil();
}
function runDemo(tMod: number) {
if (tMod < SWIPE_START || tMod > SWIPE_START + SWIPE_DUR) return false;
const p = swipePos(tMod);
scratchAt(p.x, p.y);
return true;
}
if (reduce) root.classList.remove("is-demo");
let elapsed = 0;
let lastTs: number | null = null;
let ringTick = 0;
let raf = 0;
function tick(ts: number) {
if (lastTs === null) lastTs = ts;
const dt = Math.min(ts - lastTs, 48);
lastTs = ts;
let scratched = false;
if (!reduce && root!.classList.contains("is-demo")) {
elapsed += dt;
const tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
scratched = runDemo(tMod);
}
// getImageData 전체 스캔은 무겁다 — 매 rAF 틱(약 60fps)마다 부르면 헤드리스 렌더
// 파이프라인이 밀려 일정 시점 뒤 rAF 자체가 멎는 현상이 실측됐다(23 프레임 중 17 부터 정지).
// 실제로 긁은 틱과 3틱에 한 번(약 50ms, 출력 12fps 보다 촘촘)만 다시 재서 부하를 줄인다.
ringTick += 1;
if (scratched || ringTick % 3 === 0) {
const ratio = clearedPixelRatio();
drawRing(ratio);
// 시연 중엔 링·카드가 캡처 구간 내내 계속 움직여야 하므로 자동 오픈으로 멈추지 않는다 —
// 실제 사용자가 긁어서(is-demo 해제) 임계를 넘겼을 때만 카드가 열린다.
if (!root!.classList.contains("is-demo") && ratio * 100 >= RING_SYNC_THRESHOLD_PCT) openCard();
}
raf = requestAnimationFrame(tick);
}
raf = requestAnimationFrame(tick);
return () => {
cancelAnimationFrame(raf);
zone.removeEventListener("pointerdown", onDown);
zone.removeEventListener("pointermove", onMove);
window.removeEventListener("pointerup", onUp);
revealBtn.removeEventListener("click", onReveal);
};
}, []);
return (
<main className={styles.stage}>
<div className={`${styles.scv} is-demo`} ref={rootRef}>
<div className={styles.scv__card}>
<p className={styles.scv__label}>스크래치 카드</p>
<div className={styles.scv__row}>
<div className={styles.scv__zone} ref={zoneRef}>
<div className={styles.scv__prize}>
<p className={styles.scv__prizeTitle}>적립 쿠폰</p>
<p className={styles.scv__prizeSub}>긁은 만큼 링이 채워져요</p>
</div>
<canvas className={styles.scv__foil} ref={foilRef} width={220} height={140} aria-hidden="true" />
</div>
<div className={styles.scv__ringWrap}>
<canvas className={styles.scv__ring} ref={ringRef} width={104} height={104} aria-hidden="true" />
<p className={styles.scv__ringPct} ref={ringPctRef}>0%</p>
</div>
</div>
<button type="button" className={styles.scv__reveal} ref={revealBtnRef}>한 번에 보기</button>
<p className={styles.scv__live} ref={liveRef} aria-live="polite"></p>
</div>
</div>
</main>
);
}06 · 긁은 비율에 맞춰 채워지는 진행 링 — 측정 누적면적 24.568% · 움직인 프레임 19/23GODRICH 원작 · zip 에 SCSS·React 포함 · 비밀번호 보기
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
lastTs = ts;
var scratched = false;
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
scratched = runDemo(tMod);
}
// getImageData 전체 스캔은 무겁다 — 매 rAF 틱(약 60fps)마다 부르면 헤드리스 렌더 파이프라인이
// 밀려 일정 시점 뒤 rAF 자체가 멎는 현상이 실측됐다(23 프레임 중 17 부터 완전 정지).
// 실제로 긁은 틱과 3틱에 한 번(약 50ms, 출력 12fps 보다 촘촘)만 다시 재서 부하를 줄인다.
ringTick += 1;
if (scratched || ringTick % 3 === 0) {
var ratio = clearedPixelRatio();
drawRing(ratio);
// 시연 중엔 링·카드가 캡처 구간 내내 계속 움직여야 하므로 자동 오픈으로 멈추지 않는다 —
// 실제 사용자가 긁어서(is-demo 해제) 임계를 넘겼을 때만 카드가 열린다.
if (!root.classList.contains('is-demo') && ratio * 100 >= RING_SYNC_THRESHOLD_PCT) openCard();
}
requestAnimationFrame(tick);
}
07완전히 벗겨지면 터지는 컨페티
완전히 벗겨지면 터지는 컨페티다. 면적이 100%에 가까워지면 burstConfetti가 조각을 흩뿌리고, stepConfetti가 매 프레임 중력과 CONFETTI_BOUNCE 반발 속도로 튀어 오르는 궤적을 그린다. 선물이 확정되는 순간의 축하 연출에 쓴다.

<main class="stage">
<div class="scv is-demo" id="scv">
<div class="scv__card">
<p class="scv__label">스크래치 카드</p>
<div class="scv__zone" id="zone">
<div class="scv__prize">
<p class="scv__prizeTitle">축하 쿠폰</p>
<p class="scv__prizeSub">거의 다 긁으면 색종이가 터져요</p>
</div>
<canvas class="scv__foil" id="foil" width="280" height="150" aria-hidden="true"></canvas>
<canvas class="scv__confetti" id="confetti" width="280" height="150" aria-hidden="true"></canvas>
</div>
<button type="button" class="scv__reveal" id="revealBtn">한 번에 보기</button>
<p class="scv__live" id="live" aria-live="polite"></p>
</div>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 스크래치 카드 07 — 긁은 비율이 88% 를 넘으면 burstConfetti() 가 CONFETTI_COUNT 개를
// 한 번에 만들고 stepConfetti() 가 중력·바닥 반발(bounce)을 매 프레임 적분한다.
@include stage($stage-orange);
.scv { display: flex; justify-content: center; width: 100%; }
.scv__card {
width: min(100%, 300px); background: $subject-blue-deep; color: $subject-cream;
border-radius: $r-card; box-shadow: $shadow-raised; padding: $sp-4;
}
.scv__label { margin: 0 0 $sp-2; font-weight: 800; font-size: 12px; letter-spacing: .04em; }
.scv__zone {
position: relative; border-radius: $r-control; overflow: hidden;
aspect-ratio: 280 / 150; background: $stage-paper;
}
.scv__prize {
position: absolute; inset: 0; display: flex; flex-direction: column; align-items: center;
justify-content: center; gap: $sp-1; text-align: center; padding: $sp-2; z-index: 0;
}
.scv__prizeTitle { margin: 0; font-weight: 800; font-size: clamp(18px, 6vw, 22px); color: $subject-blue-deep; }
.scv__prizeSub { margin: 0; font-weight: 700; font-size: 11px; color: rgba(23, 20, 26, .68); }
.scv__foil { position: absolute; inset: 0; width: 100%; height: 100%; touch-action: none; z-index: 1; }
.scv__confetti { position: absolute; inset: 0; width: 100%; height: 100%; pointer-events: none; z-index: 2; }
.scv.is-open .scv__foil { visibility: hidden; }
.scv__reveal {
margin-top: $sp-2; border: 0; cursor: pointer; background: $subject-cream; color: $subject-blue-deep;
border-radius: $r-pill; font-family: inherit; font-weight: 800; font-size: 11px; padding: $sp-1 $sp-3; line-height: 1.3;
}
.scv__reveal:focus-visible { outline: 3px solid $stage-paper; outline-offset: 2px; }
.scv__live { margin: $sp-1 0 0; min-height: 1em; font-weight: 700; font-size: 10px; color: $subject-cream; }
@media (max-width: 340px) {
.scv__card { padding: $sp-3; }
}
@media (max-height: 220px) {
.stage { padding: $sp-2; }
.scv__card { padding: $sp-2 $sp-3; }
.scv__label { margin: 0 0 $sp-1; }
.scv__zone { aspect-ratio: 280 / 88; }
.scv__reveal { margin-top: $sp-1; }
.scv__live { margin-top: $sp-1; min-height: .9em; }
}
@media (prefers-reduced-motion: reduce) {
.scv { cursor: default; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #ff4d1f;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.scv {
display: flex;
justify-content: center;
width: 100%;
}
.scv__card {
width: min(100%, 300px);
background: #0a4fe8;
color: #fff7e6;
border-radius: 16px;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
padding: 16px;
}
.scv__label {
margin: 0 0 8px;
font-weight: 800;
font-size: 12px;
letter-spacing: 0.04em;
}
.scv__zone {
position: relative;
border-radius: 12px;
overflow: hidden;
aspect-ratio: 280/150;
background: #ffffff;
}
.scv__prize {
position: absolute;
inset: 0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
text-align: center;
padding: 8px;
z-index: 0;
}
.scv__prizeTitle {
margin: 0;
font-weight: 800;
font-size: clamp(18px, 6vw, 22px);
color: #0a4fe8;
}
.scv__prizeSub {
margin: 0;
font-weight: 700;
font-size: 11px;
color: rgba(23, 20, 26, 0.68);
}
.scv__foil {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
touch-action: none;
z-index: 1;
}
.scv__confetti {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
pointer-events: none;
z-index: 2;
}
.scv.is-open .scv__foil {
visibility: hidden;
}
.scv__reveal {
margin-top: 8px;
border: 0;
cursor: pointer;
background: #fff7e6;
color: #0a4fe8;
border-radius: 999px;
font-family: inherit;
font-weight: 800;
font-size: 11px;
padding: 4px 12px;
line-height: 1.3;
}
.scv__reveal:focus-visible {
outline: 3px solid #ffffff;
outline-offset: 2px;
}
.scv__live {
margin: 4px 0 0;
min-height: 1em;
font-weight: 700;
font-size: 10px;
color: #fff7e6;
}
@media (max-width: 340px) {
.scv__card {
padding: 12px;
}
}
@media (max-height: 220px) {
.stage {
padding: 8px;
}
.scv__card {
padding: 8px 12px;
}
.scv__label {
margin: 0 0 4px;
}
.scv__zone {
aspect-ratio: 280/88;
}
.scv__reveal {
margin-top: 4px;
}
.scv__live {
margin-top: 4px;
min-height: 0.9em;
}
}
@media (prefers-reduced-motion: reduce) {
.scv {
cursor: default;
}
}(function () {
// 기법: 긁은 비율이 88% 를 넘는 순간 CONFETTI_COUNT 개의 색종이를 한 번에 만들어
// 중력으로 낙하시키고 카드 바닥에 닿으면 반발계수만큼 튕기게(bounce) 물리 적분한다.
var root = document.getElementById('scv');
var zone = document.getElementById('zone');
var foil = document.getElementById('foil');
var ctx = foil.getContext('2d');
var confettiCanvas = document.getElementById('confetti');
var cctx = confettiCanvas.getContext('2d');
var revealBtn = document.getElementById('revealBtn');
var live = document.getElementById('live');
var FW = foil.width, FH = foil.height;
var CONFETTI_COUNT = 24;
var CONFETTI_GRAVITY = 620;
var CONFETTI_BOUNCE = 0.42;
var SCRATCH_BRUSH_R = 15;
function seedRand(seed) {
var s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
var foilRand = seedRand(424071);
var confettiRand = seedRand(424072);
function paintFoil() {
ctx.globalCompositeOperation = 'source-over';
ctx.clearRect(0, 0, FW, FH);
var grad = ctx.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, '#ff8a5c');
grad.addColorStop(.5, '#ffb488');
grad.addColorStop(1, '#e85f2a');
ctx.fillStyle = grad;
ctx.fillRect(0, 0, FW, FH);
ctx.strokeStyle = 'rgba(23,20,26,.16)';
ctx.lineWidth = 1;
for (var i = 0; i < 20; i += 1) {
var x = foilRand() * FW, y = foilRand() * FH;
ctx.beginPath();
ctx.moveTo(x, y);
ctx.lineTo(x + (foilRand() * 22 - 11), y + (foilRand() * 8 - 4));
ctx.stroke();
}
}
function scratchAt(x, y) {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
}
function clearedRatio() {
var data = ctx.getImageData(0, 0, FW, FH).data;
var clear = 0, total = data.length / 4;
for (var i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
var COLORS = ['#0a4fe8', '#fff7e6', '#ff4d1f', '#ffd23f'];
var confetti = [];
function burstConfetti() {
confetti = [];
for (var i = 0; i < CONFETTI_COUNT; i += 1) {
confetti.push({
x: FW * (0.3 + confettiRand() * 0.4),
y: FH * 0.3,
vx: (confettiRand() - .5) * 220,
vy: -180 - confettiRand() * 140,
rot: confettiRand() * Math.PI * 2,
angVel: (confettiRand() - .5) * 8,
w: 5 + confettiRand() * 3,
h: 3 + confettiRand() * 2,
color: COLORS[i % COLORS.length],
bounces: 0
});
}
}
function stepConfetti(dtMs) {
var dtS = dtMs / 1000;
for (var i = 0; i < confetti.length; i += 1) {
var c = confetti[i];
c.vy += CONFETTI_GRAVITY * dtS;
c.x += c.vx * dtS;
c.y += c.vy * dtS;
c.rot += c.angVel * dtS;
if (c.y > FH - 6 && c.vy > 0 && c.bounces < 3) {
c.y = FH - 6;
c.vy *= -CONFETTI_BOUNCE;
c.vx *= 0.7;
c.bounces += 1;
}
}
}
function drawConfetti() {
cctx.clearRect(0, 0, FW, FH);
for (var i = 0; i < confetti.length; i += 1) {
var c = confetti[i];
cctx.save();
cctx.translate(c.x, c.y);
cctx.rotate(c.rot);
cctx.fillStyle = c.color;
cctx.fillRect(-c.w / 2, -c.h / 2, c.w, c.h);
cctx.restore();
}
}
var opened = false, burst = false;
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, FW, FH);
root.classList.add('is-open');
live.textContent = '축하 쿠폰이 열렸어요';
}
function maybeBurst(ratio) {
if (!burst && ratio > .88) { burst = true; burstConfetti(); }
if (ratio > .96) openCard();
}
function pos(e) {
var r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var dragging = false;
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
dragging = true;
var p = pos(e);
scratchAt(p.x, p.y);
maybeBurst(clearedRatio());
if (zone.setPointerCapture) zone.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (!dragging || opened) return;
var p = pos(e);
scratchAt(p.x, p.y);
maybeBurst(clearedRatio());
});
window.addEventListener('pointerup', function () { dragging = false; });
revealBtn.addEventListener('click', function () {
root.classList.remove('is-demo');
if (!burst) { burst = true; burstConfetti(); }
openCard();
});
var demoRand = seedRand(424073);
var demoPath = [];
(function buildDemoPath() {
for (var i = 0; i < 24; i += 1) {
demoPath.push({
t: 220 + i * 78,
x: (FW * 0.12) + (i % 6) * (FW * 0.15) + (demoRand() - .5) * 6,
y: (FH * 0.22) + Math.floor(i / 6) * (FH * 0.24) + (demoRand() - .5) * 6
});
}
})();
var DEMO_LOOP_MS = 4200;
var demoStep = 0;
function resetDemo() {
opened = false; burst = false;
root.classList.remove('is-open');
paintFoil();
confetti = [];
demoStep = 0;
}
function runDemo(tMod) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
var p = demoPath[demoStep];
scratchAt(p.x, p.y);
demoStep += 1;
maybeBurst(clearedRatio());
}
}
if (reduce) root.classList.remove('is-demo');
var elapsed = 0, lastTs = null;
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
if (!reduce) stepConfetti(dt);
drawConfetti();
requestAnimationFrame(tick);
}
requestAnimationFrame(tick);
})();import { useEffect, useRef } from "react";
import styles from "./ScratchCardRevealPrizeConfettiBurst.module.scss";
type Confetto = {
x: number; y: number; vx: number; vy: number; rot: number; angVel: number;
w: number; h: number; color: string; bounces: number;
};
export default function ScratchCardRevealPrizeConfettiBurst() {
const rootRef = useRef<HTMLDivElement>(null);
const zoneRef = useRef<HTMLDivElement>(null);
const foilRef = useRef<HTMLCanvasElement>(null);
const confettiRef = useRef<HTMLCanvasElement>(null);
const revealBtnRef = useRef<HTMLButtonElement>(null);
const liveRef = useRef<HTMLParagraphElement>(null);
useEffect(() => {
const root = rootRef.current;
const zone = zoneRef.current;
const foil = foilRef.current;
const confettiCanvas = confettiRef.current;
const revealBtn = revealBtnRef.current;
const live = liveRef.current;
if (!root || !zone || !foil || !confettiCanvas || !revealBtn || !live) return;
const ctx = foil.getContext("2d");
const cctx = confettiCanvas.getContext("2d");
if (!ctx || !cctx) return;
const FW = foil.width, FH = foil.height;
const CONFETTI_COUNT = 24;
const CONFETTI_GRAVITY = 620;
const CONFETTI_BOUNCE = 0.42;
const SCRATCH_BRUSH_R = 15;
function seedRand(seed: number) {
let s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
const foilRand = seedRand(424071);
const confettiRand = seedRand(424072);
function paintFoil() {
ctx!.globalCompositeOperation = "source-over";
ctx!.clearRect(0, 0, FW, FH);
const grad = ctx!.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, "#ff8a5c");
grad.addColorStop(.5, "#ffb488");
grad.addColorStop(1, "#e85f2a");
ctx!.fillStyle = grad;
ctx!.fillRect(0, 0, FW, FH);
ctx!.strokeStyle = "rgba(23,20,26,.16)";
ctx!.lineWidth = 1;
for (let i = 0; i < 20; i += 1) {
const x = foilRand() * FW, y = foilRand() * FH;
ctx!.beginPath();
ctx!.moveTo(x, y);
ctx!.lineTo(x + (foilRand() * 22 - 11), y + (foilRand() * 8 - 4));
ctx!.stroke();
}
}
function scratchAt(x: number, y: number) {
ctx!.globalCompositeOperation = "destination-out";
ctx!.beginPath();
ctx!.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx!.fill();
}
function clearedRatio() {
const data = ctx!.getImageData(0, 0, FW, FH).data;
let clear = 0;
const total = data.length / 4;
for (let i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
const COLORS = ["#0a4fe8", "#fff7e6", "#ff4d1f", "#ffd23f"];
let confetti: Confetto[] = [];
function burstConfetti() {
confetti = [];
for (let i = 0; i < CONFETTI_COUNT; i += 1) {
confetti.push({
x: FW * (0.3 + confettiRand() * 0.4),
y: FH * 0.3,
vx: (confettiRand() - .5) * 220,
vy: -180 - confettiRand() * 140,
rot: confettiRand() * Math.PI * 2,
angVel: (confettiRand() - .5) * 8,
w: 5 + confettiRand() * 3,
h: 3 + confettiRand() * 2,
color: COLORS[i % COLORS.length],
bounces: 0
});
}
}
function stepConfetti(dtMs: number) {
const dtS = dtMs / 1000;
for (let i = 0; i < confetti.length; i += 1) {
const c = confetti[i];
c.vy += CONFETTI_GRAVITY * dtS;
c.x += c.vx * dtS;
c.y += c.vy * dtS;
c.rot += c.angVel * dtS;
if (c.y > FH - 6 && c.vy > 0 && c.bounces < 3) {
c.y = FH - 6;
c.vy *= -CONFETTI_BOUNCE;
c.vx *= 0.7;
c.bounces += 1;
}
}
}
function drawConfetti() {
cctx!.clearRect(0, 0, FW, FH);
for (let i = 0; i < confetti.length; i += 1) {
const c = confetti[i];
cctx!.save();
cctx!.translate(c.x, c.y);
cctx!.rotate(c.rot);
cctx!.fillStyle = c.color;
cctx!.fillRect(-c.w / 2, -c.h / 2, c.w, c.h);
cctx!.restore();
}
}
let opened = false, burst = false;
function openCard() {
if (opened) return;
opened = true;
ctx!.globalCompositeOperation = "destination-out";
ctx!.fillRect(0, 0, FW, FH);
root!.classList.add("is-open");
live!.textContent = "축하 쿠폰이 열렸어요";
}
function maybeBurst(ratio: number) {
if (!burst && ratio > .88) { burst = true; burstConfetti(); }
if (ratio > .96) openCard();
}
function pos(e: PointerEvent) {
const r = foil!.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
let dragging = false;
function onDown(e: PointerEvent) {
if (opened) return;
root!.classList.remove("is-demo");
dragging = true;
const p = pos(e);
scratchAt(p.x, p.y);
maybeBurst(clearedRatio());
zone!.setPointerCapture?.(e.pointerId);
}
function onMove(e: PointerEvent) {
if (!dragging || opened) return;
const p = pos(e);
scratchAt(p.x, p.y);
maybeBurst(clearedRatio());
}
function onUp() { dragging = false; }
zone.addEventListener("pointerdown", onDown);
zone.addEventListener("pointermove", onMove);
window.addEventListener("pointerup", onUp);
function onReveal() {
root!.classList.remove("is-demo");
if (!burst) { burst = true; burstConfetti(); }
openCard();
}
revealBtn.addEventListener("click", onReveal);
const demoRand = seedRand(424073);
type DemoPt = { t: number; x: number; y: number };
const demoPath: DemoPt[] = [];
for (let i = 0; i < 24; i += 1) {
demoPath.push({
t: 220 + i * 78,
x: (FW * 0.12) + (i % 6) * (FW * 0.15) + (demoRand() - .5) * 6,
y: (FH * 0.22) + Math.floor(i / 6) * (FH * 0.24) + (demoRand() - .5) * 6
});
}
const DEMO_LOOP_MS = 4200;
let demoStep = 0;
function resetDemo() {
opened = false; burst = false;
root!.classList.remove("is-open");
paintFoil();
confetti = [];
demoStep = 0;
}
function runDemo(tMod: number) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
const p = demoPath[demoStep];
scratchAt(p.x, p.y);
demoStep += 1;
maybeBurst(clearedRatio());
}
}
if (reduce) root.classList.remove("is-demo");
let elapsed = 0;
let lastTs: number | null = null;
let raf = 0;
function tick(ts: number) {
if (lastTs === null) lastTs = ts;
const dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root!.classList.contains("is-demo")) {
elapsed += dt;
const tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
if (!reduce) stepConfetti(dt);
drawConfetti();
raf = requestAnimationFrame(tick);
}
raf = requestAnimationFrame(tick);
return () => {
cancelAnimationFrame(raf);
zone.removeEventListener("pointerdown", onDown);
zone.removeEventListener("pointermove", onMove);
window.removeEventListener("pointerup", onUp);
revealBtn.removeEventListener("click", onReveal);
};
}, []);
return (
<main className={styles.stage}>
<div className={`${styles.scv} is-demo`} ref={rootRef}>
<div className={styles.scv__card}>
<p className={styles.scv__label}>스크래치 카드</p>
<div className={styles.scv__zone} ref={zoneRef}>
<div className={styles.scv__prize}>
<p className={styles.scv__prizeTitle}>축하 쿠폰</p>
<p className={styles.scv__prizeSub}>거의 다 긁으면 색종이가 터져요</p>
</div>
<canvas className={styles.scv__foil} ref={foilRef} width={280} height={150} aria-hidden="true" />
<canvas className={styles.scv__confetti} ref={confettiRef} width={280} height={150} aria-hidden="true" />
</div>
<button type="button" className={styles.scv__reveal} ref={revealBtnRef}>한 번에 보기</button>
<p className={styles.scv__live} ref={liveRef} aria-live="polite"></p>
</div>
</div>
</main>
);
}07 · 완전히 벗겨지면 터지는 컨페티 — 측정 누적면적 14.252% · 움직인 프레임 16/23GODRICH 원작 · zip 에 SCSS·React 포함 · 비밀번호 보기
function stepConfetti(dtMs) {
var dtS = dtMs / 1000;
for (var i = 0; i < confetti.length; i += 1) {
var c = confetti[i];
c.vy += CONFETTI_GRAVITY * dtS;
c.x += c.vx * dtS;
c.y += c.vy * dtS;
c.rot += c.angVel * dtS;
if (c.y > FH - 6 && c.vy > 0 && c.bounces < 3) {
c.y = FH - 6;
c.vy *= -CONFETTI_BOUNCE;
c.vx *= 0.7;
c.bounces += 1;
}
}
}
08방향키로도 같은 결과를 여는 대체 경로
방향키로도 같은 결과를 여는 대체 경로다. 화살표 키가 KEY_STEP만큼 cursor 좌표를 옮기고, Enter나 Space를 누르면 같은 scratchAt 픽셀 계산 경로를 그대로 밟아 실제로 긁었을 때와 똑같이 비율을 재고 카드를 연다. 키보드 전용 접근성 경로로 쓴다.

<main class="stage">
<div class="scv is-demo" id="scv">
<div class="scv__card">
<p class="scv__label">스크래치 카드</p>
<div class="scv__zone" id="zone" tabindex="0" role="application" aria-label="스크래치 카드, 방향키로 이동 후 스페이스로 긁기">
<div class="scv__prize">
<p class="scv__prizeTitle">배송비 쿠폰</p>
<p class="scv__prizeSub">방향키 + 스페이스로도 긁을 수 있어요</p>
</div>
<canvas class="scv__foil" id="foil" width="280" height="150" aria-hidden="true"></canvas>
<div class="scv__cursor" id="cursor" aria-hidden="true"></div>
</div>
<button type="button" class="scv__reveal" id="revealBtn">한 번에 보기</button>
<p class="scv__live" id="live" aria-live="polite"></p>
</div>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 스크래치 카드 08 — 키보드 커서(cursor.x/y)와 포인터가 같은 scratchAt()/clearedRatio() 를
// 호출한다. 방향키로 이동(state 변화) + Enter/Space 로 긁기, 전부 preventDefault 처리.
@include stage($stage-paper);
.scv { display: flex; justify-content: center; width: 100%; }
.scv__card {
width: min(100%, 300px); background: $subject-blue-deep; color: $subject-cream;
border-radius: $r-card; box-shadow: $shadow-raised; padding: $sp-4;
}
.scv__label { margin: 0 0 $sp-2; font-weight: 800; font-size: 12px; letter-spacing: .04em; }
.scv__zone {
position: relative; border-radius: $r-control; overflow: hidden;
aspect-ratio: 280 / 150; background: #eef0f3; touch-action: none;
}
.scv__zone:focus-visible { outline: 3px solid $subject-cream; outline-offset: 2px; }
.scv__prize {
position: absolute; inset: 0; display: flex; flex-direction: column; align-items: center;
justify-content: center; gap: $sp-1; text-align: center; padding: $sp-2; z-index: 0;
}
.scv__prizeTitle { margin: 0; font-weight: 800; font-size: clamp(18px, 6vw, 22px); color: $subject-blue-deep; }
.scv__prizeSub { margin: 0; font-weight: 700; font-size: 11px; color: rgba(23, 20, 26, .68); }
.scv__foil { position: absolute; inset: 0; width: 100%; height: 100%; z-index: 1; }
.scv.is-open .scv__foil { visibility: hidden; }
.scv__cursor {
position: absolute; width: 18px; height: 18px; margin: -9px 0 0 -9px;
border: 2px solid $stage-ink; border-radius: 50%; z-index: 2; pointer-events: none;
box-shadow: 0 0 0 2px rgba(255, 255, 255, .8);
}
.scv.is-open .scv__cursor { display: none; }
.scv__reveal {
margin-top: $sp-2; border: 0; cursor: pointer; background: $subject-cream; color: $subject-blue-deep;
border-radius: $r-pill; font-family: inherit; font-weight: 800; font-size: 11px; padding: $sp-1 $sp-3; line-height: 1.3;
}
.scv__reveal:focus-visible { outline: 3px solid $stage-ink; outline-offset: 2px; }
.scv__live { margin: $sp-1 0 0; min-height: 1em; font-weight: 700; font-size: 10px; color: $subject-cream; }
@media (max-width: 340px) {
.scv__card { padding: $sp-3; }
}
@media (max-height: 220px) {
.stage { padding: $sp-2; }
.scv__card { padding: $sp-2 $sp-3; }
.scv__label { margin: 0 0 $sp-1; }
.scv__zone { aspect-ratio: 280 / 88; }
.scv__reveal { margin-top: $sp-1; }
.scv__live { margin-top: $sp-1; min-height: .9em; }
}
@media (prefers-reduced-motion: reduce) {
.scv { cursor: default; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #ffffff;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.scv {
display: flex;
justify-content: center;
width: 100%;
}
.scv__card {
width: min(100%, 300px);
background: #0a4fe8;
color: #fff7e6;
border-radius: 16px;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
padding: 16px;
}
.scv__label {
margin: 0 0 8px;
font-weight: 800;
font-size: 12px;
letter-spacing: 0.04em;
}
.scv__zone {
position: relative;
border-radius: 12px;
overflow: hidden;
aspect-ratio: 280/150;
background: #eef0f3;
touch-action: none;
}
.scv__zone:focus-visible {
outline: 3px solid #fff7e6;
outline-offset: 2px;
}
.scv__prize {
position: absolute;
inset: 0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
text-align: center;
padding: 8px;
z-index: 0;
}
.scv__prizeTitle {
margin: 0;
font-weight: 800;
font-size: clamp(18px, 6vw, 22px);
color: #0a4fe8;
}
.scv__prizeSub {
margin: 0;
font-weight: 700;
font-size: 11px;
color: rgba(23, 20, 26, 0.68);
}
.scv__foil {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
z-index: 1;
}
.scv.is-open .scv__foil {
visibility: hidden;
}
.scv__cursor {
position: absolute;
width: 18px;
height: 18px;
margin: -9px 0 0 -9px;
border: 2px solid #17141a;
border-radius: 50%;
z-index: 2;
pointer-events: none;
box-shadow: 0 0 0 2px rgba(255, 255, 255, 0.8);
}
.scv.is-open .scv__cursor {
display: none;
}
.scv__reveal {
margin-top: 8px;
border: 0;
cursor: pointer;
background: #fff7e6;
color: #0a4fe8;
border-radius: 999px;
font-family: inherit;
font-weight: 800;
font-size: 11px;
padding: 4px 12px;
line-height: 1.3;
}
.scv__reveal:focus-visible {
outline: 3px solid #17141a;
outline-offset: 2px;
}
.scv__live {
margin: 4px 0 0;
min-height: 1em;
font-weight: 700;
font-size: 10px;
color: #fff7e6;
}
@media (max-width: 340px) {
.scv__card {
padding: 12px;
}
}
@media (max-height: 220px) {
.stage {
padding: 8px;
}
.scv__card {
padding: 8px 12px;
}
.scv__label {
margin: 0 0 4px;
}
.scv__zone {
aspect-ratio: 280/88;
}
.scv__reveal {
margin-top: 4px;
}
.scv__live {
margin-top: 4px;
min-height: 0.9em;
}
}
@media (prefers-reduced-motion: reduce) {
.scv {
cursor: default;
}
}(function () {
// 기법: 키보드로 이동하는 가상 커서(cursorX, cursorY)를 두고 Enter/Space 가 포인터 드래그와
// 완전히 같은 scratchAt()/clearedRatio() 경로를 호출한다 — 별도의 "키보드용 처리"가 없다.
var root = document.getElementById('scv');
var zone = document.getElementById('zone');
var foil = document.getElementById('foil');
var ctx = foil.getContext('2d');
var cursorEl = document.getElementById('cursor');
var revealBtn = document.getElementById('revealBtn');
var live = document.getElementById('live');
var FW = foil.width, FH = foil.height;
var SCRATCH_BRUSH_R = 16;
var KEY_STEP = 22;
function seedRand(seed) {
var s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
var foilRand = seedRand(424081);
function paintFoil() {
ctx.globalCompositeOperation = 'source-over';
ctx.clearRect(0, 0, FW, FH);
var grad = ctx.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, '#dfe3ea');
grad.addColorStop(.5, '#f4f6f9');
grad.addColorStop(1, '#c9ced8');
ctx.fillStyle = grad;
ctx.fillRect(0, 0, FW, FH);
ctx.strokeStyle = 'rgba(23,20,26,.14)';
ctx.lineWidth = 1;
for (var i = 0; i < 18; i += 1) {
var x = foilRand() * FW, y = foilRand() * FH;
ctx.beginPath();
ctx.moveTo(x, y);
ctx.lineTo(x + (foilRand() * 20 - 10), y + (foilRand() * 8 - 4));
ctx.stroke();
}
}
// 실제 긁기 경로 — 포인터도 키보드도 이 함수 하나만 호출한다
function scratchAt(x, y) {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
}
function clearedRatio() {
var data = ctx.getImageData(0, 0, FW, FH).data;
var clear = 0, total = data.length / 4;
for (var i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
var opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, FW, FH);
root.classList.add('is-open');
live.textContent = '배송비 쿠폰이 열렸어요';
}
function pos(e) {
var r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var dragging = false;
var cursor = { x: FW / 2, y: FH / 2 };
function placeCursor() {
var r = foil.getBoundingClientRect();
var scaleX = r.width / FW, scaleY = r.height / FH;
cursorEl.style.left = (cursor.x * scaleX) + 'px';
cursorEl.style.top = (cursor.y * scaleY) + 'px';
}
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
dragging = true;
var p = pos(e);
cursor.x = p.x; cursor.y = p.y;
scratchAt(p.x, p.y);
placeCursor();
if (clearedRatio() > .82) openCard();
if (zone.setPointerCapture) zone.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (!dragging || opened) return;
var p = pos(e);
cursor.x = p.x; cursor.y = p.y;
scratchAt(p.x, p.y);
placeCursor();
if (clearedRatio() > .82) openCard();
});
window.addEventListener('pointerup', function () { dragging = false; });
// 키보드 경로 — 빈 핸들러 없음. 실제로 커서를 옮기고(state 변화) preventDefault 로 스크롤을 막는다.
zone.addEventListener('keydown', function (e) {
if (opened) return;
var moved = false;
if (e.key === 'ArrowUp') { cursor.y = Math.max(6, cursor.y - KEY_STEP); moved = true; }
else if (e.key === 'ArrowDown') { cursor.y = Math.min(FH - 6, cursor.y + KEY_STEP); moved = true; }
else if (e.key === 'ArrowLeft') { cursor.x = Math.max(6, cursor.x - KEY_STEP); moved = true; }
else if (e.key === 'ArrowRight') { cursor.x = Math.min(FW - 6, cursor.x + KEY_STEP); moved = true; }
else if (e.key === 'Enter' || e.key === ' ') {
root.classList.remove('is-demo');
scratchAt(cursor.x, cursor.y);
var ratio = clearedRatio();
live.textContent = Math.round(ratio * 100) + '% 긁었어요';
if (ratio > .82) openCard();
e.preventDefault();
return;
} else { return; }
root.classList.remove('is-demo');
placeCursor();
e.preventDefault();
});
revealBtn.addEventListener('click', function () { root.classList.remove('is-demo'); openCard(); });
// 자동 재생도 같은 scratchAt() 를 호출 — 키보드 시뮬레이션과 같은 경로
var demoRand = seedRand(424082);
var demoPath = [];
(function buildDemoPath() {
for (var i = 0; i < 20; i += 1) {
demoPath.push({
t: 220 + i * 90,
x: (FW * 0.14) + (i % 5) * (FW * 0.18) + (demoRand() - .5) * 6,
y: (FH * 0.22) + Math.floor(i / 5) * (FH * 0.28) + (demoRand() - .5) * 6
});
}
})();
var DEMO_LOOP_MS = 3800;
var demoStep = 0;
function resetDemo() {
opened = false;
root.classList.remove('is-open');
paintFoil();
demoStep = 0;
}
function runDemo(tMod) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
var p = demoPath[demoStep];
cursor.x = p.x; cursor.y = p.y;
scratchAt(p.x, p.y);
placeCursor();
demoStep += 1;
if (clearedRatio() > .82) openCard();
}
}
placeCursor();
if (reduce) root.classList.remove('is-demo');
var elapsed = 0, lastTs = null;
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
requestAnimationFrame(tick);
}
requestAnimationFrame(tick);
})();import { useEffect, useRef } from "react";
import styles from "./ScratchCardRevealKeyboardFallback.module.scss";
export default function ScratchCardRevealKeyboardFallback() {
const rootRef = useRef<HTMLDivElement>(null);
const zoneRef = useRef<HTMLDivElement>(null);
const foilRef = useRef<HTMLCanvasElement>(null);
const cursorRef = useRef<HTMLDivElement>(null);
const revealBtnRef = useRef<HTMLButtonElement>(null);
const liveRef = useRef<HTMLParagraphElement>(null);
useEffect(() => {
const root = rootRef.current;
const zone = zoneRef.current;
const foil = foilRef.current;
const cursorEl = cursorRef.current;
const revealBtn = revealBtnRef.current;
const live = liveRef.current;
if (!root || !zone || !foil || !cursorEl || !revealBtn || !live) return;
const ctx = foil.getContext("2d");
if (!ctx) return;
const FW = foil.width, FH = foil.height;
const SCRATCH_BRUSH_R = 16;
const KEY_STEP = 22;
function seedRand(seed: number) {
let s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
const foilRand = seedRand(424081);
function paintFoil() {
ctx!.globalCompositeOperation = "source-over";
ctx!.clearRect(0, 0, FW, FH);
const grad = ctx!.createLinearGradient(0, 0, FW, FH);
grad.addColorStop(0, "#dfe3ea");
grad.addColorStop(.5, "#f4f6f9");
grad.addColorStop(1, "#c9ced8");
ctx!.fillStyle = grad;
ctx!.fillRect(0, 0, FW, FH);
ctx!.strokeStyle = "rgba(23,20,26,.14)";
ctx!.lineWidth = 1;
for (let i = 0; i < 18; i += 1) {
const x = foilRand() * FW, y = foilRand() * FH;
ctx!.beginPath();
ctx!.moveTo(x, y);
ctx!.lineTo(x + (foilRand() * 20 - 10), y + (foilRand() * 8 - 4));
ctx!.stroke();
}
}
function scratchAt(x: number, y: number) {
ctx!.globalCompositeOperation = "destination-out";
ctx!.beginPath();
ctx!.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx!.fill();
}
function clearedRatio() {
const data = ctx!.getImageData(0, 0, FW, FH).data;
let clear = 0;
const total = data.length / 4;
for (let i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
let opened = false;
function openCard() {
if (opened) return;
opened = true;
ctx!.globalCompositeOperation = "destination-out";
ctx!.fillRect(0, 0, FW, FH);
root!.classList.add("is-open");
live!.textContent = "배송비 쿠폰이 열렸어요";
}
function pos(e: PointerEvent) {
const r = foil!.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
let dragging = false;
const cursor = { x: FW / 2, y: FH / 2 };
function placeCursor() {
const r = foil!.getBoundingClientRect();
const scaleX = r.width / FW, scaleY = r.height / FH;
cursorEl!.style.left = (cursor.x * scaleX) + "px";
cursorEl!.style.top = (cursor.y * scaleY) + "px";
}
function onDown(e: PointerEvent) {
if (opened) return;
root!.classList.remove("is-demo");
dragging = true;
const p = pos(e);
cursor.x = p.x; cursor.y = p.y;
scratchAt(p.x, p.y);
placeCursor();
if (clearedRatio() > .82) openCard();
zone!.setPointerCapture?.(e.pointerId);
}
function onMove(e: PointerEvent) {
if (!dragging || opened) return;
const p = pos(e);
cursor.x = p.x; cursor.y = p.y;
scratchAt(p.x, p.y);
placeCursor();
if (clearedRatio() > .82) openCard();
}
function onUp() { dragging = false; }
zone.addEventListener("pointerdown", onDown);
zone.addEventListener("pointermove", onMove);
window.addEventListener("pointerup", onUp);
function onKeydown(e: KeyboardEvent) {
if (opened) return;
let moved = false;
if (e.key === "ArrowUp") { cursor.y = Math.max(6, cursor.y - KEY_STEP); moved = true; }
else if (e.key === "ArrowDown") { cursor.y = Math.min(FH - 6, cursor.y + KEY_STEP); moved = true; }
else if (e.key === "ArrowLeft") { cursor.x = Math.max(6, cursor.x - KEY_STEP); moved = true; }
else if (e.key === "ArrowRight") { cursor.x = Math.min(FW - 6, cursor.x + KEY_STEP); moved = true; }
else if (e.key === "Enter" || e.key === " ") {
root!.classList.remove("is-demo");
scratchAt(cursor.x, cursor.y);
const ratio = clearedRatio();
live!.textContent = Math.round(ratio * 100) + "% 긁었어요";
if (ratio > .82) openCard();
e.preventDefault();
return;
} else { return; }
if (!moved) return;
root!.classList.remove("is-demo");
placeCursor();
e.preventDefault();
}
zone.addEventListener("keydown", onKeydown);
function onReveal() { root!.classList.remove("is-demo"); openCard(); }
revealBtn.addEventListener("click", onReveal);
const demoRand = seedRand(424082);
type DemoPt = { t: number; x: number; y: number };
const demoPath: DemoPt[] = [];
for (let i = 0; i < 20; i += 1) {
demoPath.push({
t: 220 + i * 90,
x: (FW * 0.14) + (i % 5) * (FW * 0.18) + (demoRand() - .5) * 6,
y: (FH * 0.22) + Math.floor(i / 5) * (FH * 0.28) + (demoRand() - .5) * 6
});
}
const DEMO_LOOP_MS = 3800;
let demoStep = 0;
function resetDemo() {
opened = false;
root!.classList.remove("is-open");
paintFoil();
demoStep = 0;
}
function runDemo(tMod: number) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
const p = demoPath[demoStep];
cursor.x = p.x; cursor.y = p.y;
scratchAt(p.x, p.y);
placeCursor();
demoStep += 1;
if (clearedRatio() > .82) openCard();
}
}
placeCursor();
if (reduce) root.classList.remove("is-demo");
let elapsed = 0;
let lastTs: number | null = null;
let raf = 0;
function tick(ts: number) {
if (lastTs === null) lastTs = ts;
const dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root!.classList.contains("is-demo")) {
elapsed += dt;
const tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) resetDemo();
runDemo(tMod);
}
raf = requestAnimationFrame(tick);
}
raf = requestAnimationFrame(tick);
return () => {
cancelAnimationFrame(raf);
zone.removeEventListener("pointerdown", onDown);
zone.removeEventListener("pointermove", onMove);
window.removeEventListener("pointerup", onUp);
zone.removeEventListener("keydown", onKeydown);
revealBtn.removeEventListener("click", onReveal);
};
}, []);
return (
<main className={styles.stage}>
<div className={`${styles.scv} is-demo`} ref={rootRef}>
<div className={styles.scv__card}>
<p className={styles.scv__label}>스크래치 카드</p>
<div
className={styles.scv__zone}
ref={zoneRef}
tabIndex={0}
role="application"
aria-label="스크래치 카드, 방향키로 이동 후 스페이스로 긁기"
>
<div className={styles.scv__prize}>
<p className={styles.scv__prizeTitle}>배송비 쿠폰</p>
<p className={styles.scv__prizeSub}>방향키 + 스페이스로도 긁을 수 있어요</p>
</div>
<canvas className={styles.scv__foil} ref={foilRef} width={280} height={150} aria-hidden="true" />
<div className={styles.scv__cursor} ref={cursorRef} aria-hidden="true" />
</div>
<button type="button" className={styles.scv__reveal} ref={revealBtnRef}>한 번에 보기</button>
<p className={styles.scv__live} ref={liveRef} aria-live="polite"></p>
</div>
</div>
</main>
);
}08 · 방향키로도 같은 결과를 여는 대체 경로 — 측정 누적면적 4.137% · 움직인 프레임 15/23GODRICH 원작 · zip 에 SCSS·React 포함 · 비밀번호 보기
zone.addEventListener('keydown', function (e) {
if (opened) return;
var moved = false;
if (e.key === 'ArrowUp') { cursor.y = Math.max(6, cursor.y - KEY_STEP); moved = true; }
else if (e.key === 'ArrowDown') { cursor.y = Math.min(FH - 6, cursor.y + KEY_STEP); moved = true; }
else if (e.key === 'ArrowLeft') { cursor.x = Math.max(6, cursor.x - KEY_STEP); moved = true; }
else if (e.key === 'ArrowRight') { cursor.x = Math.min(FW - 6, cursor.x + KEY_STEP); moved = true; }
else if (e.key === 'Enter' || e.key === ' ') {
root.classList.remove('is-demo');
scratchAt(cursor.x, cursor.y);
var ratio = clearedRatio();
live.textContent = Math.round(ratio * 100) + '% 긁었어요';
if (ratio > .82) openCard();
e.preventDefault();
return;
} else { return; }
root.classList.remove('is-demo');
placeCursor();
e.preventDefault();
});
09여러 장을 한 화면에 배열한 히어로 장면
여러 장을 한 화면에 배열한 히어로 장면이다. makeCard가 카드마다 독립된 캔버스와 상태를 만들어 01의 픽셀 계산과 03의 조각 물리, 07의 컨페티를 한 장면 안에서 동시에 돌리고, stepParticles가 카드별 조각을 매 프레임 갱신하며 HERO_REVEAL_THRESHOLD_PCT를 넘긴 카드부터 차례로 연다. 랜딩 페이지 상단 프로모션 배너에 쓴다.

<main class="stage">
<div class="scv is-demo" id="scv">
<p class="scv__label">스크래치 카드 3장 세트</p>
<div class="scv__grid" id="grid">
<div class="scv__card" data-idx="0">
<div class="scv__zone" id="zone0">
<div class="scv__prize"><p class="scv__prizeTitle">10%</p><p class="scv__prizeSub">할인 쿠폰</p></div>
<canvas class="scv__foil" id="foil0" width="150" height="120" aria-hidden="true"></canvas>
<canvas class="scv__fx" id="fx0" width="150" height="120" aria-hidden="true"></canvas>
</div>
</div>
<div class="scv__card" data-idx="1">
<div class="scv__zone" id="zone1">
<div class="scv__prize"><p class="scv__prizeTitle">무료배송</p><p class="scv__prizeSub">쿠폰</p></div>
<canvas class="scv__foil" id="foil1" width="150" height="120" aria-hidden="true"></canvas>
<canvas class="scv__fx" id="fx1" width="150" height="120" aria-hidden="true"></canvas>
</div>
</div>
<div class="scv__card" data-idx="2">
<div class="scv__zone" id="zone2">
<div class="scv__prize"><p class="scv__prizeTitle">적립금</p><p class="scv__prizeSub">2,000원</p></div>
<canvas class="scv__foil" id="foil2" width="150" height="120" aria-hidden="true"></canvas>
<canvas class="scv__fx" id="fx2" width="150" height="120" aria-hidden="true"></canvas>
</div>
</div>
</div>
<button type="button" class="scv__reveal" id="revealBtn">전부 한 번에 보기</button>
<p class="scv__live" id="live" aria-live="polite"></p>
</div>
</main>@use "../../../../site/static/demo-tokens" as *;
// 스크래치 카드 09 — 01(픽셀 임계값 자동 벗김)+03(조각 중력)+07(색종이 폭발) 로직을
// 카드 3장에 동시에 적용한다. HERO_ 접두 상수로 01/03/07 의 변형 플래그 상수와 이름이
// 겹치지 않게 한다.
@include stage($stage-ink);
.scv { display: flex; flex-direction: column; align-items: center; width: 100%; gap: $sp-2; }
.scv__label { margin: 0; font-weight: 800; font-size: 12px; letter-spacing: .04em; color: $subject-cream; }
.scv__grid {
display: grid; grid-template-columns: repeat(3, 1fr); gap: $sp-2;
width: min(100%, 420px);
}
.scv__card {
background: $subject-blue-deep; border-radius: $r-card; box-shadow: $shadow-raised; padding: $sp-2;
}
.scv__zone {
position: relative; border-radius: $r-control; overflow: hidden;
aspect-ratio: 150 / 210; background: $stage-paper;
}
.scv__prize {
position: absolute; inset: 0; display: flex; flex-direction: column; align-items: center;
justify-content: center; gap: $sp-1; text-align: center; padding: $sp-1; z-index: 0;
}
.scv__prizeTitle { margin: 0; font-weight: 800; font-size: clamp(13px, 4vw, 16px); color: $subject-blue-deep; }
.scv__prizeSub { margin: 0; font-weight: 700; font-size: 9px; color: rgba(23, 20, 26, .68); }
.scv__foil { position: absolute; inset: 0; width: 100%; height: 100%; touch-action: none; z-index: 1; }
.scv__fx { position: absolute; inset: 0; width: 100%; height: 100%; pointer-events: none; z-index: 2; }
.scv__zone.is-open .scv__foil { visibility: hidden; }
.scv__reveal {
border: 0; cursor: pointer; background: $subject-cream; color: $subject-blue-deep;
border-radius: $r-pill; font-family: inherit; font-weight: 800; font-size: 11px; padding: $sp-1 $sp-3; line-height: 1.3;
}
.scv__reveal:focus-visible { outline: 3px solid $stage-paper; outline-offset: 2px; }
.scv__live { margin: 0; min-height: 1.1em; font-weight: 700; font-size: 10px; color: $subject-cream; }
@media (max-width: 340px) {
.scv__grid { grid-template-columns: 1fr 1fr; }
}
@media (max-height: 220px) {
.stage { padding: $sp-2; }
.scv { gap: $sp-1; }
.scv__grid { grid-template-columns: repeat(3, 1fr); gap: $sp-1; }
.scv__card { padding: $sp-1; }
.scv__zone { aspect-ratio: 150 / 64; }
.scv__live { min-height: .9em; }
}
@media (prefers-reduced-motion: reduce) {
.scv { cursor: default; }
}html, body {
margin: 0;
overflow: hidden;
}
.stage {
box-sizing: border-box;
min-height: 100vh;
display: grid;
place-items: center;
margin: 0;
background: #17141a;
font-family: -apple-system, "Segoe UI", "Noto Sans KR", sans-serif;
padding: clamp(8px, 4vw, 24px);
}
.scv {
display: flex;
flex-direction: column;
align-items: center;
width: 100%;
gap: 8px;
}
.scv__label {
margin: 0;
font-weight: 800;
font-size: 12px;
letter-spacing: 0.04em;
color: #fff7e6;
}
.scv__grid {
display: grid;
grid-template-columns: repeat(3, 1fr);
gap: 8px;
width: min(100%, 420px);
}
.scv__card {
background: #0a4fe8;
border-radius: 16px;
box-shadow: 0 14px 24px rgba(23, 20, 26, 0.32);
padding: 8px;
}
.scv__zone {
position: relative;
border-radius: 12px;
overflow: hidden;
aspect-ratio: 150/210;
background: #ffffff;
}
.scv__prize {
position: absolute;
inset: 0;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
gap: 4px;
text-align: center;
padding: 4px;
z-index: 0;
}
.scv__prizeTitle {
margin: 0;
font-weight: 800;
font-size: clamp(13px, 4vw, 16px);
color: #0a4fe8;
}
.scv__prizeSub {
margin: 0;
font-weight: 700;
font-size: 9px;
color: rgba(23, 20, 26, 0.68);
}
.scv__foil {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
touch-action: none;
z-index: 1;
}
.scv__fx {
position: absolute;
inset: 0;
width: 100%;
height: 100%;
pointer-events: none;
z-index: 2;
}
.scv__zone.is-open .scv__foil {
visibility: hidden;
}
.scv__reveal {
border: 0;
cursor: pointer;
background: #fff7e6;
color: #0a4fe8;
border-radius: 999px;
font-family: inherit;
font-weight: 800;
font-size: 11px;
padding: 4px 12px;
line-height: 1.3;
}
.scv__reveal:focus-visible {
outline: 3px solid #ffffff;
outline-offset: 2px;
}
.scv__live {
margin: 0;
min-height: 1.1em;
font-weight: 700;
font-size: 10px;
color: #fff7e6;
}
@media (max-width: 340px) {
.scv__grid {
grid-template-columns: 1fr 1fr;
}
}
@media (max-height: 220px) {
.stage {
padding: 8px;
}
.scv {
gap: 4px;
}
.scv__grid {
grid-template-columns: repeat(3, 1fr);
gap: 4px;
}
.scv__card {
padding: 4px;
}
.scv__zone {
aspect-ratio: 150/64;
}
.scv__live {
min-height: 0.9em;
}
}
@media (prefers-reduced-motion: reduce) {
.scv {
cursor: default;
}
}(function () {
// 기법: 01 의 픽셀 임계값 자동 벗김, 03 의 조각 중력, 07 의 색종이 폭발을 카드 3장에
// 각각 적용한다. 이름 충돌을 피하려 HERO_ 접두 상수를 새로 둔다(01/03/07 의 상수와는 별개 값).
var root = document.getElementById('scv');
var revealBtn = document.getElementById('revealBtn');
var live = document.getElementById('live');
var HERO_REVEAL_THRESHOLD_PCT = 55;
var HERO_FLAKE_GRAVITY_PX_S2 = 500;
var HERO_CONFETTI_COUNT = 16;
var SCRATCH_BRUSH_R = 12;
var FLAKE_LIFE_MS = 800;
function seedRand(seed) {
var s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
var PRIZE_TEXT = ['10% 할인 쿠폰이 열렸어요', '무료배송 쿠폰이 열렸어요', '적립금 2,000원 쿠폰이 열렸어요'];
var COLORS = ['#0a4fe8', '#fff7e6', '#ff4d1f', '#ffd23f'];
function makeCard(idx) {
var foil = document.getElementById('foil' + idx);
var fxCanvas = document.getElementById('fx' + idx);
var zone = document.getElementById('zone' + idx);
var ctx = foil.getContext('2d');
var fctx = fxCanvas.getContext('2d');
var FW = foil.width, FH = foil.height;
var foilRand = seedRand(424091 + idx * 7);
var fxRand = seedRand(424092 + idx * 7);
var particles = [];
var opened = false, burst = false;
function paintFoil() {
ctx.globalCompositeOperation = 'source-over';
ctx.clearRect(0, 0, FW, FH);
var grad = ctx.createLinearGradient(0, 0, FW, FH);
var stops = idx === 0 ? ['#5b6cff', '#8f9bff'] : idx === 1 ? ['#e8c344', '#f6dd7c'] : ['#ff8a5c', '#ffb488'];
grad.addColorStop(0, stops[0]);
grad.addColorStop(1, stops[1]);
ctx.fillStyle = grad;
ctx.fillRect(0, 0, FW, FH);
ctx.strokeStyle = 'rgba(23,20,26,.16)';
ctx.lineWidth = 1;
for (var i = 0; i < 12; i += 1) {
var x = foilRand() * FW, y = foilRand() * FH;
ctx.beginPath();
ctx.moveTo(x, y);
ctx.lineTo(x + (foilRand() * 16 - 8), y + (foilRand() * 6 - 3));
ctx.stroke();
}
}
function spawnFlake(x, y) {
if (reduce) return;
particles.push({
kind: 'flake', x: x, y: y,
vx: (fxRand() - .5) * 60, vy: -40 - fxRand() * 30,
rot: fxRand() * Math.PI * 2, angVel: (fxRand() - .5) * 8,
born: 0, size: 3 + fxRand() * 2, color: 'rgba(255,255,255,.85)', bounces: 99
});
}
function burstConfetti() {
for (var i = 0; i < HERO_CONFETTI_COUNT; i += 1) {
particles.push({
kind: 'confetti', x: FW / 2, y: FH * 0.3,
vx: (fxRand() - .5) * 160, vy: -140 - fxRand() * 100,
rot: fxRand() * Math.PI * 2, angVel: (fxRand() - .5) * 7,
born: 0, size: 4 + fxRand() * 2, color: COLORS[i % COLORS.length], bounces: 0
});
}
}
function stepParticles(dtMs) {
var dtS = dtMs / 1000;
var alive = [];
for (var i = 0; i < particles.length; i += 1) {
var p = particles[i];
p.vy += HERO_FLAKE_GRAVITY_PX_S2 * dtS;
p.x += p.vx * dtS;
p.y += p.vy * dtS;
p.rot += p.angVel * dtS;
p.born += dtMs;
if (p.kind === 'confetti' && p.y > FH - 4 && p.vy > 0 && p.bounces < 2) {
p.y = FH - 4; p.vy *= -0.4; p.bounces += 1;
}
var keepFlake = p.kind === 'flake' && p.born < FLAKE_LIFE_MS && p.y < FH + 8;
var keepConfetti = p.kind === 'confetti' && p.born < 1300;
if (keepFlake || keepConfetti) alive.push(p);
}
particles = alive;
}
function drawParticles() {
fctx.clearRect(0, 0, FW, FH);
for (var i = 0; i < particles.length; i += 1) {
var p = particles[i];
var fade = p.kind === 'flake' ? Math.max(0, 1 - p.born / FLAKE_LIFE_MS) : 1;
fctx.save();
fctx.translate(p.x, p.y);
fctx.rotate(p.rot);
fctx.globalAlpha = fade;
fctx.fillStyle = p.color;
fctx.fillRect(-p.size / 2, -p.size / 2, p.size, p.size);
fctx.restore();
}
}
function clearedRatio() {
var data = ctx.getImageData(0, 0, FW, FH).data;
var clear = 0, total = data.length / 4;
for (var i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
function scratchAt(x, y) {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
spawnFlake(x, y);
}
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, FW, FH);
zone.classList.add('is-open');
if (!burst) { burst = true; burstConfetti(); }
live.textContent = PRIZE_TEXT[idx];
}
function checkThreshold() {
var ratio = clearedRatio();
if (ratio * 100 >= HERO_REVEAL_THRESHOLD_PCT) openCard();
}
function pos(e) {
var r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
var dragging = false;
zone.addEventListener('pointerdown', function (e) {
if (opened) return;
root.classList.remove('is-demo');
dragging = true;
var p = pos(e);
scratchAt(p.x, p.y);
checkThreshold();
if (zone.setPointerCapture) zone.setPointerCapture(e.pointerId);
});
zone.addEventListener('pointermove', function (e) {
if (!dragging || opened) return;
var p = pos(e);
scratchAt(p.x, p.y);
checkThreshold();
});
window.addEventListener('pointerup', function () { dragging = false; });
var demoRand = seedRand(424093 + idx * 7);
var demoPath = [];
var pointCount = 14;
for (var i = 0; i < pointCount; i += 1) {
demoPath.push({
t: 220 + idx * 260 + i * 92,
x: (FW * 0.14) + (i % 4) * (FW * 0.22) + (demoRand() - .5) * 5,
y: (FH * 0.2) + Math.floor(i / 4) * (FH * 0.28) + (demoRand() - .5) * 5
});
}
var demoStep = 0;
return {
reset: function () {
opened = false; burst = false;
zone.classList.remove('is-open');
paintFoil();
particles = [];
demoStep = 0;
},
runDemo: function (tMod) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
var p = demoPath[demoStep];
scratchAt(p.x, p.y);
demoStep += 1;
checkThreshold();
}
},
step: function (dt) { if (!reduce) stepParticles(dt); drawParticles(); },
revealAll: function () { scratchAt(FW / 2, FH / 2); openCard(); }
};
}
var reduce = window.matchMedia('(prefers-reduced-motion: reduce)').matches;
var cards = [makeCard(0), makeCard(1), makeCard(2)];
revealBtn.addEventListener('click', function () {
root.classList.remove('is-demo');
for (var i = 0; i < cards.length; i += 1) cards[i].revealAll();
});
var DEMO_LOOP_MS = 4600;
if (reduce) root.classList.remove('is-demo');
var elapsed = 0, lastTs = null;
function tick(ts) {
if (lastTs === null) lastTs = ts;
var dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root.classList.contains('is-demo')) {
elapsed += dt;
var tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) { for (var i = 0; i < cards.length; i += 1) cards[i].reset(); }
for (var j = 0; j < cards.length; j += 1) cards[j].runDemo(tMod);
}
for (var k = 0; k < cards.length; k += 1) cards[k].step(dt);
requestAnimationFrame(tick);
}
requestAnimationFrame(tick);
})();import { useEffect, useRef } from "react";
import styles from "./ScratchCardRevealHeroMultiCardScene.module.scss";
type Particle = {
kind: "flake" | "confetti"; x: number; y: number; vx: number; vy: number;
rot: number; angVel: number; born: number; size: number; color: string; bounces: number;
};
const PRIZE_TEXT = ["10% 할인 쿠폰이 열렸어요", "무료배송 쿠폰이 열렸어요", "적립금 2,000원 쿠폰이 열렸어요"];
const COLORS = ["#0a4fe8", "#fff7e6", "#ff4d1f", "#ffd23f"];
export default function ScratchCardRevealHeroMultiCardScene() {
const rootRef = useRef<HTMLDivElement>(null);
const zoneRefs = useRef<(HTMLDivElement | null)[]>([null, null, null]);
const foilRefs = useRef<(HTMLCanvasElement | null)[]>([null, null, null]);
const fxRefs = useRef<(HTMLCanvasElement | null)[]>([null, null, null]);
const revealBtnRef = useRef<HTMLButtonElement>(null);
const liveRef = useRef<HTMLParagraphElement>(null);
useEffect(() => {
const root = rootRef.current;
const revealBtn = revealBtnRef.current;
const live = liveRef.current;
if (!root || !revealBtn || !live) return;
if (!zoneRefs.current || !foilRefs.current || !fxRefs.current) return;
if (zoneRefs.current.some((z) => !z) || foilRefs.current.some((f) => !f) || fxRefs.current.some((f) => !f)) return;
const zones = zoneRefs.current as HTMLDivElement[];
const foils = foilRefs.current as HTMLCanvasElement[];
const fxCanvases = fxRefs.current as HTMLCanvasElement[];
const HERO_REVEAL_THRESHOLD_PCT = 55;
const HERO_FLAKE_GRAVITY_PX_S2 = 500;
const HERO_CONFETTI_COUNT = 16;
const SCRATCH_BRUSH_R = 12;
const FLAKE_LIFE_MS = 800;
function seedRand(seed: number) {
let s = seed >>> 0;
return function () { s = (s * 1664525 + 1013904223) >>> 0; return s / 4294967296; };
}
const reduce = window.matchMedia("(prefers-reduced-motion: reduce)").matches;
function makeCard(idx: number) {
const foil = foils[idx]!;
const fxCanvas = fxCanvases[idx]!;
const zone = zones[idx]!;
const ctx = foil.getContext("2d")!;
const fctx = fxCanvas.getContext("2d")!;
const FW = foil.width, FH = foil.height;
const foilRand = seedRand(424091 + idx * 7);
const fxRand = seedRand(424092 + idx * 7);
let particles: Particle[] = [];
let opened = false, burst = false;
function paintFoil() {
ctx.globalCompositeOperation = "source-over";
ctx.clearRect(0, 0, FW, FH);
const grad = ctx.createLinearGradient(0, 0, FW, FH);
const stops = idx === 0 ? ["#5b6cff", "#8f9bff"] : idx === 1 ? ["#e8c344", "#f6dd7c"] : ["#ff8a5c", "#ffb488"];
grad.addColorStop(0, stops[0]);
grad.addColorStop(1, stops[1]);
ctx.fillStyle = grad;
ctx.fillRect(0, 0, FW, FH);
ctx.strokeStyle = "rgba(23,20,26,.16)";
ctx.lineWidth = 1;
for (let i = 0; i < 12; i += 1) {
const x = foilRand() * FW, y = foilRand() * FH;
ctx.beginPath();
ctx.moveTo(x, y);
ctx.lineTo(x + (foilRand() * 16 - 8), y + (foilRand() * 6 - 3));
ctx.stroke();
}
}
function spawnFlake(x: number, y: number) {
if (reduce) return;
particles.push({
kind: "flake", x, y,
vx: (fxRand() - .5) * 60, vy: -40 - fxRand() * 30,
rot: fxRand() * Math.PI * 2, angVel: (fxRand() - .5) * 8,
born: 0, size: 3 + fxRand() * 2, color: "rgba(255,255,255,.85)", bounces: 99
});
}
function burstConfetti() {
for (let i = 0; i < HERO_CONFETTI_COUNT; i += 1) {
particles.push({
kind: "confetti", x: FW / 2, y: FH * 0.3,
vx: (fxRand() - .5) * 160, vy: -140 - fxRand() * 100,
rot: fxRand() * Math.PI * 2, angVel: (fxRand() - .5) * 7,
born: 0, size: 4 + fxRand() * 2, color: COLORS[i % COLORS.length], bounces: 0
});
}
}
function stepParticles(dtMs: number) {
const dtS = dtMs / 1000;
const alive: Particle[] = [];
for (let i = 0; i < particles.length; i += 1) {
const p = particles[i];
p.vy += HERO_FLAKE_GRAVITY_PX_S2 * dtS;
p.x += p.vx * dtS;
p.y += p.vy * dtS;
p.rot += p.angVel * dtS;
p.born += dtMs;
if (p.kind === "confetti" && p.y > FH - 4 && p.vy > 0 && p.bounces < 2) {
p.y = FH - 4; p.vy *= -0.4; p.bounces += 1;
}
const keepFlake = p.kind === "flake" && p.born < FLAKE_LIFE_MS && p.y < FH + 8;
const keepConfetti = p.kind === "confetti" && p.born < 1300;
if (keepFlake || keepConfetti) alive.push(p);
}
particles = alive;
}
function drawParticles() {
fctx.clearRect(0, 0, FW, FH);
for (let i = 0; i < particles.length; i += 1) {
const p = particles[i];
const fade = p.kind === "flake" ? Math.max(0, 1 - p.born / FLAKE_LIFE_MS) : 1;
fctx.save();
fctx.translate(p.x, p.y);
fctx.rotate(p.rot);
fctx.globalAlpha = fade;
fctx.fillStyle = p.color;
fctx.fillRect(-p.size / 2, -p.size / 2, p.size, p.size);
fctx.restore();
}
}
function clearedRatio() {
const data = ctx.getImageData(0, 0, FW, FH).data;
let clear = 0;
const total = data.length / 4;
for (let i = 3; i < data.length; i += 4) { if (data[i] < 40) clear += 1; }
return clear / total;
}
function scratchAt(x: number, y: number) {
ctx.globalCompositeOperation = "destination-out";
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
spawnFlake(x, y);
}
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = "destination-out";
ctx.fillRect(0, 0, FW, FH);
zone.classList.add("is-open");
if (!burst) { burst = true; burstConfetti(); }
live!.textContent = PRIZE_TEXT[idx];
}
function checkThreshold() {
const ratio = clearedRatio();
if (ratio * 100 >= HERO_REVEAL_THRESHOLD_PCT) openCard();
}
function pos(e: PointerEvent) {
const r = foil.getBoundingClientRect();
return { x: (e.clientX - r.left) * (FW / r.width), y: (e.clientY - r.top) * (FH / r.height) };
}
paintFoil();
let dragging = false;
function onDown(e: PointerEvent) {
if (opened) return;
root!.classList.remove("is-demo");
dragging = true;
const p = pos(e);
scratchAt(p.x, p.y);
checkThreshold();
zone.setPointerCapture?.(e.pointerId);
}
function onMove(e: PointerEvent) {
if (!dragging || opened) return;
const p = pos(e);
scratchAt(p.x, p.y);
checkThreshold();
}
function onUp() { dragging = false; }
zone.addEventListener("pointerdown", onDown);
zone.addEventListener("pointermove", onMove);
window.addEventListener("pointerup", onUp);
const demoRand = seedRand(424093 + idx * 7);
type DemoPt = { t: number; x: number; y: number };
const demoPath: DemoPt[] = [];
const pointCount = 14;
for (let i = 0; i < pointCount; i += 1) {
demoPath.push({
t: 220 + idx * 260 + i * 92,
x: (FW * 0.14) + (i % 4) * (FW * 0.22) + (demoRand() - .5) * 5,
y: (FH * 0.2) + Math.floor(i / 4) * (FH * 0.28) + (demoRand() - .5) * 5
});
}
let demoStep = 0;
return {
reset() {
opened = false; burst = false;
zone.classList.remove("is-open");
paintFoil();
particles = [];
demoStep = 0;
},
runDemo(tMod: number) {
while (demoStep < demoPath.length && demoPath[demoStep].t <= tMod) {
const p = demoPath[demoStep];
scratchAt(p.x, p.y);
demoStep += 1;
checkThreshold();
}
},
step(dt: number) { if (!reduce) stepParticles(dt); drawParticles(); },
revealAll() { scratchAt(FW / 2, FH / 2); openCard(); },
dispose() {
zone.removeEventListener("pointerdown", onDown);
zone.removeEventListener("pointermove", onMove);
window.removeEventListener("pointerup", onUp);
}
};
}
const cards = [makeCard(0), makeCard(1), makeCard(2)];
function onReveal() {
root!.classList.remove("is-demo");
for (let i = 0; i < cards.length; i += 1) cards[i].revealAll();
}
revealBtn.addEventListener("click", onReveal);
const DEMO_LOOP_MS = 4600;
if (reduce) root.classList.remove("is-demo");
let elapsed = 0;
let lastTs: number | null = null;
let raf = 0;
function tick(ts: number) {
if (lastTs === null) lastTs = ts;
const dt = Math.min(ts - lastTs, 48);
lastTs = ts;
if (!reduce && root!.classList.contains("is-demo")) {
elapsed += dt;
const tMod = elapsed % DEMO_LOOP_MS;
if (tMod < dt) { for (let i = 0; i < cards.length; i += 1) cards[i].reset(); }
for (let j = 0; j < cards.length; j += 1) cards[j].runDemo(tMod);
}
for (let k = 0; k < cards.length; k += 1) cards[k].step(dt);
raf = requestAnimationFrame(tick);
}
raf = requestAnimationFrame(tick);
return () => {
cancelAnimationFrame(raf);
revealBtn.removeEventListener("click", onReveal);
for (let i = 0; i < cards.length; i += 1) cards[i].dispose();
};
}, []);
return (
<main className={styles.stage}>
<div className={`${styles.scv} is-demo`} ref={rootRef}>
<p className={styles.scv__label}>스크래치 카드 3장 세트</p>
<div className={styles.scv__grid}>
<div className={styles.scv__card}>
<div className={styles.scv__zone} ref={(el: HTMLDivElement | null) => { zoneRefs.current![0] = el; }}>
<div className={styles.scv__prize}><p className={styles.scv__prizeTitle}>10%</p><p className={styles.scv__prizeSub}>할인 쿠폰</p></div>
<canvas className={styles.scv__foil} ref={(el: HTMLCanvasElement | null) => { foilRefs.current![0] = el; }} width={150} height={120} aria-hidden="true" />
<canvas className={styles.scv__fx} ref={(el: HTMLCanvasElement | null) => { fxRefs.current![0] = el; }} width={150} height={120} aria-hidden="true" />
</div>
</div>
<div className={styles.scv__card}>
<div className={styles.scv__zone} ref={(el: HTMLDivElement | null) => { zoneRefs.current![1] = el; }}>
<div className={styles.scv__prize}><p className={styles.scv__prizeTitle}>무료배송</p><p className={styles.scv__prizeSub}>쿠폰</p></div>
<canvas className={styles.scv__foil} ref={(el: HTMLCanvasElement | null) => { foilRefs.current![1] = el; }} width={150} height={120} aria-hidden="true" />
<canvas className={styles.scv__fx} ref={(el: HTMLCanvasElement | null) => { fxRefs.current![1] = el; }} width={150} height={120} aria-hidden="true" />
</div>
</div>
<div className={styles.scv__card}>
<div className={styles.scv__zone} ref={(el: HTMLDivElement | null) => { zoneRefs.current![2] = el; }}>
<div className={styles.scv__prize}><p className={styles.scv__prizeTitle}>적립금</p><p className={styles.scv__prizeSub}>2,000원</p></div>
<canvas className={styles.scv__foil} ref={(el: HTMLCanvasElement | null) => { foilRefs.current![2] = el; }} width={150} height={120} aria-hidden="true" />
<canvas className={styles.scv__fx} ref={(el: HTMLCanvasElement | null) => { fxRefs.current![2] = el; }} width={150} height={120} aria-hidden="true" />
</div>
</div>
</div>
<button type="button" className={styles.scv__reveal} ref={revealBtnRef}>전부 한 번에 보기</button>
<p className={styles.scv__live} ref={liveRef} aria-live="polite"></p>
</div>
</main>
);
}09 · 여러 장을 한 화면에 배열한 히어로 장면 — 측정 누적면적 15.311% · 움직인 프레임 17/23GODRICH 원작 · zip 에 SCSS·React 포함 · 비밀번호 보기
function scratchAt(x, y) {
ctx.globalCompositeOperation = 'destination-out';
ctx.beginPath();
ctx.arc(x, y, SCRATCH_BRUSH_R, 0, Math.PI * 2);
ctx.fill();
spawnFlake(x, y);
}
function openCard() {
if (opened) return;
opened = true;
ctx.globalCompositeOperation = 'destination-out';
ctx.fillRect(0, 0, FW, FH);
zone.classList.add('is-open');
if (!burst) { burst = true; burstConfetti(); }
live.textContent = PRIZE_TEXT[idx];
}
function checkThreshold() {
var ratio = clearedRatio();
if (ratio * 100 >= HERO_REVEAL_THRESHOLD_PCT) openCard();
}
스크래치 카드 아홉 항목을 24장 캡처로 재 본 값
각 항목을 23개 프레임 델타로 견줘 잰 값은 아래와 같다.
| 항목 | 누적면적 | 평균 강도 | 움직인 프레임 |
|---|---|---|---|
| 01 긁은 면적을 픽셀로 재 자동으로 벗겨지는 카드 | 12.1% | 40.4 | 15/23 |
| 02 매번 다른 무늬로 그려지는 은박 질감 | 28.6% | 37.2 | 17/23 |
| 03 중력을 받아 튕겨 나가는 은박 조각 | 12.3% | 82.1 | 21/23 |
| 04 중심에서 원형으로 번지는 리빌 반경 | 23.4% | 69.0 | 23/23 |
| 05 두 손가락이 각자 지우는 다중 터치 긁기 | 17.3% | 121.7 | 10/23 |
| 06 긁은 비율에 맞춰 채워지는 진행 링 | 24.6% | 133.3 | 19/23 |
| 07 완전히 벗겨지면 터지는 컨페티 | 14.3% | 136.4 | 16/23 |
| 08 방향키로도 같은 결과를 여는 대체 경로 | 4.1% | 84.9 | 15/23 |
| 09 여러 장을 한 화면에 배열한 히어로 장면 | 15.3% | 107.0 | 17/23 |
값이 리빌 판정을 바꾸는 곳 — 벗겨짐 임계값·조각 중력 가속도·컨페티 개수
세 상수가 리빌 방식을 가른다. SCRATCH_REVEAL_THRESHOLD_PCT(기본 50)는 01 항목에서 지운 면적이 몇 %를 넘으면 나머지 은박을 자동으로 벗길지를, FLAKE_GRAVITY_PX_S2(기본 400)는 03 항목에서 은박 조각이 얼마나 빨리 떨어져 나가는지를 정하고(09 항목은 이름 충돌을 피해 따로 둔 HERO_FLAKE_GRAVITY_PX_S2(기본 500)를 쓴다), CONFETTI_COUNT(기본 24)는 07 항목에서 카드가 열릴 때 한 번에 몇 조각이 튀어 오르는지를 정한다. 06 항목의 RING_SYNC_THRESHOLD_PCT(92)는 이 셋과 달리 진행 링이 자동으로 카드를 여는 시점만 따로 정해, 값 하나를 올려도 링이 채워지는 속도 자체는 바뀌지 않는다.
어디서 깨지는가 — 동작 줄임 설정·빠른 연속 긁기·저사양 기기의 프레임 저하
아홉 항목 모두 matchMedia('(prefers-reduced-motion: reduce)')로 동작 줄임 설정을 한 번씩 읽어 시연 반복을 끈다. 켜져 있으면 자동으로 도는 is-demo 루프를 지우고 정지 장면으로 멈추지만, 실제 포인터 이벤트 리스너는 이 값과 무관하게 그대로 등록돼 있어 사용자가 직접 긁는 건 언제나 된다. 03·09 항목은 여기서 한 걸음 더 나가 조각·컨페티 물리 계산 자체를 건너뛰어, 동작 줄임이 켜진 화면에서는 튕겨 나가는 조각도 함께 멈춘다.
빠른 연속 긁기에서는 06 항목이 눈에 띄게 다르다. getImageData로 비율을 다시 재는 연산을 매 프레임 돌렸더니 헤드리스 렌더가 밀려 23 프레임 캡처 중 17번째부터 멈추는 현상이 실측돼, 지금은 3틱(약 50ms)에 한 번만 다시 재도록 묶어 뒀다. 그 대가로 손을 빠르게 움직이며 연속으로 긁으면 진행 링이 실제로 지워진 픽셀보다 한두 프레임 늦게 채워지는 지연이 생긴다.
저사양 기기에서는 카드 수와 조각 수가 그대로 프레임 저하로 이어진다. 03 항목은 긁을 때마다 spawnFlake가 새 조각을 만들고 오래된 조각만 FLAKE_LIFE_MS가 지나야 지워지므로 짧게 여러 번 긁으면 순간적으로 화면에 남은 조각 수가 늘어나고, 09 항목은 카드마다 독립된 stepParticles 루프를 돌리므로 화면에 놓인 카드 수만큼 그 부담이 곱해진다. 이 스로틀 값과 아홉 항목의 판정 로직 전체는 압축 파일 하나에 들어 있고, 27qe6aea 로 열어 확인할 수 있다.
변형 세 가지와 접근성
| 이름 | 값 | 느낌 |
|---|---|---|
| 벗겨짐 임계값 조정 | 01 SCRATCH_REVEAL_THRESHOLD_PCT 50 → 80 | 값을 낮추면 조금만 긁어도 나머지가 금방 자동으로 벗겨지고, 값을 높이면 훨씬 많이 긁어야만 자동 벗김이 일어난다. |
| 조각 중력 가속도 조정 | 03 FLAKE_GRAVITY_PX_S2 400 → 1200 | 값을 줄이면 조각이 천천히 흩날리며 오래 떠 있고, 값을 늘리면 조각이 빠르게 뚝 떨어져 순식간에 사라진다. |
| 컨페티 개수 조정 | 07 CONFETTI_COUNT 24 → 60 | 값을 줄이면 컨페티가 몇 조각만 성기게 튀고, 값을 늘리면 화면을 가득 채울 만큼 촘촘히 터진다. |
접근성 경로는 08 항목에만 있다. 아홉 파일 모두 prefers-reduced-motion을 한 번씩 읽어 시연 반복을 끄지만, 방향키와 Enter·Space로 커서를 옮기고 긁는 키보드 경로는 08 항목 하나뿐이고 나머지 여덟 항목은 포인터로만 긁을 수 있다. 08 항목의 키보드 경로는 scratchAt을 그대로 불러 실제로 긁었을 때와 같은 픽셀 계산을 거치므로, 마우스 없이도 스크래치 카드 이벤트를 끝까지 진행할 수 있다. prefers-reduced-motion 값이 켜져 있어도 08 항목의 키 입력은 그 값과 무관하게 그대로 동작한다.
스크래치 카드와 쿠폰 디자인은 뭐가 다른가?
다르지 않다 — 스크래치 카드는 쿠폰 디자인 9종 — 도장부터 돌림판까지 복붙 코드에 속한 인터랙션 하나이고, 은박을 지우는 CanvasRenderingContext2D 계산과 destination-out 합성 모드만 다를 뿐 카드를 열었을 때 보상을 보여주는 흐름은 같다. 다만 스크래치 카드 디자인은 긁는 동작 자체가 콘텐츠라, 값이 바뀔 때마다 화면을 다시 그리는 requestAnimationFrame 루프가 카드가 열릴 때까지 계속 돈다는 점에서 정적인 도장·돌림판과 다르다. 열림 뒤의 반응 연출은 마이크로 인터랙션 사이트 UI 패턴 9종 — 토스트부터 스크롤 스파이까지의 토스트·배지 패턴과 같은 축으로 이어진다.
스크래치 카드 리빌 아홉 가지에 대해 자주 나오는 질문 셋
아홉 항목 모두 마우스로도 스크래치 카드 긁기를 테스트할 수 있나요?
된다. 아홉 항목 모두 포인터 이벤트 하나로 마우스·터치·펜 입력을 함께 받고, 05 항목의 pointers 맵도 마우스처럼 입력이 하나뿐이면 항목 하나만 채운 채 똑같이 동작한다.
은박에 실제 이미지나 로고를 쓰지 않고도 질감이 나나요?
된다. 02 항목처럼 valueNoise2D 값-노이즈로 픽셀 밝기를 계산해 은박 표면을 그리기 때문에, 외부 이미지 파일 없이도 시드값만 바꾸면 매번 다른 무늬가 나온다.
카드를 한 번 다 긁고 나면 다시 긁을 수 있나요?
없다. 아홉 항목 모두 openCard가 opened 플래그를 세운 뒤엔 if (opened) return으로 이후 입력을 무시해, 한 번 연 카드는 새로고침 전까지 다시 닫히지 않는다.
